LT3579

6A Boost/Inverting DC/DC Converter with Fault Protection

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 16
1ku List Price Starting From $3.96
Features
  • 6A, 42V Combined Power Switch
  • Output Short Circuit Protection
  • Wide Input Range: 2.5V to 16V Operating, 40V Maximum Transient
  • LT3579-1: Dual-Phase Capable
  • Master/Slave (3.4A/2.6A) Switch Design
  • User Configurable Undervoltage Lockout
  • Easily Configurable as a Boost, SEPIC, Inverting, or
  • Flyback Converter
  • Low VCESAT Switch: 250mV at 5.5A (Typical)
  • Can Be Synchronized to External Clock
  • Can Synchronize other Switching Regulators
  • High Gain SHDN Pin Accepts Slowly Varying Input Signals

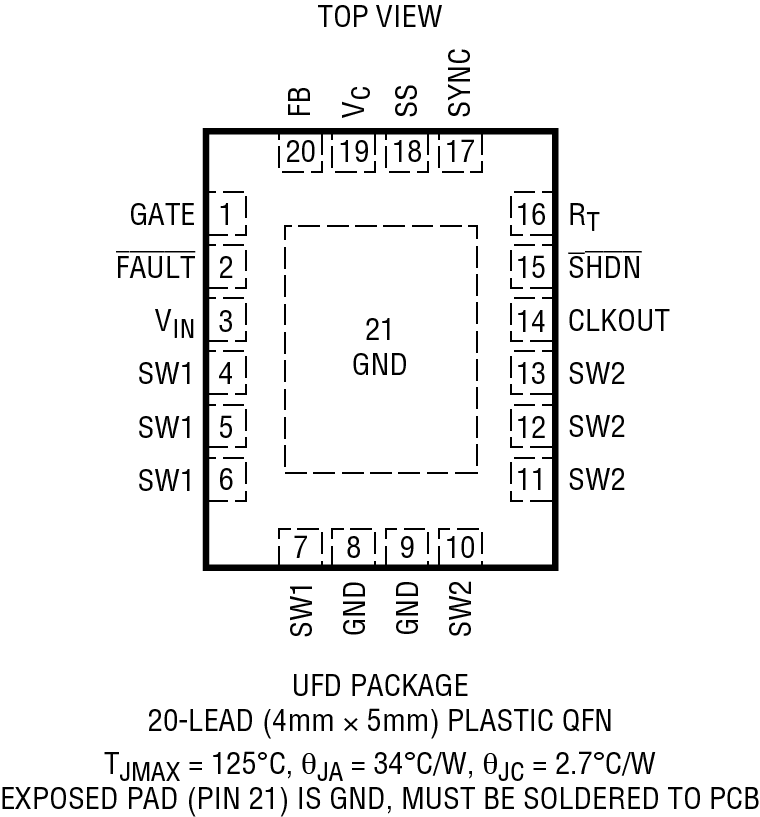

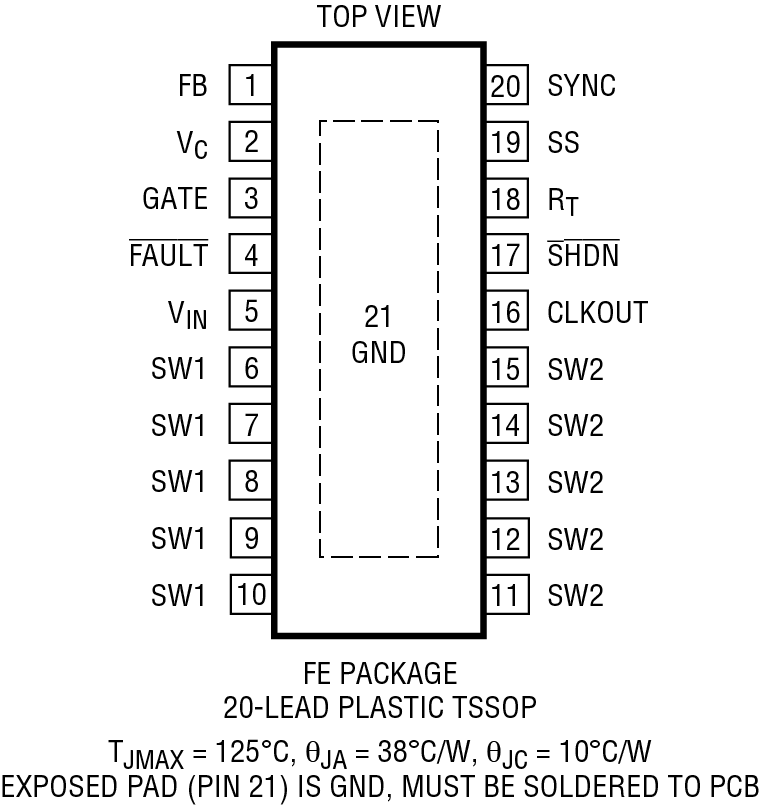

  • 20-Lead TSSOP and 20-Pin 4mm × 5mm QFN Packages
Additional Details
show more Icon

The LT3579 is a PWM DC/DC converter with built-in fault protection features to aid in protecting against output shorts, input/output overvoltage, and overtemperature conditions. The part consists of a 42V master switch, and a 42V slave switch that can be tied together for a total current limit of 6A.

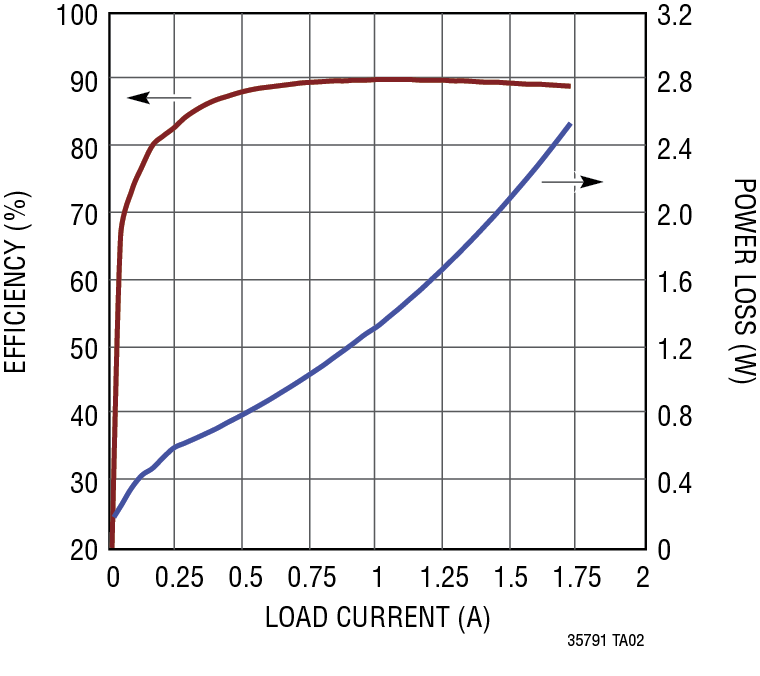

The LT3579 is ideal for many local power supply designs. It can be easily configured in Boost, SEPIC, Inverting, or Flyback configurations, and is capable of generating 12V at 1.7A, or –12V at 1.2A from a 5V input. In addition, the LT3579’s slave switch allows the part to be configured in high voltage, high power charge pump topologies that are very efficient and require fewer components than traditional circuits.

The LT3579’s switching frequency range can be set between 200kHz and 2.5MHz. The part may be clocked internally at a frequency set by the resistor from the RT pin to ground, or it may be synchronized to an external clock. A buffered version of the clock signal is driven out of the CLKOUT pin, and may be used to synchronize other compatible switching regulator ICs to the LT3579.

The LT3579 also features innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function. Additional features such as frequency foldback and soft-start are integrated. The LT3579 is available in 20-lead TSSOP and 20-pin 4mm × 5mm QFN packages.

Applications

  • Local Power Supply
  • Vacuum Fluorescent Display (VFD) Bias Supplies
  • TFT-LCD Bias Supplies
  • Automotive Engine Control Unit (ECU) Power
Part Models 16
1ku List Price Starting From $3.96

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3579EFE#PBF
  • HTML
  • HTML
LT3579EFE#TRPBF
  • HTML
  • HTML
LT3579EFE-1#PBF
  • HTML
  • HTML
LT3579EFE-1#TRPBF
  • HTML
  • HTML
LT3579EUFD#PBF
  • HTML
  • HTML
LT3579EUFD#TRPBF
  • HTML
  • HTML
LT3579EUFD-1#PBF
  • HTML
  • HTML
LT3579EUFD-1#TRPBF
  • HTML
  • HTML
LT3579IFE#PBF
  • HTML
  • HTML
LT3579IFE#TRPBF
  • HTML
  • HTML
LT3579IFE-1#PBF
  • HTML
  • HTML
LT3579IFE-1#TRPBF
  • HTML
  • HTML
LT3579IUFD#PBF
  • HTML
  • HTML
LT3579IUFD#TRPBF
  • HTML
  • HTML
LT3579IUFD-1#PBF
  • HTML
  • HTML
LT3579IUFD-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3579EFE#PBF

PRODUCTION

LT3579EFE#TRPBF

PRODUCTION

LT3579EFE-1#PBF

PRODUCTION

LT3579EFE-1#TRPBF

PRODUCTION

LT3579IFE#PBF

PRODUCTION

LT3579IFE#TRPBF

PRODUCTION

LT3579IFE-1#PBF

PRODUCTION

LT3579IFE-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3579EFE#PBF

PRODUCTION

LT3579EFE#TRPBF

PRODUCTION

LT3579EFE-1#PBF

PRODUCTION

LT3579EFE-1#TRPBF

PRODUCTION

LT3579IFE#PBF

PRODUCTION

LT3579IFE#TRPBF

PRODUCTION

LT3579IFE-1#PBF

PRODUCTION

LT3579IFE-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

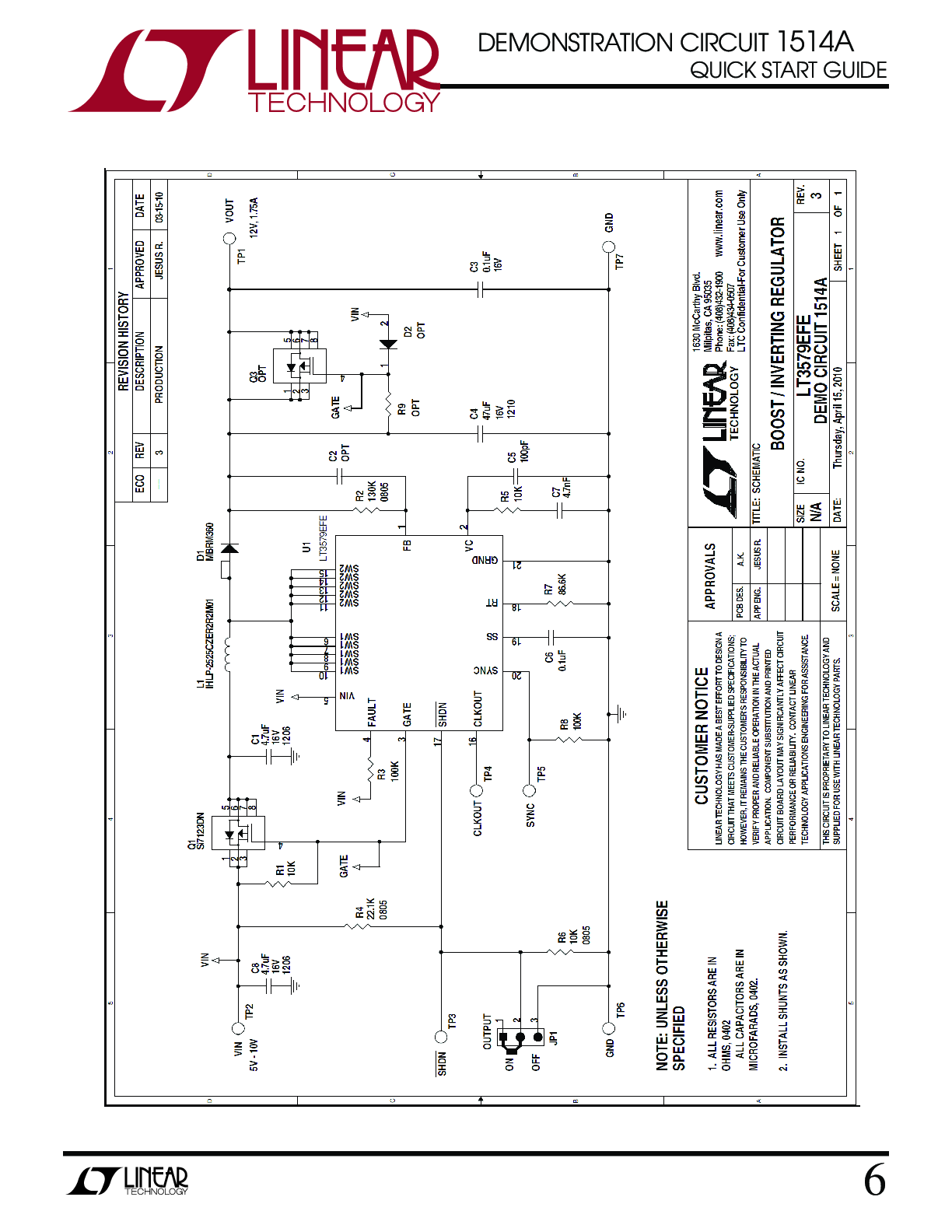

Evaluation Kits 2

reference details image

DC1661A

LT3579EFE/LT3579EFE-1 Demo Board | 2 Paralleled LT3579's, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 3.5A

zoom

DC1661A

LT3579EFE/LT3579EFE-1 Demo Board | 2 Paralleled LT3579's, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 3.5A

LT3579EFE/LT3579EFE-1 Demo Board | 2 Paralleled LT3579's, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 3.5A

Product Detail

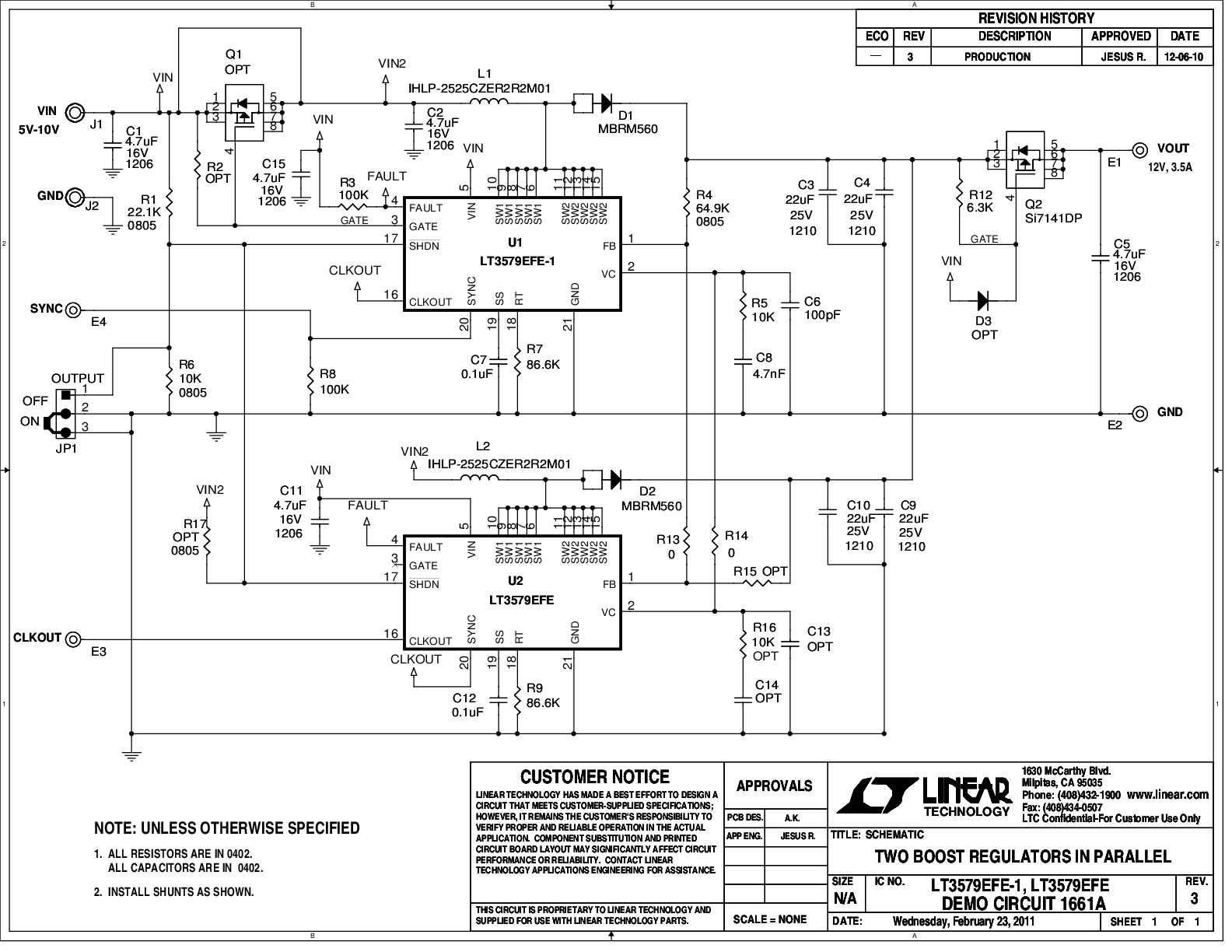

Demonstration circuit 1661A features the LT3579 and LT3579-1 in a parallel boost regulator configuration. The circuit is designed to convert a 5V to 10V input source to 12V at 3.5A. DC1661A is designed to survive output short circuit events with an external disconnect MOSFET at the output as default.
