Overview
Features and Benefits
- Wide Input Voltage Range: 3V to 40V
- Single Feedback Pin for Positive or Negative Output Voltage
- Internal 5A/40V Power Switch
- Current Mode Control Provides Excellent Transient Response
- Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
- Synchronizable to an External Clock
- Low Shutdown Current < 1μA
- Internal 5.2V Low Dropout Voltage Regulator
- Programmable Input Undervoltage Lockout with Hysteresis
- Programmable Soft-Start
- Thermally Enhanced QFN (5mm × 6mm) Package
Product Details
The LT3957 is a wide input range, current mode DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 40V at 5A and driven from an internal regulated 5.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.
The operating frequency of LT3957 can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 3V, and a low shutdown quiescent current of less than 1μA, make the LT3957 ideally suited for battery-powered systems.
The LT3957 features soft-start and frequency foldback functions to limit inductor current during start-up.
| Features | |
| LT3957 | - |
| LT3957A | Improved Load Transient Performance |
Applications
- Automotive
- Telecom
- Industrial
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R530 Reliability Data3/26/2018
-

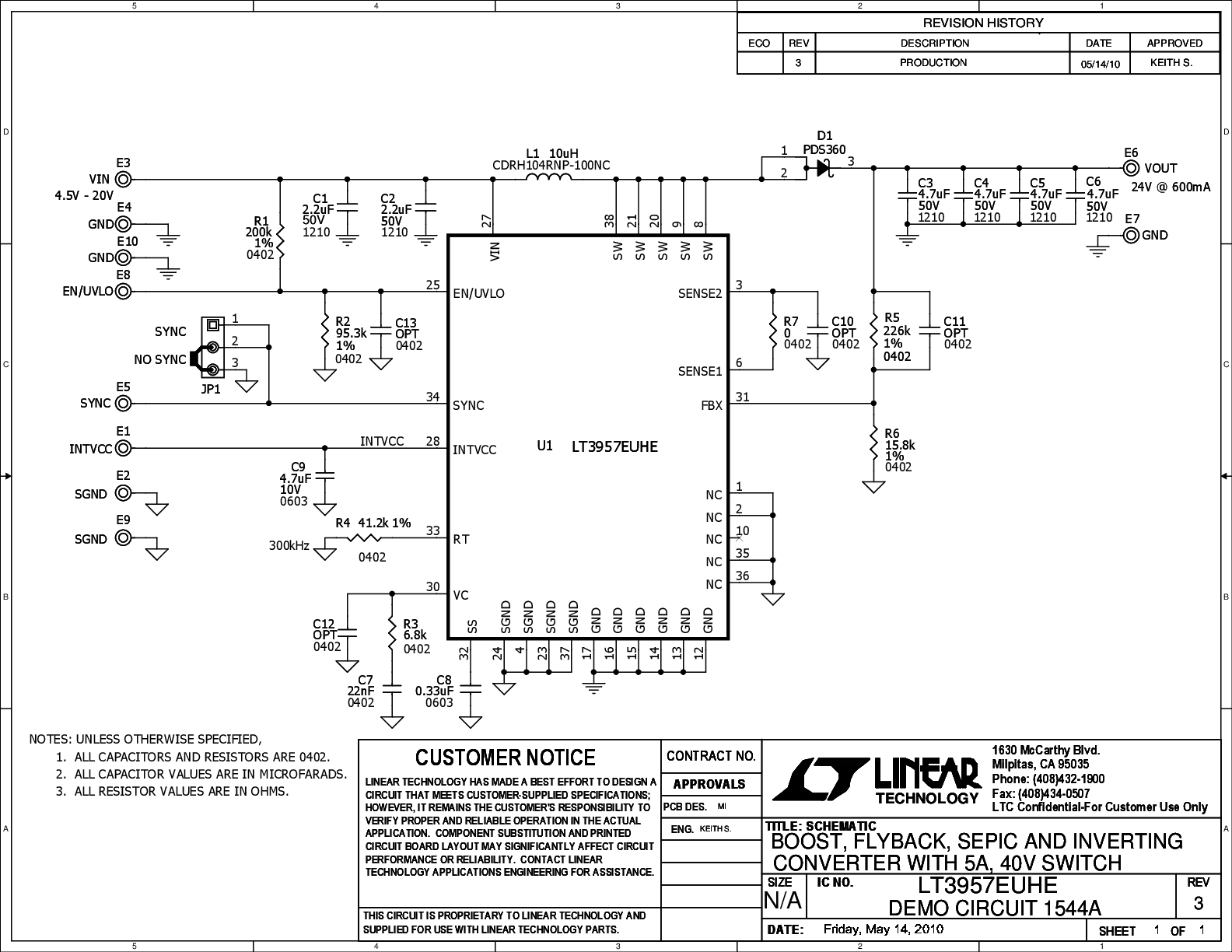

DC1544A - Demo Manual8/25/2010
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT3957
LT3957A
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT3957EUHE#PBF | Material Declaration | Reliability Data | 36-Lead QFN (5mm x 6mm x 0.75mm w/ EP) | |
| LT3957EUHE#TRPBF | Material Declaration | Reliability Data | 36-Lead QFN (5mm x 6mm x 0.75mm w/ EP) | |
| LT3957IUHE#PBF | Material Declaration | Reliability Data | 36-Lead QFN (5mm x 6mm x 0.75mm w/ EP) | |
| LT3957IUHE#TRPBF | Material Declaration | Reliability Data | 36-Lead QFN (5mm x 6mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R530 Reliability Data |
