LT1224

Very High Speed Operational Amplifier

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price Starting From $3.49

Features

Unity-Gain Stable
45MHz Gain-Bandwidth
400V/µs Slew Rate
7V/mV DC Gain: R_L = 500Ω
Maximum Input Offset Voltage: 2mV
±12V Minimum Output Swing into 500Ω
Wide Supply Range: ±2.5V to ±15V
7mA Supply Current
90ns Settling Time to 0.1%, 10V Step
Drives All Capacitive Loads

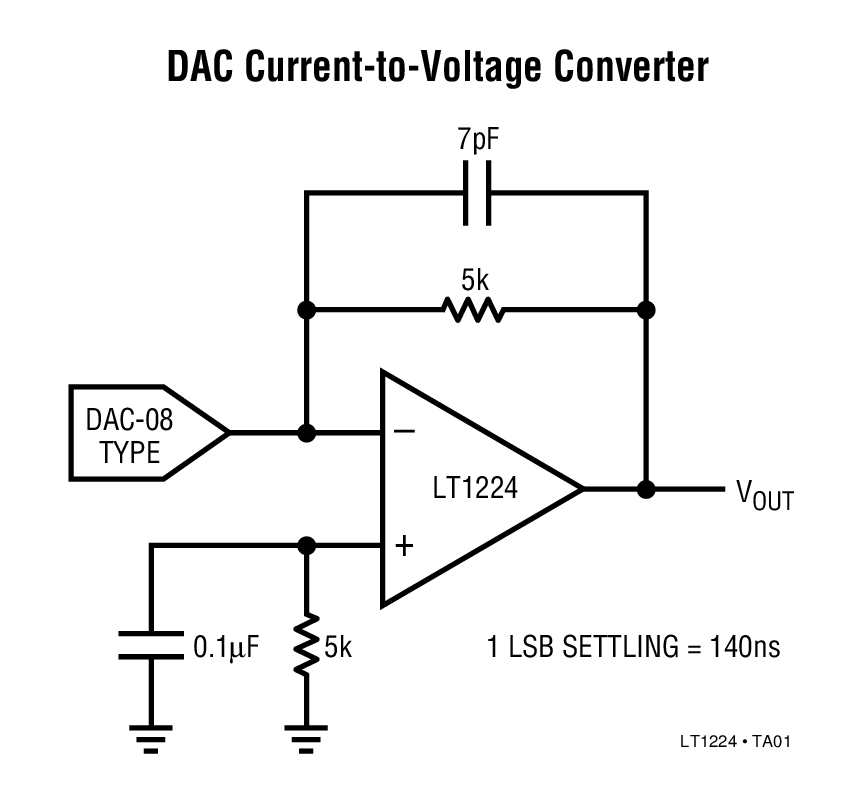

Additional Details

The LT1224 is a very high speed operational amplifier with excellent DC performance. The LT1224 features reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.

The LT1224 is a member of a family of fast, high performance amplifiers that employ our advanced bipolar complementary processing.

Applications

Wideband Amplifiers
Buffers
Active Filters
Video and RF Amplification
Cable Drivers
Data Acquisition Systems
