Overview

Features and Benefits

  • Differential or Single-Ended Gain Block (Adjustable)

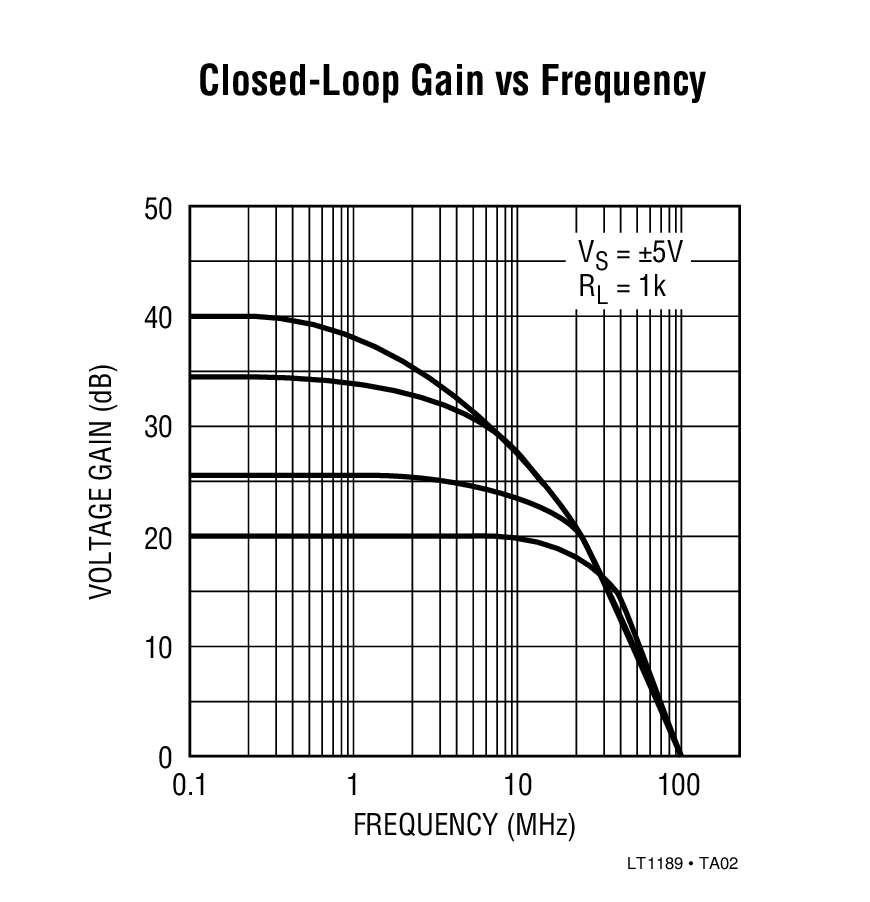

  • -3dB Bandwidth, AV = ±10: 35MHz
  • Slew Rate: 220V/µs
  • Low Supply Current: 13mA
  • Output Current: ± 20mA
  • CMRR at 10MHz: 48dB
  • LT1193 Pin Out
  • Low Cost
  • Single 5V Operation

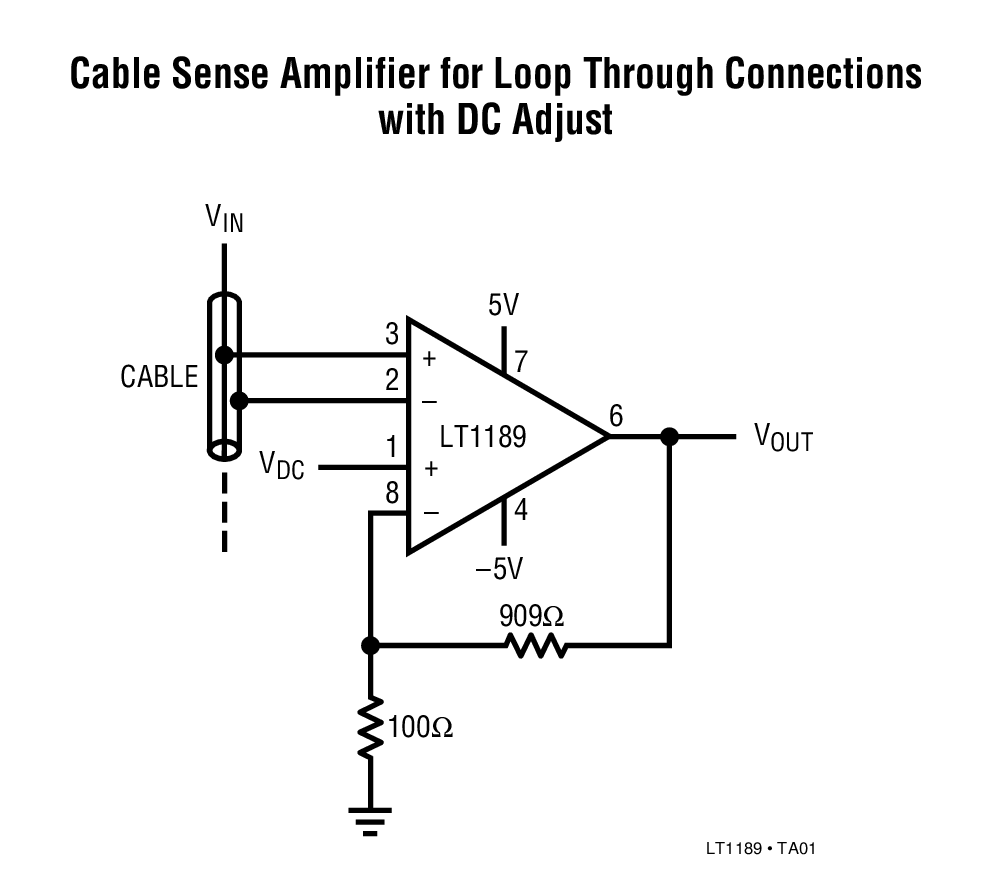

  • Drives Cables Directly
  • Output Shutdown

Product Details

The LT1189 is a difference amplifier optimized for operation on ±5V, or a single 5V supply, and gain ≥10. This versatile amplifier features uncommitted high input impedance (+) and (–) inputs, and can be used in differential or single-ended configurations. Additionally, a second set of inputs give gain adjustment and DC control to the difference amplifier.

The LT1189’s high slew rate, 220V/µs, wide bandwidth, 35MHz, and ±20mA output current require only 13mA of supply current. The shutdown feature reduces the power dissipation to a mere 15mW, and allows multiple ers to drive the same cable.

The LT1189 is a low power, gain of 10 stable version of the popular LT1193, and is available in 8-pin mini DIPs and SO packages. For lower gain applications see the LT1187 data sheet.

Applications

  • Line Receivers
  • Video Signal Processing
  • Cable Drivers
  • Tape and Disc Drive Systems

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Documentation & Resources

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LT1189

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

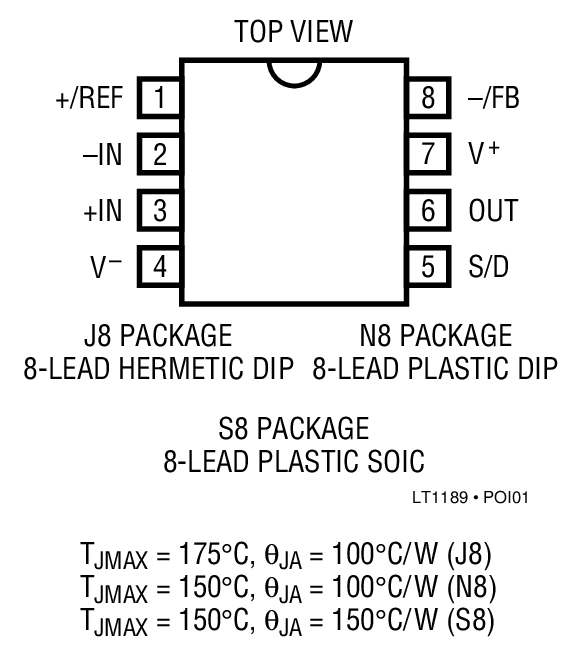

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT1189CN8#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)
LT1189CS8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1189CS8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
Wafer Fabrication Data R183 Reliability Data
