Features and Benefits
- Differential or Single-Ended Gain Block (Adjustable)

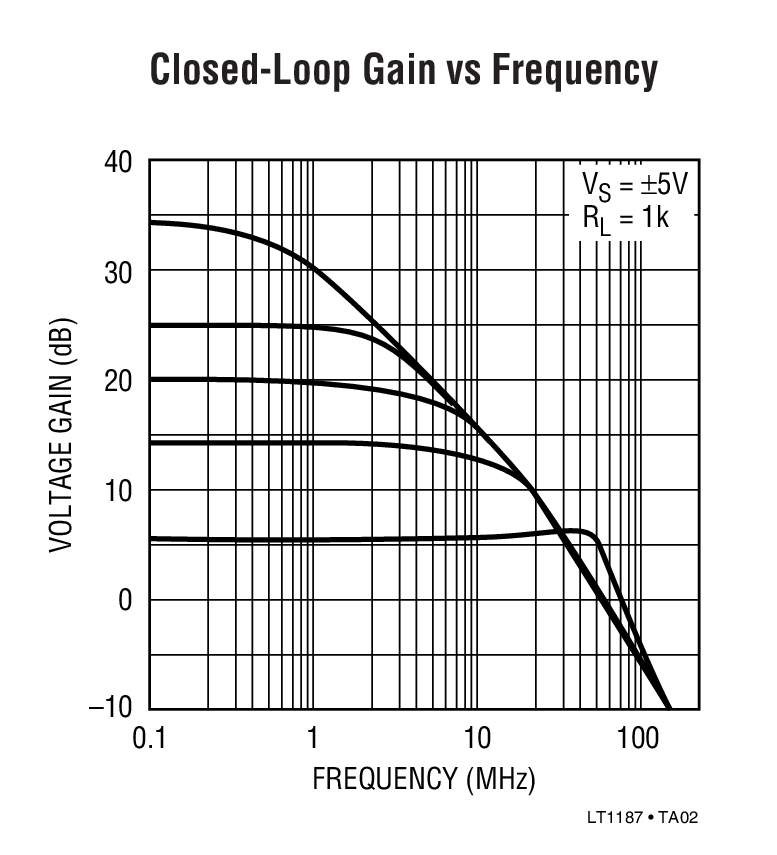

- –3dB Bandwidth, AV = ±2: 50MHz
- Slew Rate: 165V/µs
- Low Supply Current: 13mA
- Output Current: ±20mA
- CMRR at 10MHz: 40dB
- LT1193 Pin Compatible
- Low Cost
- Single 5V Operation
- Drives Cables Directly
- Output Shutdown

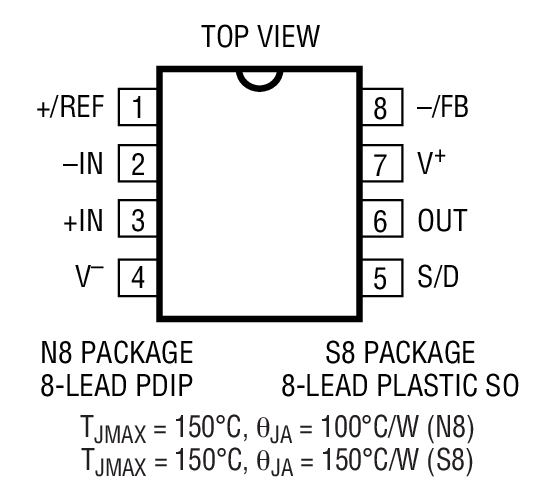

- Available in 8-Lead PDIP and SO Packages
The LT1187 is a difference amplifier optimized for operation on ±5V, or a single 5V supply and gain ≥2. This versatile amplifier features uncommitted high input impedance (+) and (–) inputs, and can be used in differential or single-ended configurations. Additionally, a second set of inputs give gain adjustment and DC control to the difference amplifier.
The LT1187’s high slew rate, 165V/μs, wide bandwidth, 50MHz, and ±20mA output current require only 13mA of supply current. The shutdown feature reduces the power dissipation to a mere 15mW and allows multiple amplifiers to drive the same cable.
The LT1187 is a low power version of the popular LT1193, and is available in 8-pin miniDIPs and SO packages. For applications with gains of 10 or more, see the LT1189 data sheet.
- Line Receivers
- Video Signal Processing
- Cable Drivers
- Tape and Disc Drive Systems
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
R183 Reliability Data3/22/2018
DC417B - Demo Manual2/1/2012
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT1187CN8#PBF||Material Declaration||Reliability Data||8-Lead PDIP (Narrow 0.3 Inch)|
|LT1187CS8#PBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|LT1187CS8#TRPBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|Wafer Fabrication Data||R183 Reliability Data|
