HMC994

Obsolete

HMC994 / HMC994LP5E

GaAs, PHEMT, MMIC, Half-Watt Power Amplifier Chip or Power Amplifier, DC to 28 GHz or 30 GHz

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: price unavailable

Viewing:

Overview

P1dB output power: +27 dBm, +28 dBm
PSAT output power: +29 dBm, +30 dBm
Gain: 13 dB, 14 dB
Output IP3: +36 dBm, +38 dBm

Supply voltage: +10 V at 250 mA
50 Ω matched input/output

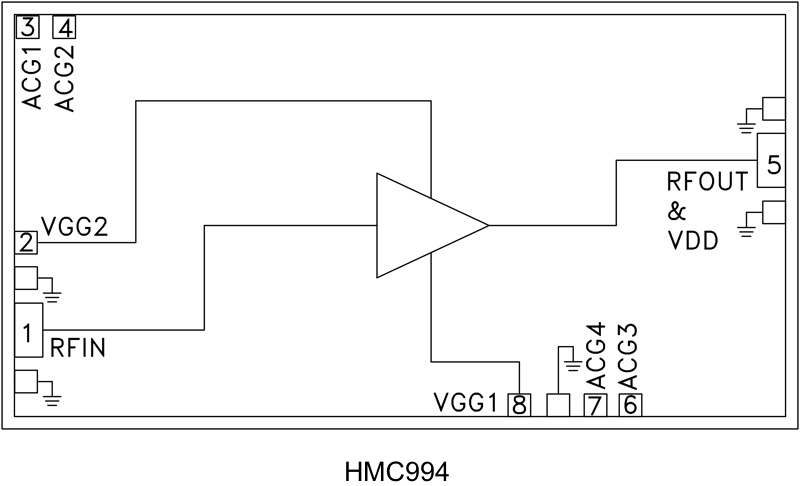

Die size: 2.82 × 1.5 × 0.1 mm

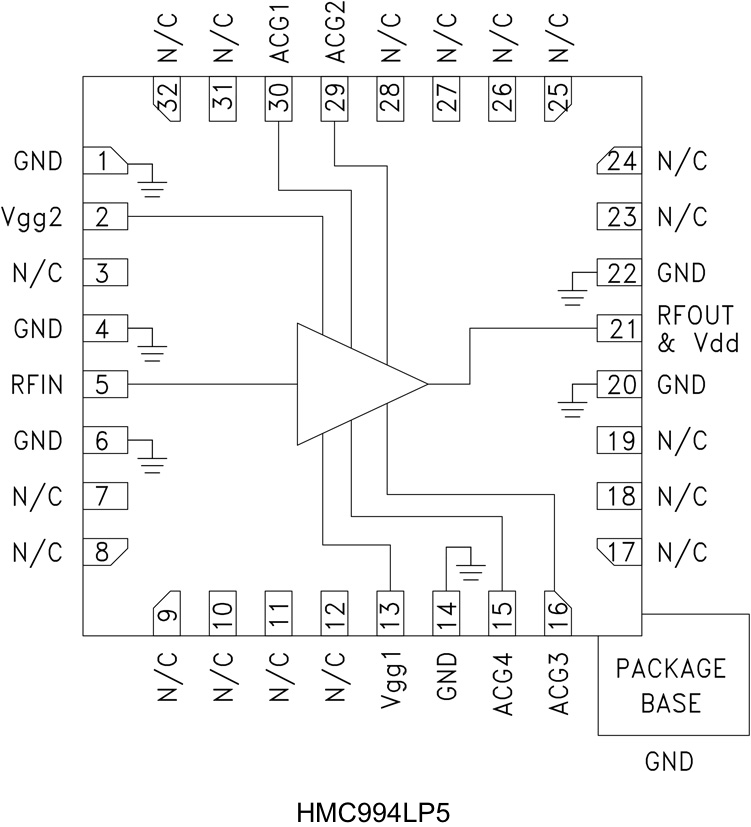

32-lead, 5 × 5 mm, surface-mount technology (SMT) package

The HMC994 devices are GaAs, monolithic microwave integrated circuit (MMIC), PHEMT distributed power amplifiers which operate between dc and 28 GHz or dc and 30 GHz. These power amplifiers provide 13 dB or 14 dB of gain, +36 dB or +38 dB of output IP3, and +27 dBm or +28 dBm of output power at 1 dB gain compression, while requiring 250 mA from a +10 V supply. The gain slopes of these devices make them ideal for EW, ECM, radar, and test equipment applications. The inputs/outputs of these devices are internally matched to 50 Ω for ease of integration into multichip modules (MCMs).

The power amplifier is available in a leadless, QFN, 5 × 5 mm, surface-mount package. All data is taken with the chip connected via two 0.025 mm (1 mil) wire bonds of minimal 0.31 (12 mils) length.

Applications

Test instrumentation
Microwave radio and VSAT
Military and space
Telecom infrastructure
Fiber optics

Suggested Replacement Parts

Part Models: 4
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC994LP5E Data Sheets 04/17/2015

Obsolete Data Sheet 2

HMC994 Die Data Sheets 04/17/2015

HMC994LP5E: GaAs pHEMT MMIC Power Amplifier, DC - 28 GHz Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC994	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC994-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC994LP5E	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC994LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC994
HMC994LP5E
HMC994LP5ETR

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
HMC994APM5E		GaAs pHEMT MMIC Power Amplifier, DC - 28 GHz
HMC994A-DIE		GaAs pHEMT MMIC 0.5 Watt Power Amplifier, DC - 30 GHz
