Overview

Features and Benefits

  • Saturated Output Power:
    +34 dBm @ 24% PAE
  • High Output IP3: +41 dBm
  • High Gain: 21 dB
  • DC Supply: +5.5V @ 1200 mA
  • No External Matching Required
  • 32 Lead 5x5 mm SMT
    Package: 25 mm²

Product Details

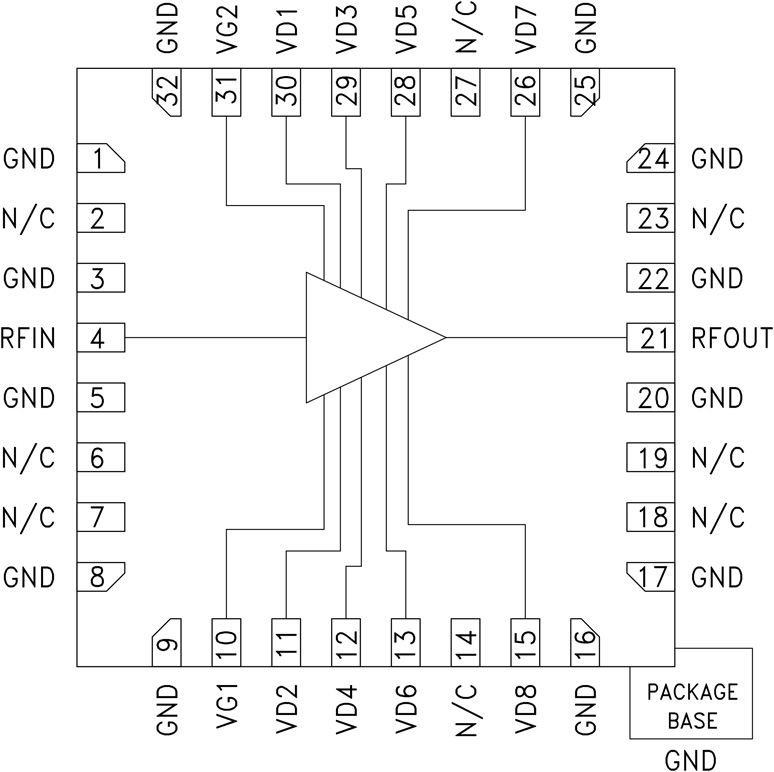

The HMC943LP5E is a four stage GaAs pHEMT MMIC 1.5 Watt Power Amplifier which operates between 24 and 31.5 GHz. The HMC943LP5E provides 21 dB of gain, and +34 dBm of saturated output power and 24% PAE from a +5.5V supply. The high output IP3 of +41 dBm makes the HMC943LP5E ideal for microwave radio applications. The HMC943LP5E amplifier I/Os are internally matched to 50 Ohms and is packaged in a leadless QFN 5x5 mm surface mount package and requires no external matching components.

Applications

  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • VSAT & SATCOM
  • Telecom Infrastructure
  • Military & Space
