HMC928

Obsolete

450° Analog Phase Shifter SMT, 2 - 4 GHz

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

Octave Bandwidth: 2 - 4 GHz
450° Phase Shift
Low Insertion Loss: 3.5 dB
Low Phase Error: ±5° Typ.

Single Positive Voltage Control

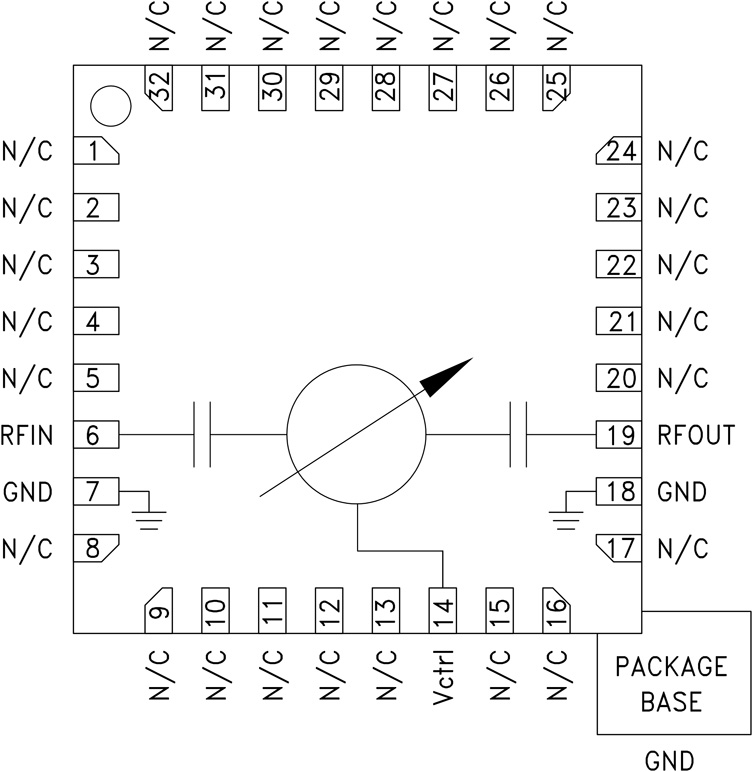

32 Lead 5x5 mm QFN Package: 25 mm²

The HMC928LP5E is an Analog Phase Shifter which is controlled via an analog control voltage from 0 to +13V. The HMC928LP5E provides a continuously variable phase shift of 0 to 450 degrees from 2 to 4 GHz, with extremely consistent low insertion loss versus phase shift and frequency. The high accuracy HMC928LP5E is monotonic with respect to control voltage and features a typical low phase error of ±5 degrees over an octave bandwidth. The HMC928LP5E is housed in an RoHS compliant 5x5 mm QFN leadless package.

Applications

EW Receivers
Military Radar
Test Equipment
Satellite Communications
Beamforming Modules

Suggested Replacement Parts

GaAs MMIC 6-Bit Digital Phase Shifter, 2.9 to 3.9 GHz

Part Models: 1
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC928 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC928LP5E	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC928LP5E	Obsolete	PDN15_0026_Form Material_Report
