HMC926
Obsolete
Part Details
- Gain Control Range (in 0.5 dB Steps):
@ 900 MHz, +6.5 to +38 dB
@ 1900 MHz, +1 to +32.5 dB
@ 2600 MHz, -4 to +27.5 dB - High Output IP3: +45 dBm
- Noise Figure: 4.4 dB
- Convenient Serial Control Interface
- ±0.25 dB Typical Step Error
- 32 Lead 5x5 mm QFN Package: 25 mm²

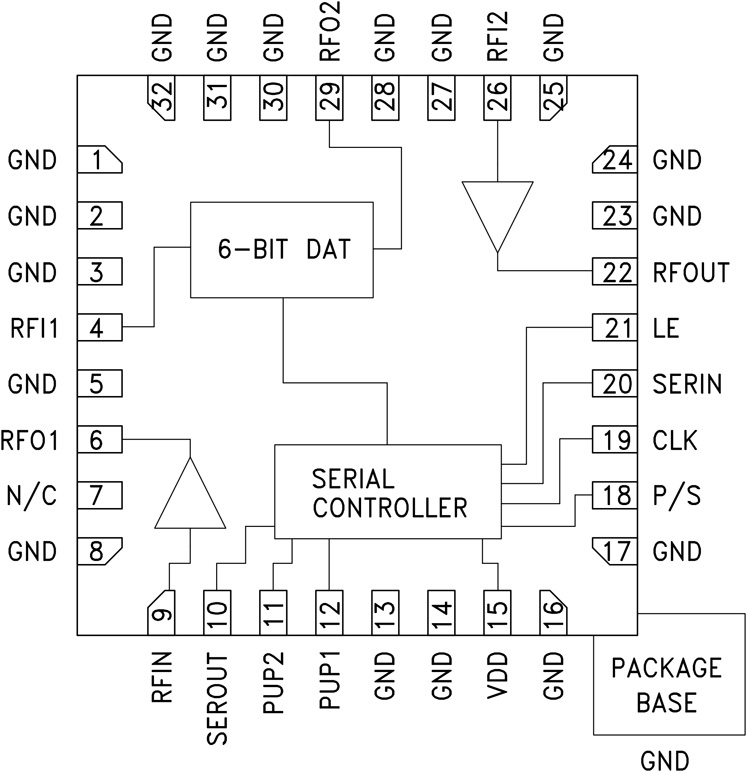

The HMC926LP5E is a digitally controlled variable gain amplifier which operates from 700 MHz to 2700 MHz, and can be programmed to provide between +6.5 dB to +38 dB of gain, in 0.5 dB steps at 900 MHz. Gain control range is from +1 dB to +32.5 dB at 1900 MHz and from -4 dB to +27.5 dB at 2600 MHz. The HMC926LP5E delivers noise figure of 4.4 dB in its maximum gain state, with output IP3 of up to +45 dBm. The HMC926LP5E features a serial only gain control interface, a user selectable power up state, and a serial output for cascading other Hittite serially controlled components.
Applications
- Cellular Infrastructure
- WiBro, WiMAX and LTE/4G
- Microwave Radio & VSAT
- Test Equipment and Sensors
- IF & RF Applications
Suggested Replacement Parts
0.5 dB LSB GaAs MMIC 6-Bit Digital Variable Gain Amplifier, DC - 5 GHz
Documentation
Obsolete Data Sheet 1
Quality Documentation 4
Tape & Reel Specification 1
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| HMC625B | RECOMMENDED FOR NEW DESIGNS |
0.5 dB LSB GaAs MMIC 6-Bit Digital Variable Gain Amplifier, DC - 5 GHz |
Evaluation Kits
HMC926LP5E Evaluation Board
