HMC8402-DIE

RECOMMENDED FOR NEW DESIGNS

2 GHz to 30 GHz, GaAs, pHEMT, MMIC, Low Noise Amplifier

Data Sheet (Rev. E) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Output power for 1 dB compression (P1dB): 21.5 dBm typical
Saturated output power (P_SAT): 22 dBm typical
Gain: 13.5 dB typical
Noise figure: 2 dB

Output third order intercept (IP3): 26 dBm typical
Supply voltage: 7 V at 68 mA
50 Ω matched input/output
Die size: 2.7 mm × 1.363 mm × 0.05 mm

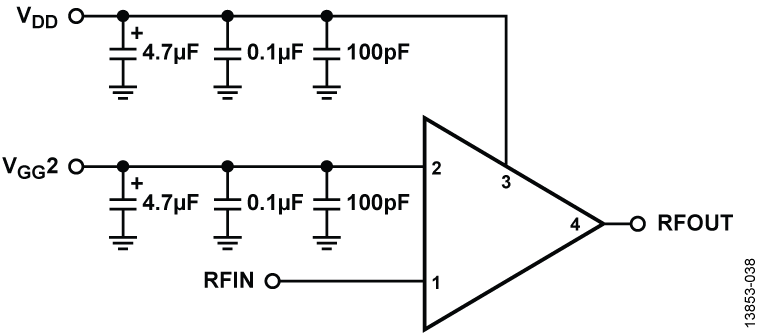

The HMC8402 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), low noise amplifier which operates between 2 GHz and 30 GHz. The amplifier provides 13.5 dB of gain, 2 dB noise figure, 26 dBm output IP3, and 21.5 dBm of output power at 1 dB gain compression while requiring 68 mA from a 7 V supply. The HMC8402 is self biased with only a single positive supply needed to achieve a drain current I_DQ of 68 mA.

The HMC8402 amplifier input/outputs are internally matched to 50 Ω facilitating integration into multichip modules (MCMs). All data is taken with the chip connected via two 0.025 mm (1 mil) wire bonds of minimal length 0.31 mm (12 mils).

APPLICATIONS

Test instrumentation
Microwave radios and very small aperture terminals (VSATs)
Military and space
Telecommunications infrastructure
Fiber optics

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC8402: 2 GHz to 30 GHz, GaAs, pHEMT, MMIC, Low Noise Amplifier Data Sheet (Rev.E) 07/28/2016

Application Note 4

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

AN-2622: Selecting an Analog Devices RF Low Noise Amplifier 09/04/2025

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8402	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC8402-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool

S-Parameter 1

HMC8402 S-Parameters
