Overview

Features and Benefits

  • High output power: 15 dBm (typical) at RFIN = 16 GHz
  • Low input power drive: 5 dBm (typical)
  • Fundamental RF input isolation at RF output: −23 dBc at RFOUT = 30 GHz
  • 16-terminal, 6 mm × 6 mm LCC_HS package, 36 mm2

Product Details

The HMC8342 is a gallium arsenide (GaAs), monolithic microware integrated circuit (MMIC), ×2 active broadband frequency multiplier. When driven by a 5 dBm signal, the multiplier provides 15 dBm typical output power. The output frequency range is from 22 GHz to 42 GHz, and the input fundamental and third harmonic isolations measured at the output are −23 dBc and −20 dBc, respectively, at an output frequency of 30 GHz. The HMC8342 is ideal for use in LO multiplier chains for point to point and VSAT radios, resulting in a reduced parts count vs. traditional design approaches.

APPLICATIONS

  • Clock generation
  • Point to point and very small aperture terminal (VSAT) radios
  • Test instrumentation
  • Military and space
  • Product Lifecycle icon-recommended Recommended for New Designs

    This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

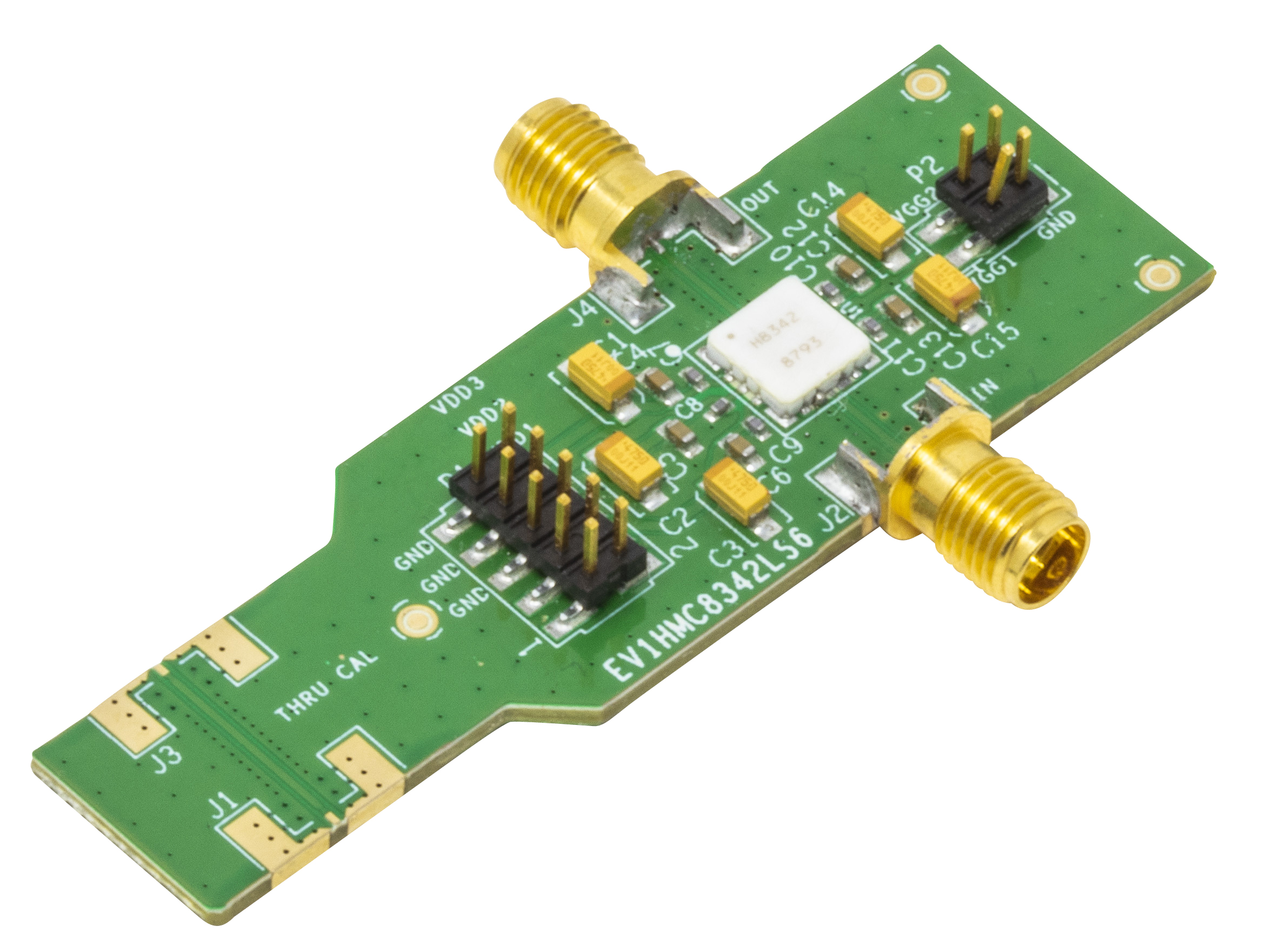

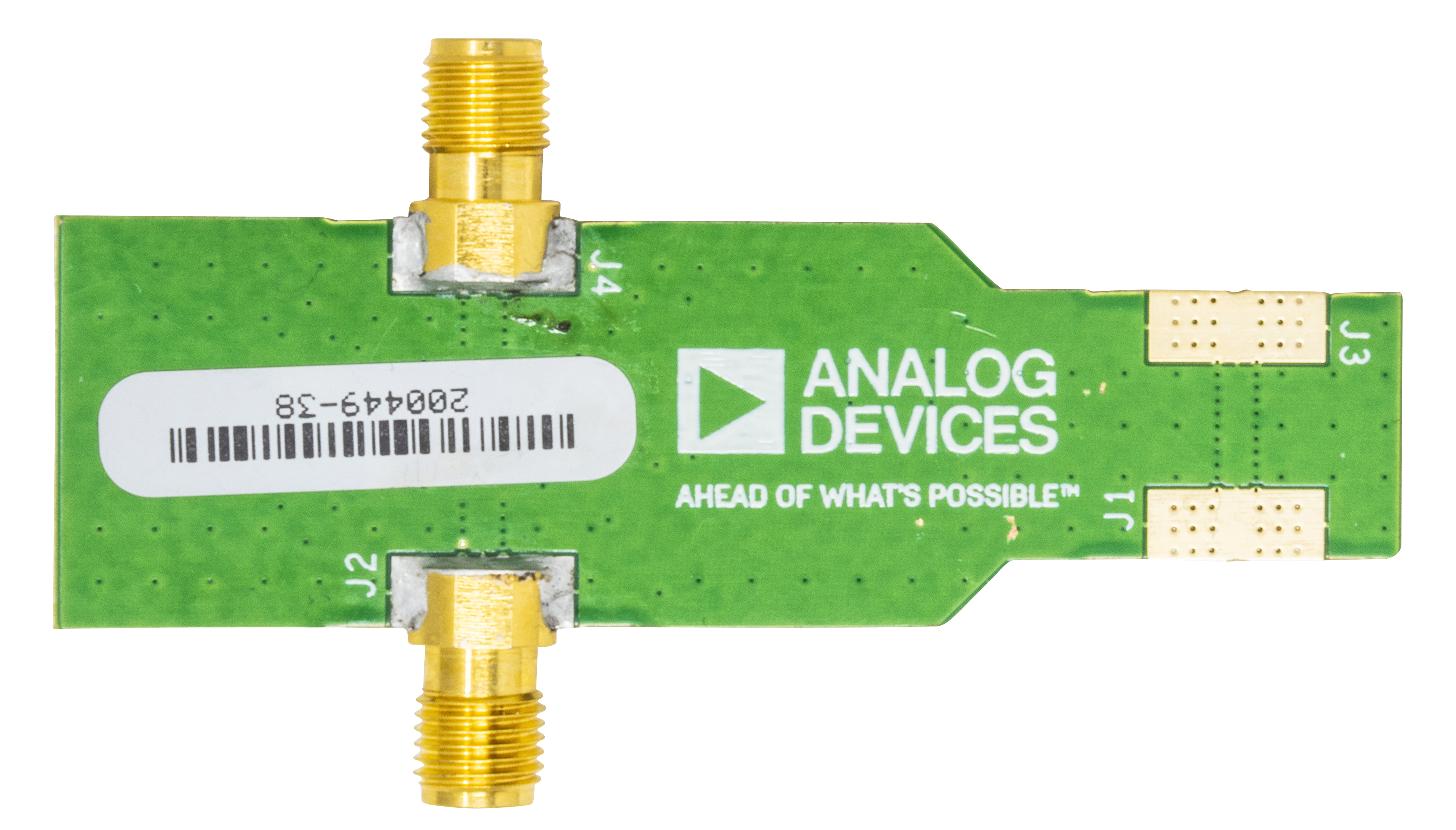

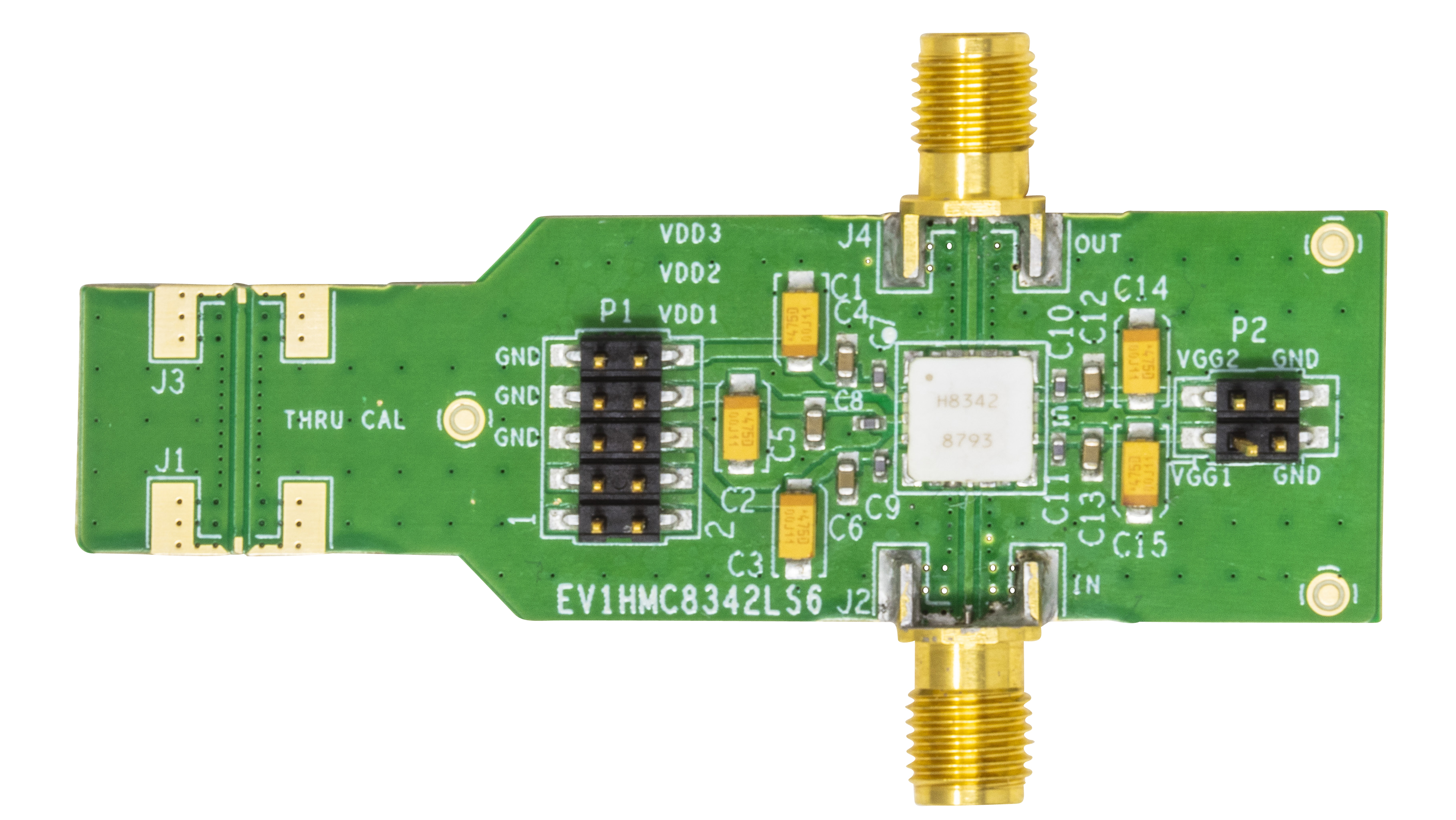

    Evaluation Kits (1)

    Product Recommendations

    HMC8342 Companion Parts

    Recommended PLL

    Recommended PLL with Integrated VCO

    Recommended VCOs

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

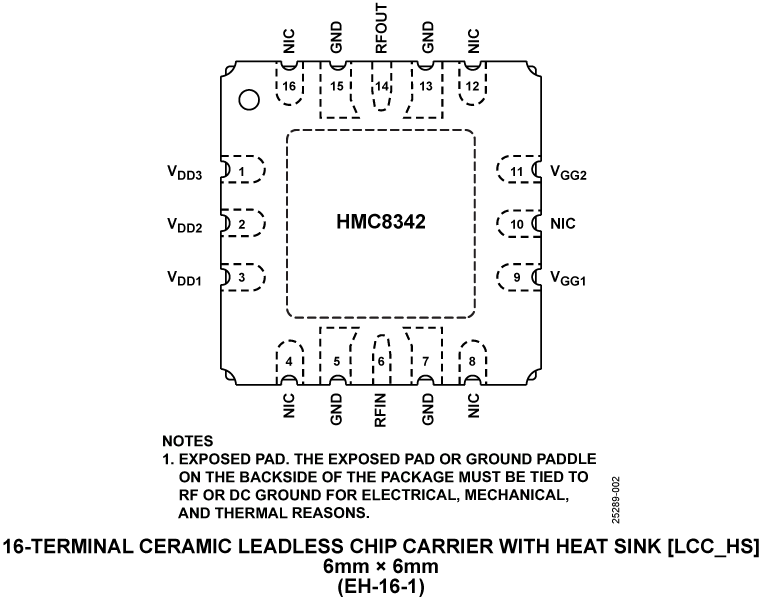

    HMC8342LS6 Material Declaration Reliability Data 16-Lead LCC (6mm x 6mm x 1.32mm w/EP)
    HMC8342LS6TR Material Declaration Reliability Data 16-Lead LCC (6mm x 6mm x 1.32mm w/EP)
