HMC830 Data Sheet4/22/2015PDF1M
Alternative Parts
Overview
Features and Benefits
- RF Bandwidth: 25 - 3000 MHz
- Maximum Phase Detector Rate 100 MHz
- Ultra Low Phase Noise -110 dBc/Hz in Band Typ.
- Figure of Merit (FOM) -230 dBc/Hz Integer
- 40 Lead 6 x 6 mm SMT Package: 36 mm²
Product Details
The HMC830LP6GE is a low noise, wideband, Fractional-N Phase-Locked-Loop (PLL) that features an integrated Voltage Controlled Oscillator (VCO) with a fundamental frequency of 1500 MHz - 3000 MHz, and an integrated VCO Output Divider (divide by 1/2/4/6.../60/62), that together allow the HMC830LP6GE to generate frequencies from 25 MHz to 3000 MHz. The integrated Phase Detector (PD) and delta-sigma modulator, capable of operating at up to 100 MHz, permit wider loop-bandwidths with excellent spectral performance.
The HMC830LP6GE features industry leading phase noise and spurious performance, across all frequencies, that enable it to minimize blocker effects, and improve receiver sensitivity and transmitter spectral purity. Its superior performance makes it the ideal device for multi channel multi standard wide band transceivers. HMC830LP6GE can be used as an LO for RF mixers, a clock source for high-frequency data-converters, or a tunable reference source for ultra-low spurious applications.
Additional features of the HMC830LP6GE include RF output power control from 0 to 9 dB (3 dB steps), output Mute function, and a delta-sigma modulator Exact Frequency Mode which enables users to generate output frequencies with 0 Hz frequency error.
For theory of operation and register map refer to the "PLLs with Integrated VCOs - RF VCOs Operating Guide" Operating Guide.
Applications
- Cellular/4G Infrastructure
- Repeaters and Femtocells
- Communications Test Equipment
- CATV Equipment
- Phased Array Applications
- Very High Data Rate Radios
- Tunable Reference Source for
Spurious- Free Performance
Product Categories
Markets and Technologies
Comparable Parts Click to see all in Parametric Search
|
Part#
|
Freq Response RF (min)
|
Freq Response RF (max)
|
PFD (max)
|
|---|---|---|---|
|
53.125M
|
6.8G
|
125M
|
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

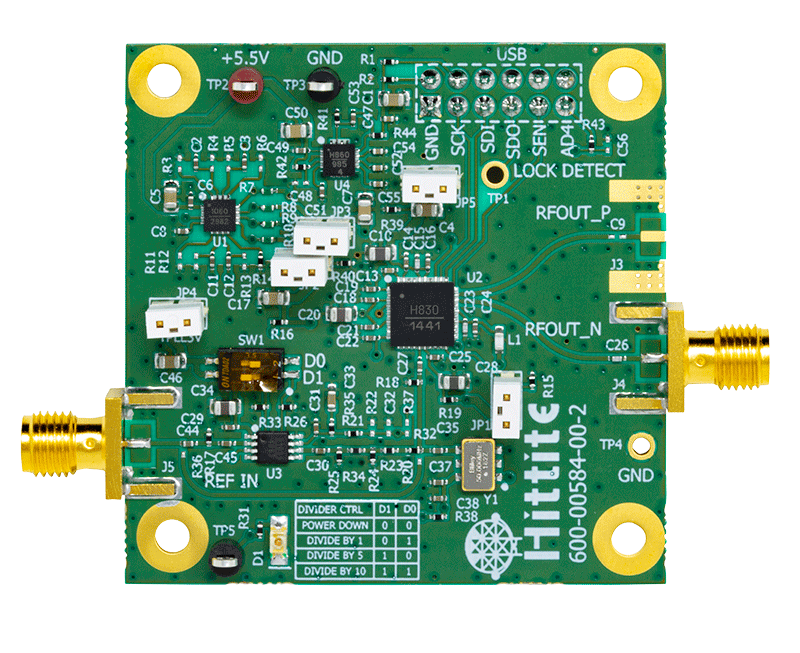

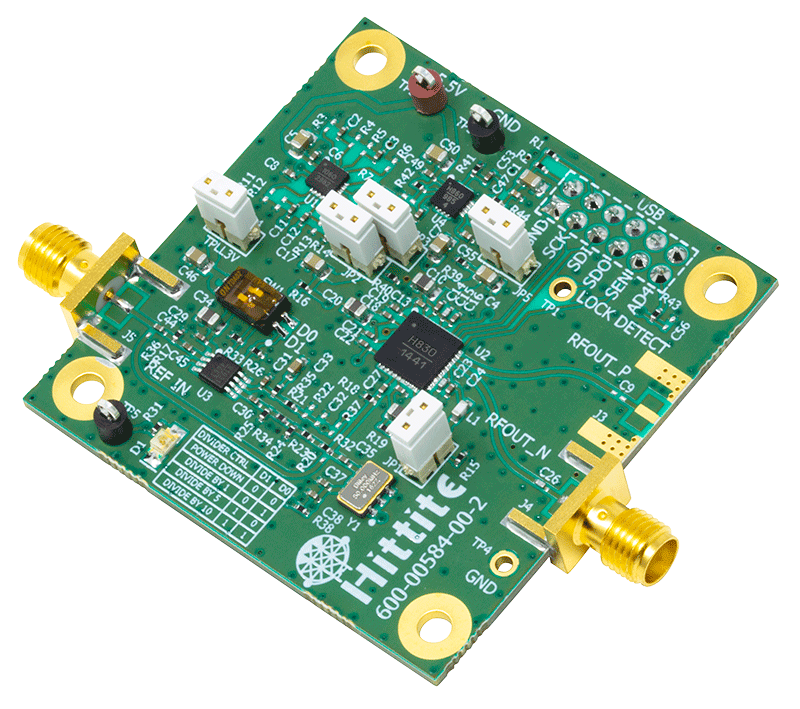

Evaluation Kits (1)
Documentation & Resources
-
PLL & PLLVCO Serial Programming Interface Mode Selection Application Note2/29/2016PDF1 M
-
Power-Up & Brown-Out Design Considerations for RF PLL+VCO Products Application Note2/29/2016PDF1 M
-
Wideband RF PLL+VCO and Clock Generation Products FAQs2/29/2016PDF397 K
-
Frequency Hopping with Hittite PLLVCOs Application Note2/29/2016PDF419 K
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
-
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/2017PDF0 M
-
Semiconductor Qualification Test Report: BiCMOS-A (QTR: 2013-00235)10/29/2015PDF816 K
-
Package/Assembly Qualification Test Report: LP6, LP6C, LP6G (QTR: 2014-00368)4/7/2015PDF864 K
-
HMC Legacy PCN: LP6CE and LP6GE QFN - Alternate assembly source11/30/2012PDF399K
-
LP6 Tape and Reel Outline Dimensions3/22/2019PDF514 K
-
PLL Frequency Synthesizer and ADIsimFrequencyPlanner3/3/2022 -
HMC830LP6GE11/28/2018
Tools & Simulations
IBIS Models
IBS
HMC830 IBIS Model
14.83 K
Design Tools
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
ADIsimFrequency Planner Tool
For those developers dealing with integer boundary spurs from Analog’s PLL synthesizers, the best solution is ADIsimFrequencyPlanner. The frequency planner quickly analyzes the PFD frequency for a user’s output requirements and then optimizes the frequency of each output to identify the highest contributing integer boundary spur performance.
Design Resources
