Features and Benefits
- RF Bandwidth: 860-1040, 1720-2080, 3440-4160 MHz
- Fractional or Integer Modes
- 19-Bit Prescaler
- Ultra Low Phase Noise -106 dBc/Hz in Band Typ.
- Figure of Merit (FOM) -227 dBc Integer
- 24-Bit Step Size, 3 Hz Resolution Typ.
- 200 MHz, 14-bit Reference Path Input
- Cycle Slip Prevention
- 40 Lead 6x6mm SMT Package: 36mm²

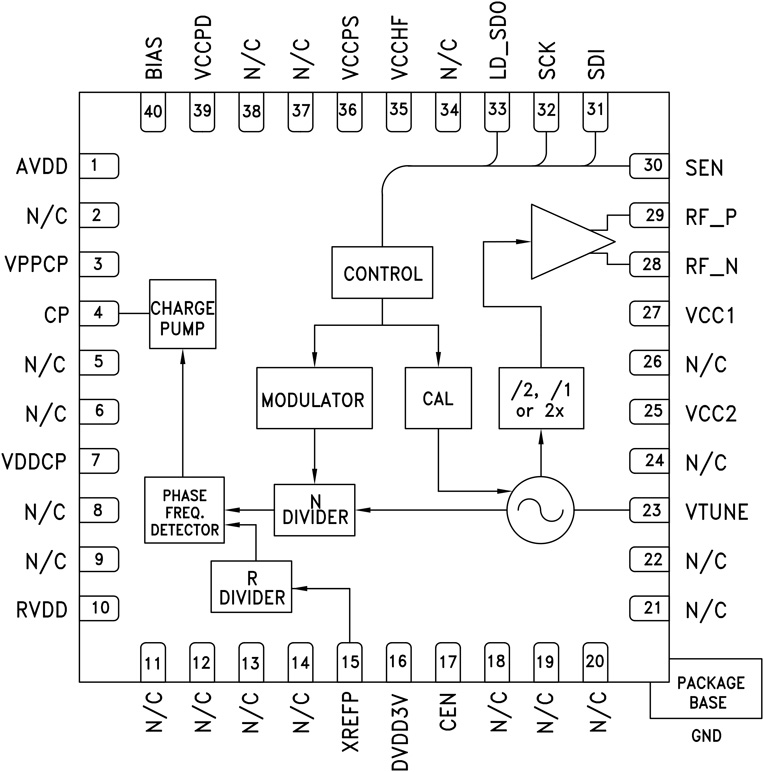

The HMC821LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an Integrated Voltage Controlled Oscillator (VCO). The synthesizer consists of an integrated low noise VCO with a triband output, an autocalibration subsystem for low voltage VCO tuning, a very low noise digital Phase Detector (PD), a precision controlled charge pump, a low noise reference path divider and a fractional divider.
The fractional synthesizer features an advanced delta-sigma modulator design that allows both ultra-fine step sizes and low spurious products. The phase detector (PD) features cycle slip prevention (CSP) technology to allow faster frequency hopping times. Ultra low in-close phase noise and low spurious also allows wider loop bandwidths for faster frequency hopping and low micro-phonics.
For theory of operation and register map refer to the "PLLs with Integrated VCO - RF VCOs" Operating Guide.
- Cellular/4G Infrastructure
- Repeaters and Femtocells
- Communications Test Equipment
- CATV Equipment
- Phased Array Applications
- DDS Replacement
- Very High Data Rate Radios
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

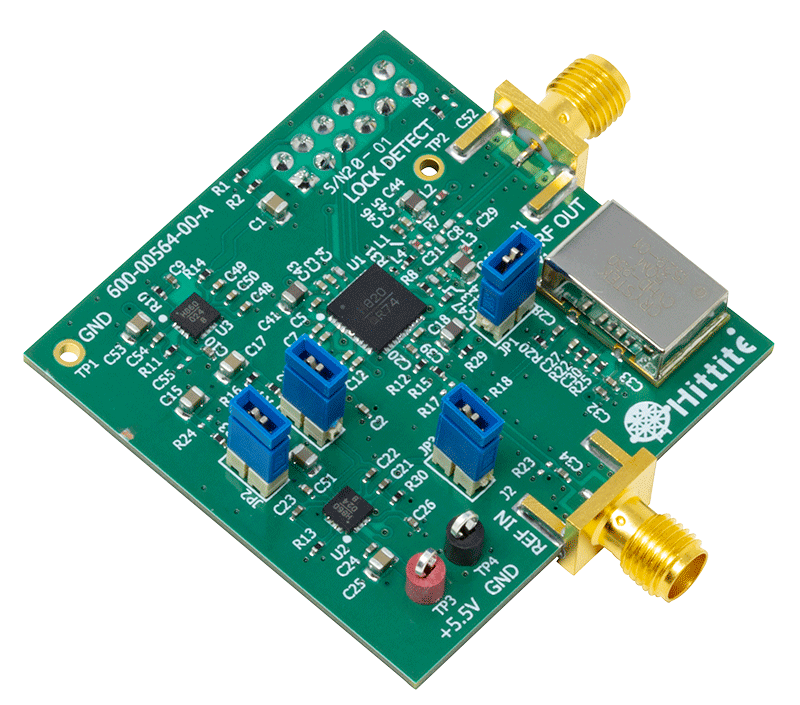

Evaluation Kits (1)
