HMC8108

RECOMMENDED FOR NEW DESIGNS

9 GHz to 10 GHz, X-Band, GaAs, MMIC, Low Noise Converter

Viewing:

Part Details

  • Conversion gain: 13 dB typical
  • Image rejection: 20 dBc typical
  • Noise figure: 2 dB typical
  • Input power for 1 dB compression: −4 dBm typical
  • Input third-order intercept: 6 dBm typical
  • Output saturated power: 10 dBm typical
  • LO leakage at the IF port: −20 dBm typical
  • LO leakage at the RF port: −37 dBm typical
  • 32-terminal, 5 mm × 5 mm, ceramic leadless chip carrier (LCC)
HMC8108
9 GHz to 10 GHz, X-Band, GaAs, MMIC, Low Noise Converter
HMC8108 Functional Block Diagram HMC8108 Pin Configuration HMC8108 Circuit Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1


Evaluation Kits

EVAL-HMC8108

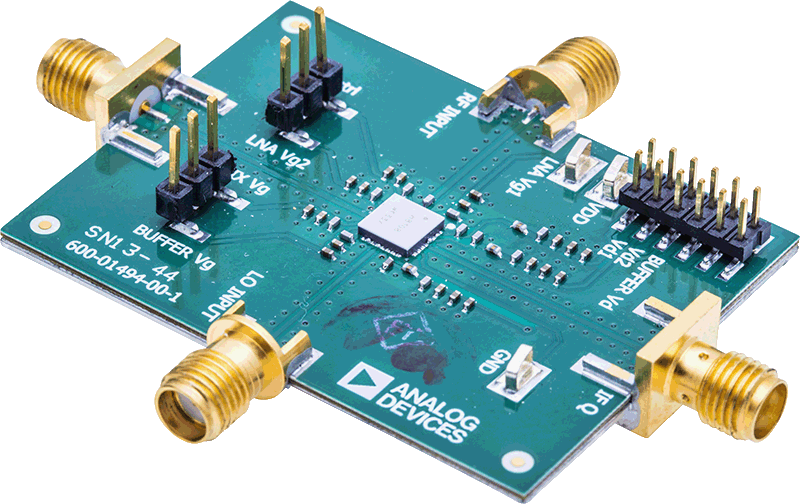

HMC8108 Evaluation Board

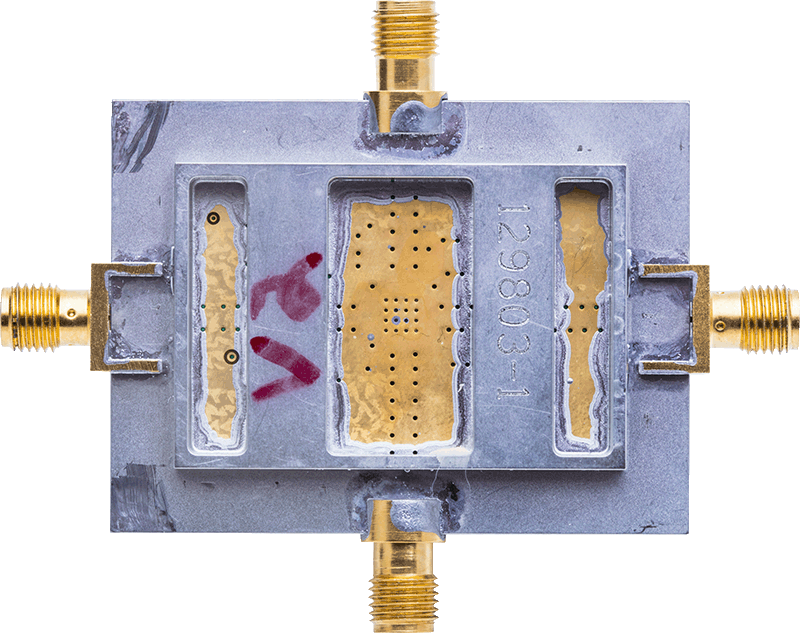

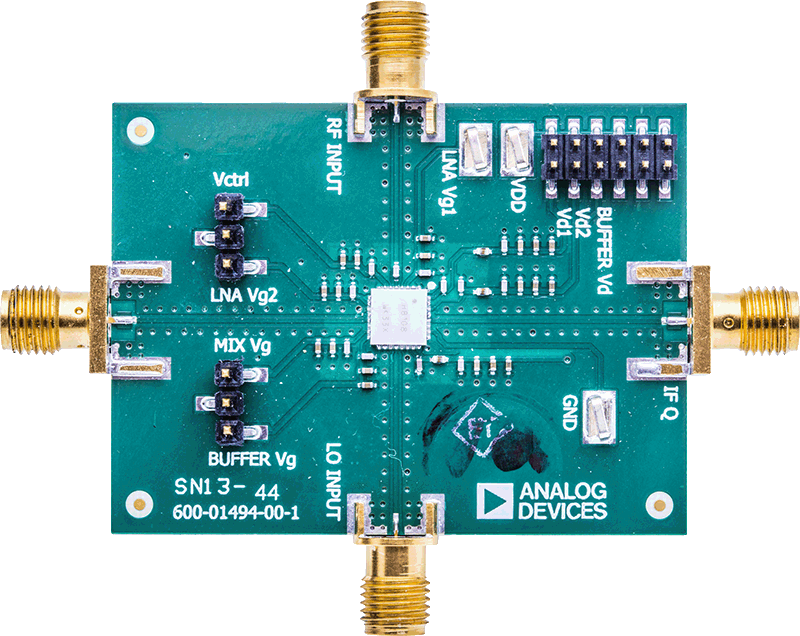

EV1HMC8108LC5ANGLE-web EV1HMC8108LC5BOTTOM-web EV1HMC8108LC5TOP-web
