HMC7950
2 GHz to 28 GHz, GaAs pHEMT MMIC Low Noise Amplifier
Top
Overview
Features and Benefits
- Output power for 1 dB compression (P1dB): 16 dBm typical
- Saturated output power (PSAT): 19.5 dBm typical
- Gain: 15 dB typical
- Noise figure: 2.0 dB typical
- Output third-order intercept (IP3): 26 dBm typical
- Supply voltage: 5 V at 64 mA
- 50 Ω matched input/output
Product Details

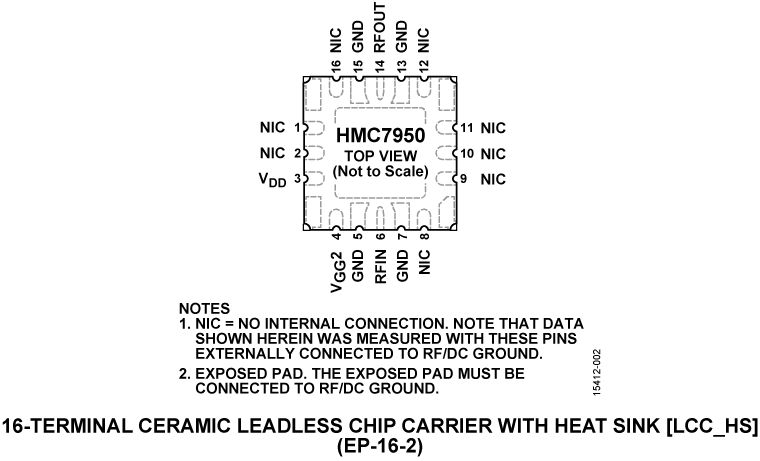

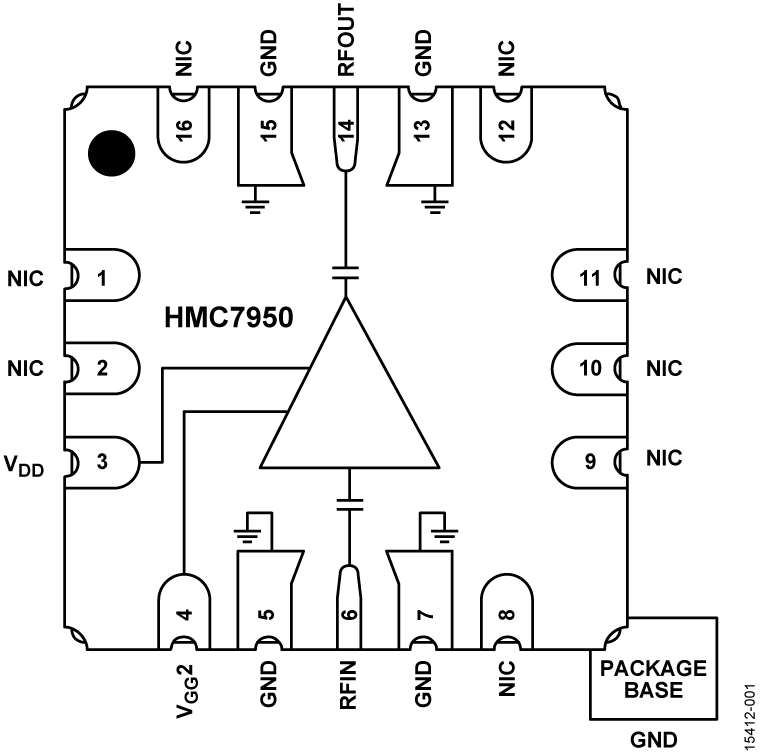

The HMC7950 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC). The HMC7950 is a wideband low noise amplifier that operates between 2 GHz and 28 GHz. The amplifier typically provides 15 dB of gain, 2.0 dB of noise figure, 26 dBm of output IP3, and 16 dBm of output power for 1 dB gain compression, requiring 64 mA from a 5 V supply. The HMC7950 is self biased with only a single positive supply needed to achieve a drain current, IDD, of 64 mA. The HMC7950 also has a gain control option, VGG2. The HMC7950 amplifier input/outputs are internally matched to 50 Ω and dc blocked. It comes in a 6 mm × 6 mm, 16-terminal LCC SMT ceramic package that is easy to handle and assemble.
APPLICATIONS
- Test instrumentation
- Military and space
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

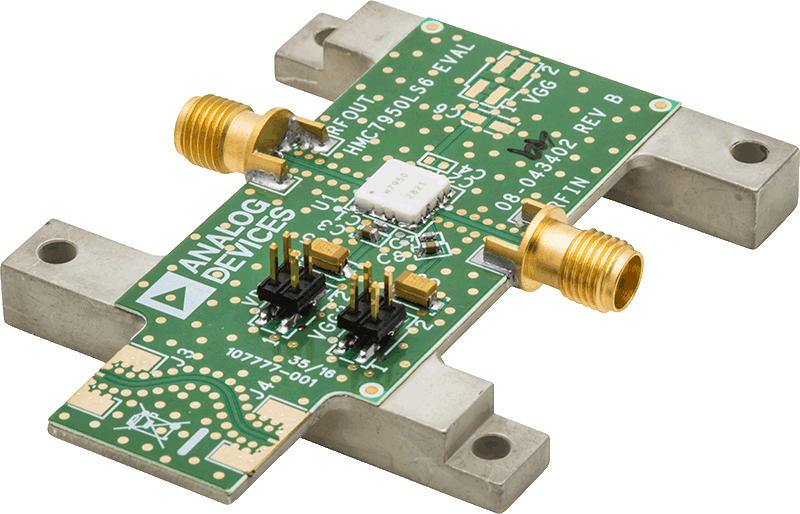

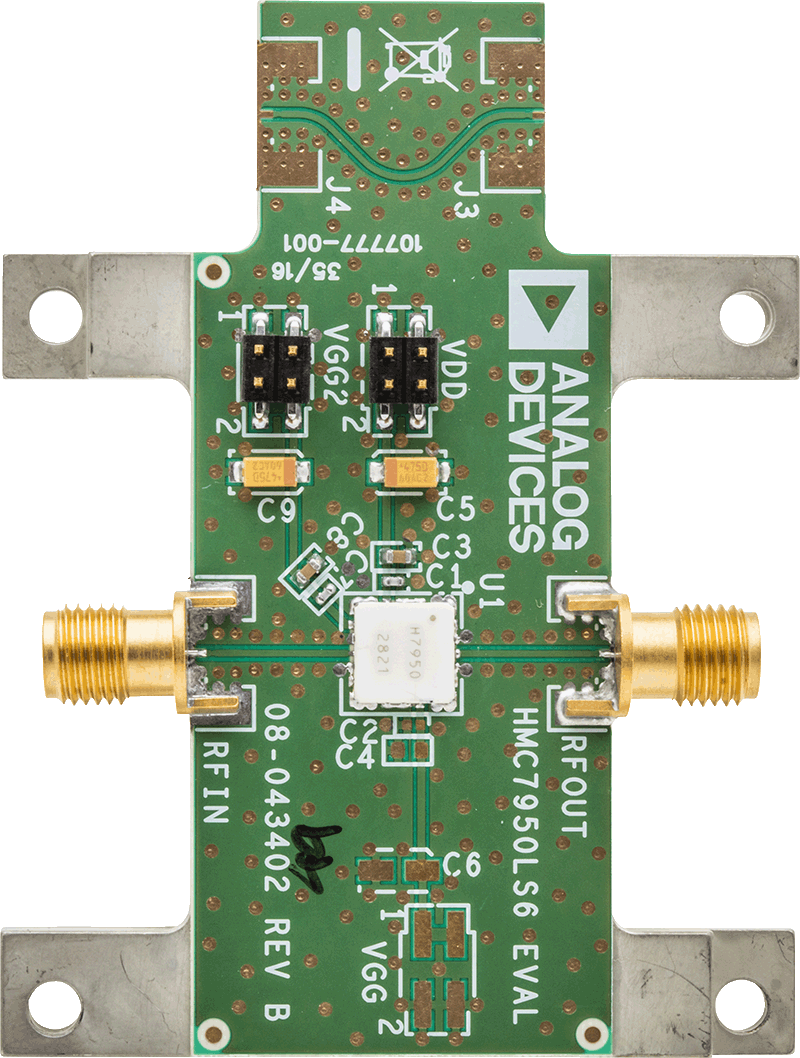

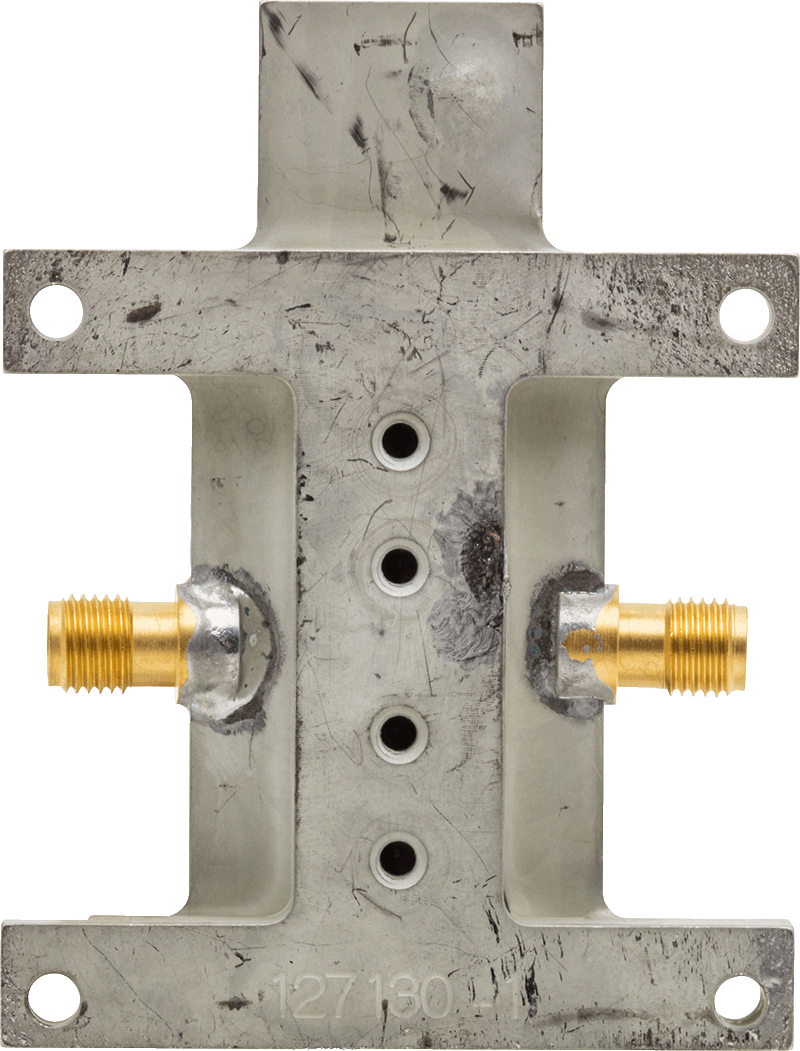

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
Sys-Parameter
Sys-Parameter Models for Keysight Genesys
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
S-Parameter
ZIP
HMC7950 S-Parameters
23.12 K
Design Tool
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC7950LS6 | Material Declaration | Reliability Data | 16-Lead LCC (6mm x 6mm w/EP) | |
| HMC7950LS6TR | Material Declaration | Reliability Data | 16-Lead LCC (6mm x 6mm w/EP) | |
| Wafer Fabrication Data |
