Overview

Features and Benefits

  • Low Noise Floor:
    –163 dBc/Hz at 10 MHz offset
    –160 dBc/Hz at 100 kHz offset
  • Programmable Frequency Divider, N = 1, 2, 3 or 4
  • 200 MHz to 2 GHz Input Frequency Range
  • 50% Duty Cycle Outputs
  • Up to +10 dBm Output Power
  • Sleep Mode: Consumes <1 μA
  • 16 Lead 3 × 3mm SMT Package: 9mm2

Product Details

The HMC794LP3E is a SiGe BiCMOS low noise programmable frequency divider in a 3 × 3mm leadless surface mount package. The circuit can be programmed to divide from N = 1 to N = 4 in the 200 MHz to 2 GHz input frequency range. The high level output power (up to 10 dBm) with a very low SSB phase noise and 50% duty cycle makes this device ideal for low noise clock generation, LO generation and LO drive applications. Configurable bias controls allow power minimization of up to 20%.

APPLICATIONS

  • LO Generation with Low Noise Floor
  • Clock Generators
  • Mixer LO Drive
  • Military Applications
  • Test Equipment
  • Sensors

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

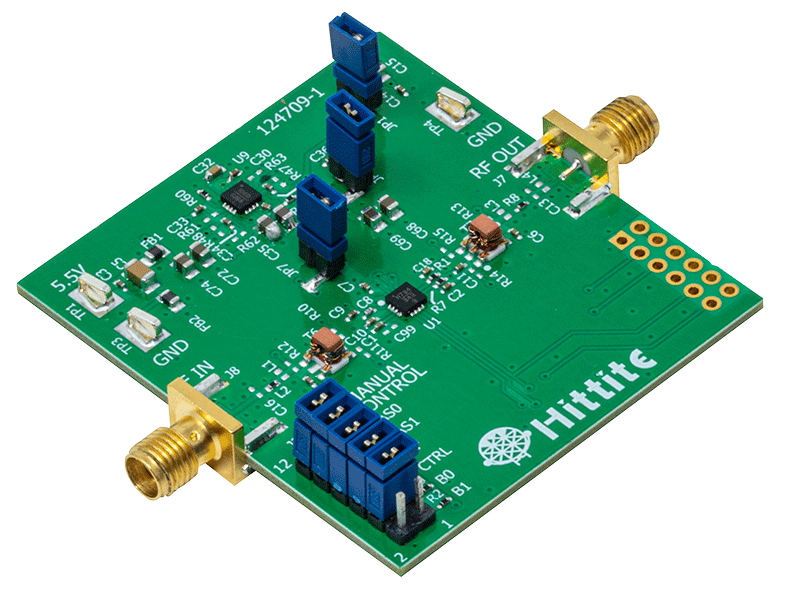

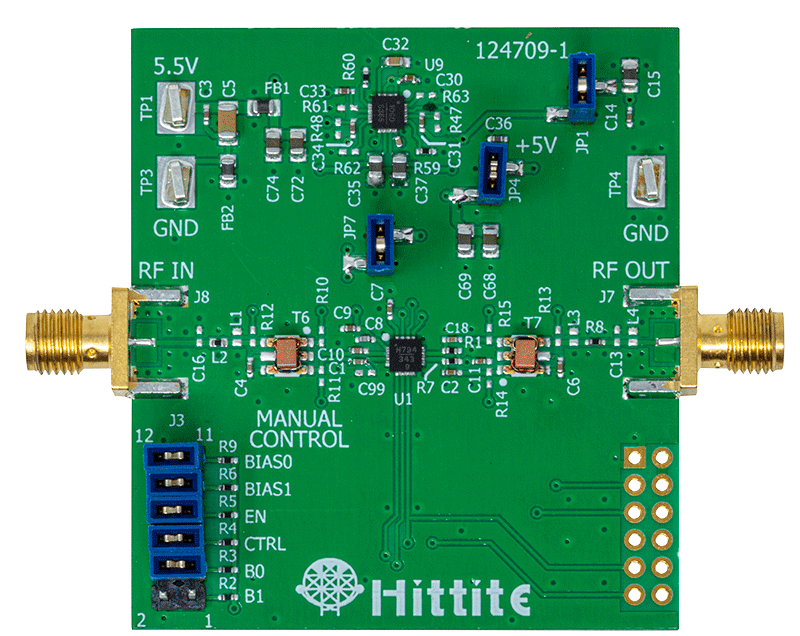

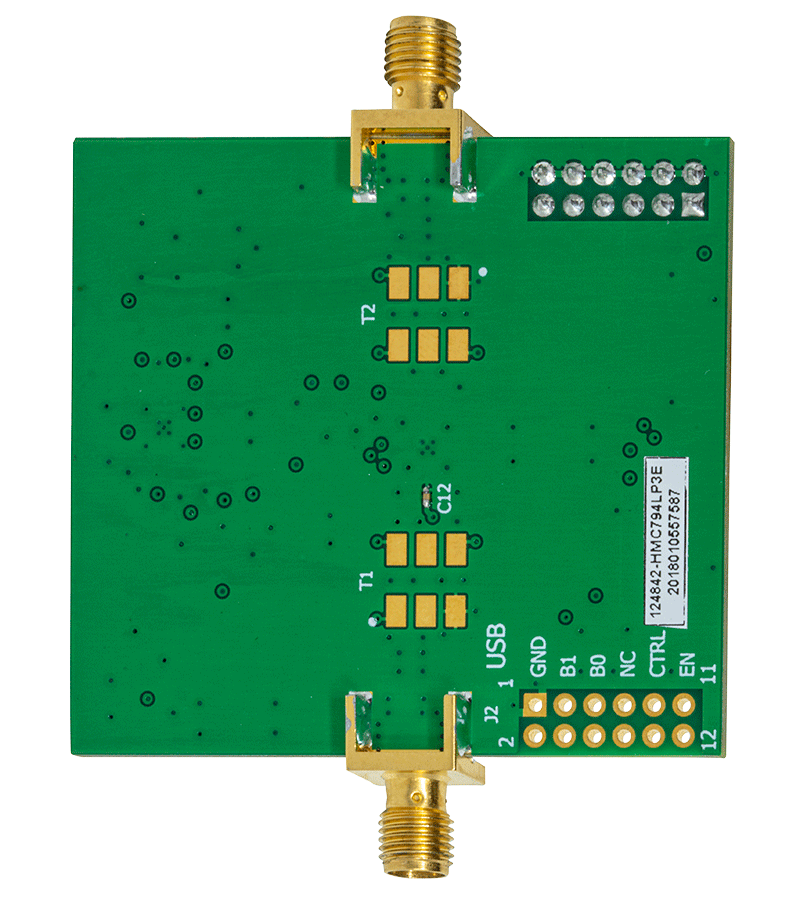

Evaluation Kits (1)
