Overview

Features and Benefits

  • Wide band: DC - 8 GHz RF Input
  • Industry Leading Phase Noise & Spurious: -112 dBc/Hz @ 8 GHz Fractional, 50 kHz Offset
  • Figure of Merit:
    •  -230 dBc/Hz Frac. Mode
    •  -233 dBc/Hz Int. Mode
  • High PFD rate: 100 MHz
  • 24 Lead 4 x 4 mm SMT Package: 16 mm²

Product Details

The HMC703 fractional synthesizer is built upon the high performance PLL platform also contained in the HMC704 and Hittite’s latest generation of PLL+VCO products. This platform has the best phase-noise and spurious performance in the industry - enabling higher order modulation schemes while minimizing blocker effects in high performance radios.

In addition, the HMC703 offers frequency sweep and modulation features, external triggering, double-buffering, exact frequency control, phase modulation and more - while maintaining pin compatibility for the main functions with the HMC700.

Applications

  • Microwave Point-to-Point Radios
  • Base Stations for Mobile Radio
    (GSM, PCS, DCS, CDMA, WCDMA)
  • Wireless LANs, WiMAX
  • Communications Test Equipment
  • ATV Equipment
  • Automotive Sensors
  • AESA - Phased Arrays
  • FMCW Radar Systems

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

Tools & Simulations

Design Tools

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.

PCN-PDN Information

Sample & Buy


The USA list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. sales office or authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.

Sampling:
Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.


Price Table Help

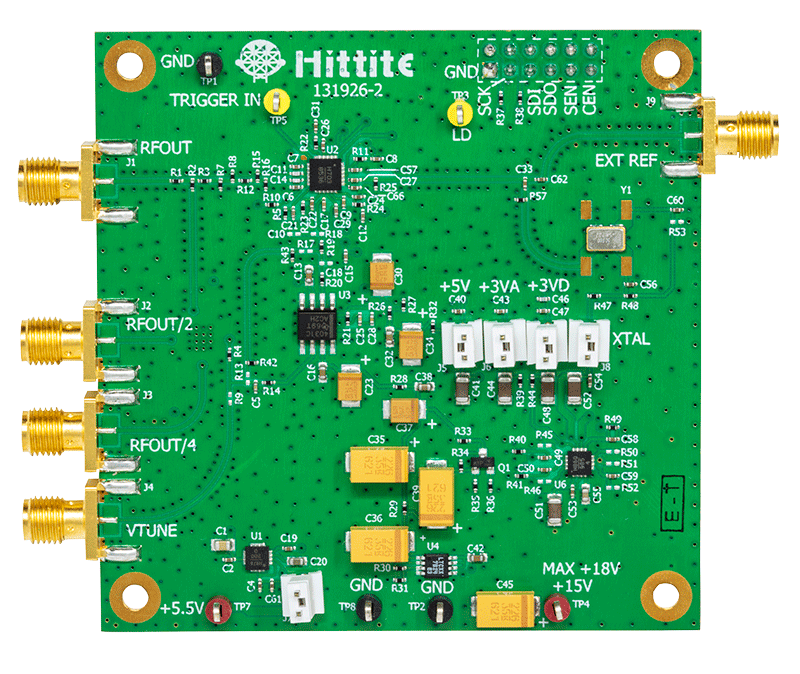

Evaluation Boards
