HMC700 Data Sheet3/22/2019
Alternative Parts
Overview
Features and Benefits
- 8 GHz, 16 bit prescaler
- Fractional or Integer Modes
- 24 bit step size resolution, 3 Hz typ
- Ultra Low Phase Noise
- 6 GHz; 50 MHz Ref. -103 / -108 dBc/Hz @ 20 kHz (Frac/INT)
- Figure of Merit (FOM) -221/-227 dBc/Hz (Frac/INT)
- 225 MHz, 14bit reference path input
- Direct FSK Modulation Mode
- Cycle Slip Prevention
- Read / Write Serial Port, Chip ID
- 24 Lead 4x4mm SMT Package: 16mm²
Product Details
The HMC700LP4(E) is a SiGe BiCMOS fractional-N frequency synthesizer. The synthesizer includes a very low noise digital phase frequency detector (PFD), and a precision controlled charge pump.
The fractional synthesizer features an advanced deltasigma modulator design that allows both ultra-fine step sizes and very low spurious products. Spurious outputs are low enough to eliminate the need for costly Direct Digital Synthesis (DDS) references in many applications.
The HMC700LP4(E) phase-frequency detector (PFD) features cycle slip prevention (CSP) technology that allows faster frequency hopping times.
Ultra low in-close phase noise and low spurious also permit architectures with wider loop bandwidths for faster frequency hopping and low micro-phonics. FSK mode allows the synthesizer to be used as a simple low cost direct FM transmitter source.
Applications
- Base Stations for Mobile Radio
- WiMAX
- Test & Measurement
- CATV Equipment
- Phased Array Applications
- Simple FSK Links
- DDS Replacement
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

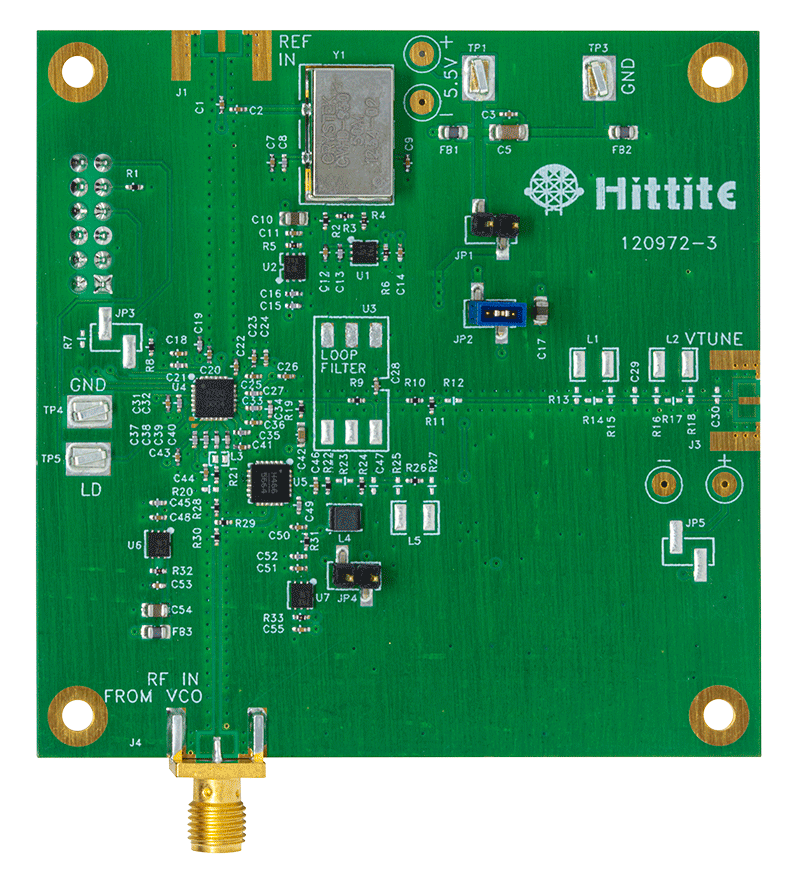

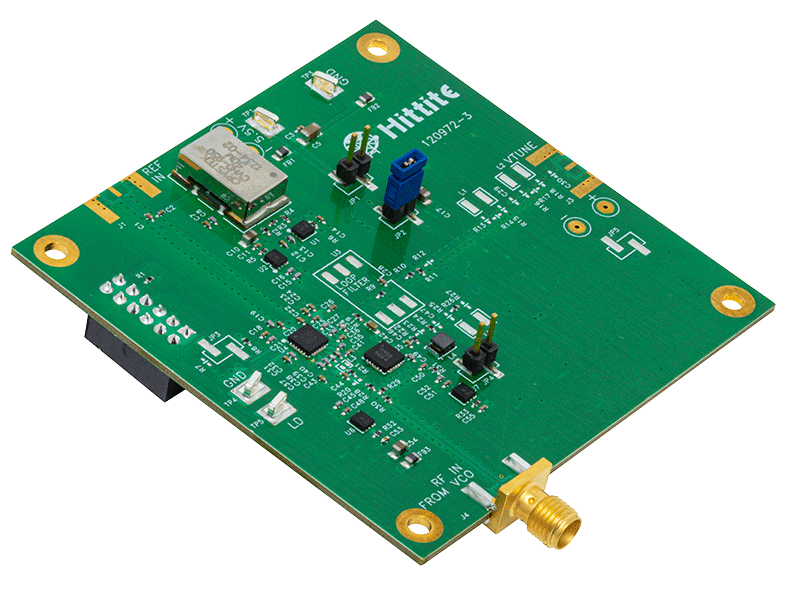

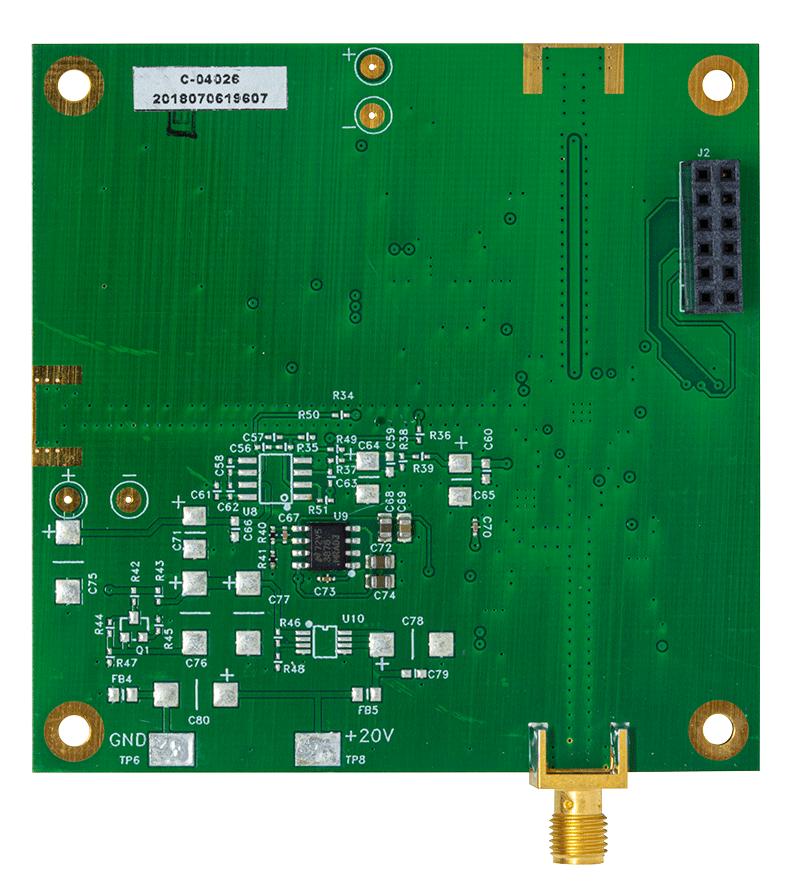

Evaluation Kits (1)
