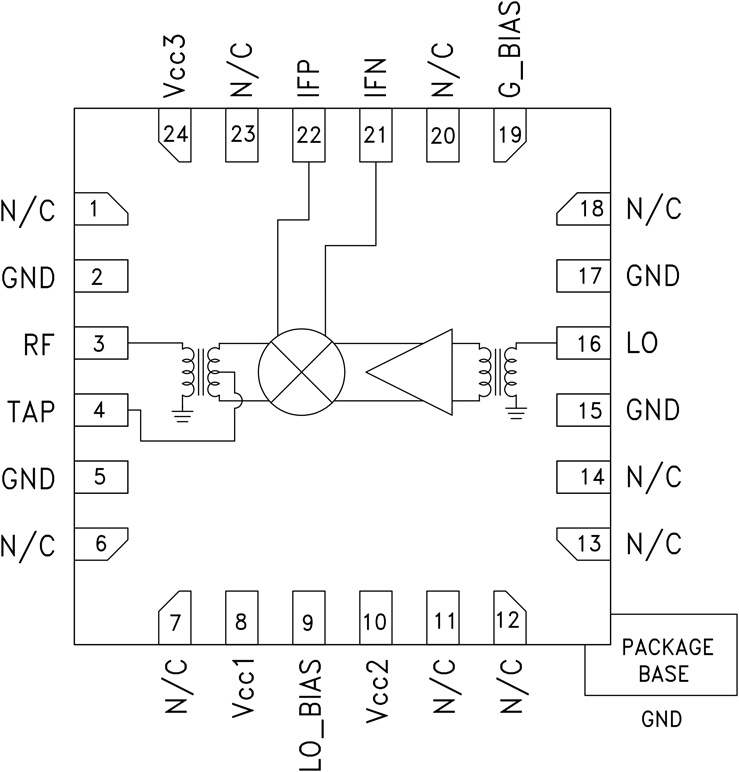

HMC684

LAST TIME BUY

HMC684

BiCMOS Mixer w/Integrated LO Amplifier, 700 - 1000 MHz

LAST TIME BUY

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

High Input IP3: +32 dBm
Low Conversion Loss: 7 dB
24 Lead 4x4mm SMT Package: 16mm²

Low LO Drive: 0 dBm
Upconversion & Downconversion Applications

Additional Details

The HMC684LP4(E) is a high dynamic range passive MMIC mixer with integrated LO amplifier in a 4x4 SMT QFN package covering 0.7 to 1.0 GHz. Excellent input IP3 performance of +30 dBm for down conversion is provided for 3G & 4G GSM/CDMA applications at an LO drive of 0 dBm. With an input 1 dB compression of +25 dBm, the RF port will accept a wide range of input signal levels. Conversion loss is 7 dB typical. The DC to 450 MHz IF frequency response will satisfy GSM/CDMA transmit or receive frequency plans. The HMC684LP4(E) is pin for pin compatible with the HMC685LP4(E) which is a 1.7 - 2.2 GHz mixer with LO amplifier.

APPLICATIONS

Cellular/3G & LTE/WiMAX/4G
Basestations & Repeaters
GSM, CDMA & OFDM
Transmitters and Receivers
