HMC642

Obsolete

HMC642 / HMC642LC5

6-Bit Digital Phase Shifter Chip and SMT, 9 GHz to 12.5 GHz

Data Sheet Product Selection Table

Part Models: 5
1ku List Price: price unavailable

Viewing:

Overview

Low RMS phase error: 2.5 degrees to 3.5 degrees
Low insertion loss: 6.5 dB to 7 dB
High linearity: 41 dBm
Positive control voltage and positive control logic

360 degree coverage, LSB = 5.625 degrees

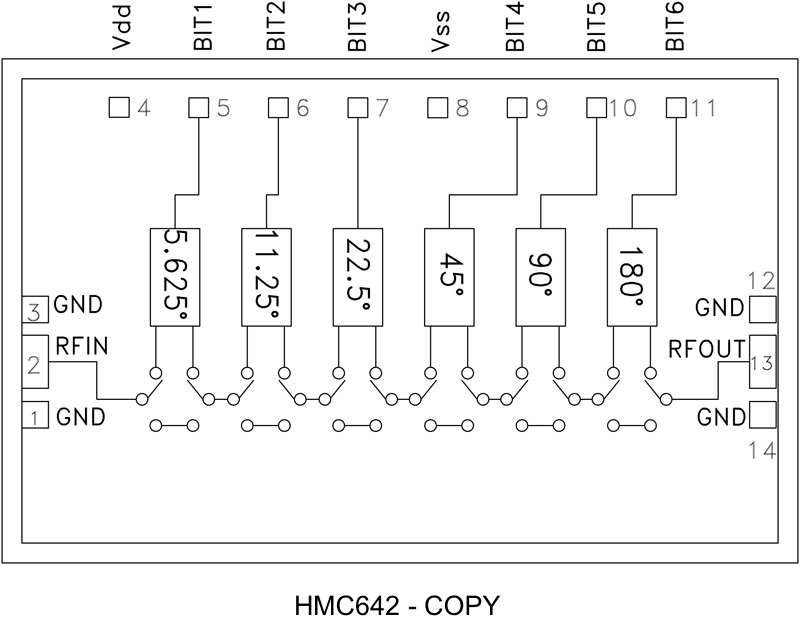

Die size: 3.25 mm x 1.9 mm x 0.1 mm

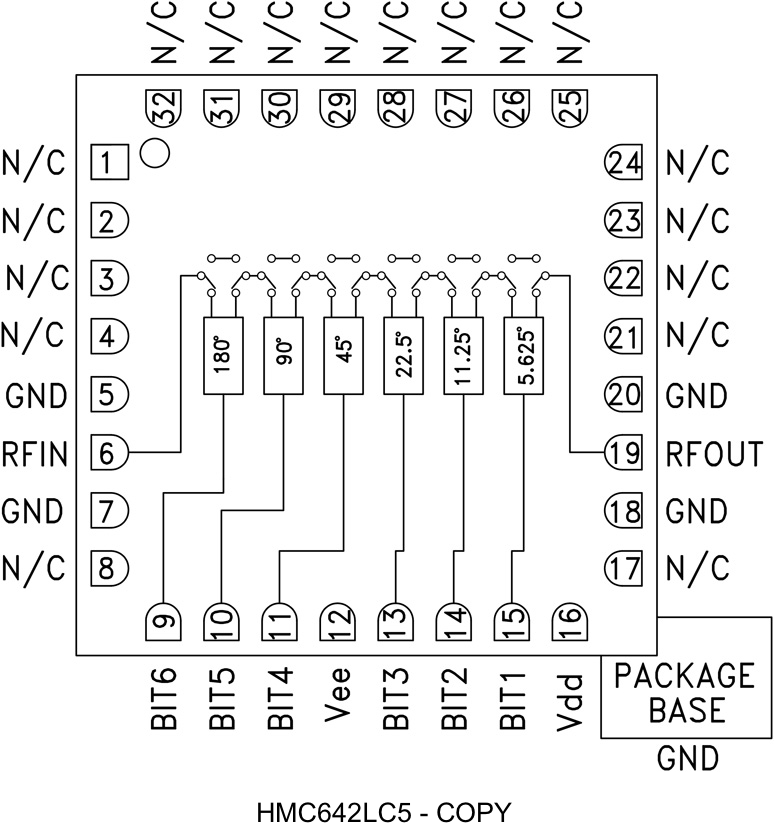

32-lead ceramic SMT package: 25 mm²

The HMC642 is a 6-bit digital phase shifter die that is rated from 9 GHz to 12.5 GHz, providing 360 degrees of phase coverage, with an LSB of 5.625 degrees. The HMC642 features very low RMS phase error of 2.5 degrees to 3.5 degrees and extremely low insertion loss variation of ±0.25 dB to ±0.4 dB across all phase states. This high accuracy phase shifter is controlled with positive control logic of 0/5 V. The HMC642 is housed in a compact 5 mm x 5 mm ceramic leadless SMT package and is internally matched to 50 Ω with no external components.

Applications

EW receivers
Weather and military radar
Satellite communications
Beamforming modules
Phase cancellation

Suggested Replacement Parts

GaAs MMIC 6-Bit Digital Phase Shifter, 9 - 12.5 GHz

Part Models: 5
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC642LC5 Data Sheet 04/14/2015

Obsolete Data Sheet 1

HMC642 Die Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC642	CHIPS OR DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
HMC642-SX	CHIPS OR DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
HMC642LC5	32-Lead LFCSP_CAV (5mm x 5mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
HMC642LC5TR	32-Lead LFCSP_CAV (5mm x 5mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
HMC642LC5TR-R5	32-Lead LFCSP_CAV (5mm x 5mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC642
HMC642LC5	Obsolete
HMC642LC5TR	Obsolete
