HMC6000

Obsolete

HMC6000 / HMC6000LP711E

HMC6000: millimeter wave transmitter IC, 57 GHz to 64 GHz

HMC6000LP711E: 60 GHz Tx with integrated antenna

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: price unavailable

Viewing:

Overview

Support for IEEE channel plan
Output power
HMC6000: 12 dBm
HMC6000LP711E: 16 dBm
Max gain: 38 dB
Gain adjustable range (HMC6000): 17 dB
Gain control range (HMC6000LP711E): 17 dB
Integrated frequency synthesizer
Integrated image reject filter
Programmable intermediate frequency (IF) gain block

Universal analog I/Q baseband interface
3-wire serial digital interface
Die size (HMC6000): 4.082 mm × 1.814 mm
EIRP (HMC6000LP711E): 23.5 dBm
Antenna gain (HMC6000LP711E): 7.5 dBi
7 mm × 11 mm quad flat no-leads (QFN) package: 77 mm2 (HMC6000LP711E)

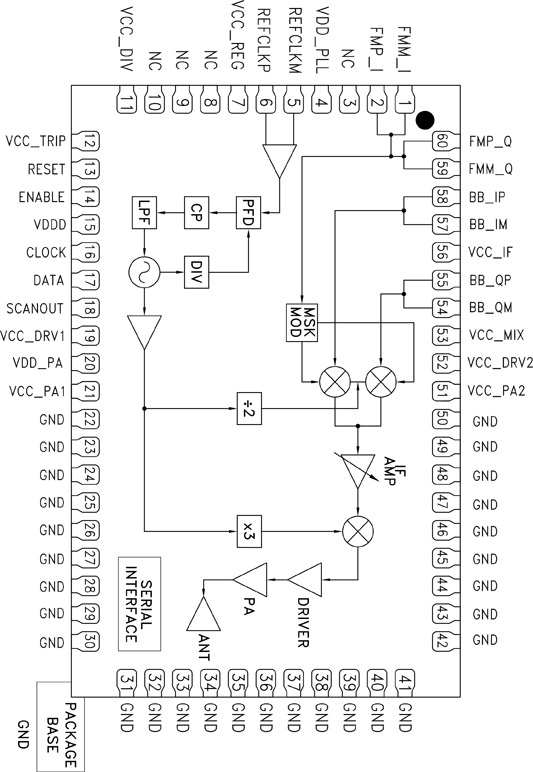

The HMC6000 devices are complete millimeter wave transmitters available in a chip (HMC6000) and an IC and low profile antenna integrated in a plastic 7 mm × 11 mm surface mount package (HMC6000LP711E). The HMC6000 devices operate from 57 GHz to 64 GHz with 1.8 GHz of modulation bandwidth. The surface mount package provides 23.5 dBm of EIRP over this range. An integrated synthesizer provides tuning in 500 MHz or 540 MHz step sizes depending on the choice of external reference clock. Support for a wide variety of modulation formats is provided through a universal analog baseband I/Q interface. The HMC6000 supports all single carrier WiGig modulations and optionally supports dedicated FSK/MSK modulation formats for lower cost and lower power serial data links without the need for high speed data converters. A differential output provides up to 12 dBm linear output power into a 100 Ω load. Together with the HMC6001 devices, a complete transmit/receive chipset is provided for multi-Gbps operation in the unlicensed 60 GHz ISM band.

Applications

Wireless Gigabit Alliance (WiGig) single carrier modulations
60 GHz industrial, scientific, and medical (ISM) band data transmitter
Multi-Gbps data communications
High definition video transmission
Radio frequency identification (RFID)

Part Models: 4
1ku List Price: price unavailable

Documentation

Technical Articles 1

Transceiver Chips Corral MM Waves 04/01/2012

Obsolete Data Sheet 2

HMC6000LP711E: Millimeterwave Transmitter 57-64 GHz Data Sheet 12/12/2016

HMC6000 Die Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC6000-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC6000LP711E	LFCSP:LEADFRM CHIP SCALE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC6000LP711ETR	LFCSP:LEADFRM CHIP SCALE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC6000T6	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 29, 2015 - 15_0120 Discontinuance of Select Standard Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0120_Form Material_Report
HMC6000-SX	Obsolete
HMC6000LP711ETR	Obsolete
HMC6000T6	Obsolete
Oct 29, 2015 - 15_0038 Discontinuance of Select Standard Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0038_Form Material_Report
HMC6000LP711E	Obsolete	PDN15_0038_Form Material_Report

This is the most up-to-date revision of the Data Sheet.
