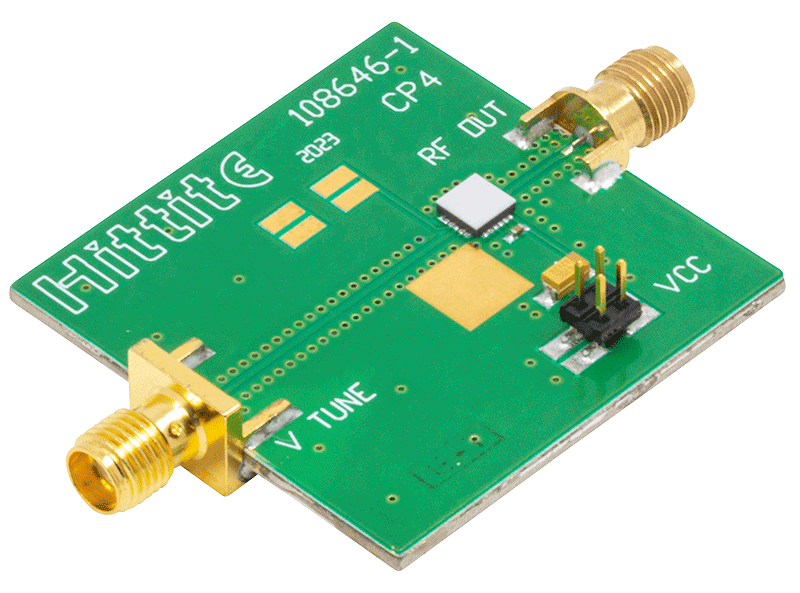

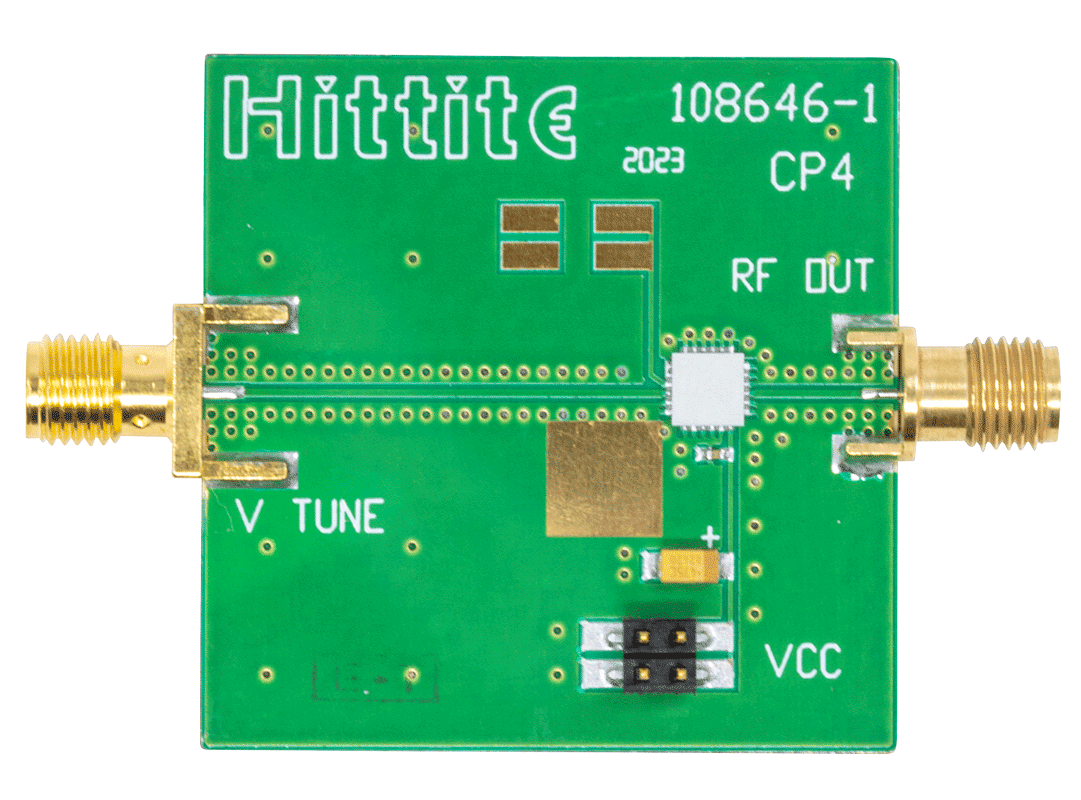

HMC588

Wideband VCO SMT w/Buffer Amplifier, 8 - 12.5 GHz

Obsolete

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

Wide Tuning Bandwidth
Pout: +5 dBm
Low SSB Phase Noise: -93 dBc/Hz @100 kHz
No External Resonator Needed

Single Positive Supply: +5V @ 55 mA
RoHS Compliant 4 x 4 mm SMT Package

Additional Details

The HMC588LC4B is a wideband GaAs InGaP HBT MMIC Voltage Controlled Oscillator which incorporates the resonator, negative resistance device, and varactor diode. Output power and phase noise performance are excellent over temperature due to the oscillator’s monolithic construction. The Vtune port accepts an analog tuning voltage from 0 to +13V. The HMC588LC4B VCO operates from a single +5V supply, consumes only 55 mA of current, and is housed in a RoHS compliant SMT package. This wideband VCO uniquely combines the attributes of ultra small size, low phase noise, low power consumption, and wide tuning range.

Applications

Industrial/Medical Equipment
Test & Measurement Equipment
Military Radar, EW & ECM
