Features and Benefits
- Conversion loss: 8.5 dB
- LO to RF Isolation: 37 dB
- Input IP3: 20 dBm
- RoHS compliant, 2.90 mm × 2.90 mm, 12-terminal LCC package
The HMC554ALC3B is a general-purpose, double balanced mixer in a leadless RoHS compliant leadless chip carrier (LCC) package that can be used as an upconverter or downconverter between 10 GHz and 20 GHz. This mixer is fabricated in a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The HMC554ALC3B provides excellent local oscillator (LO) to RF and LO to intermediate frequency (IF) isolation due to optimized balun structures. The RoHS compliant HMC554ALC3B eliminates the need for wire bonding and is compatible with high volume surface-mount manufacturing techniques.
- Microwave and very small aperture terminal (VSAT) radios
- Test equipment
- Military electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications and intelligence (C3I)
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

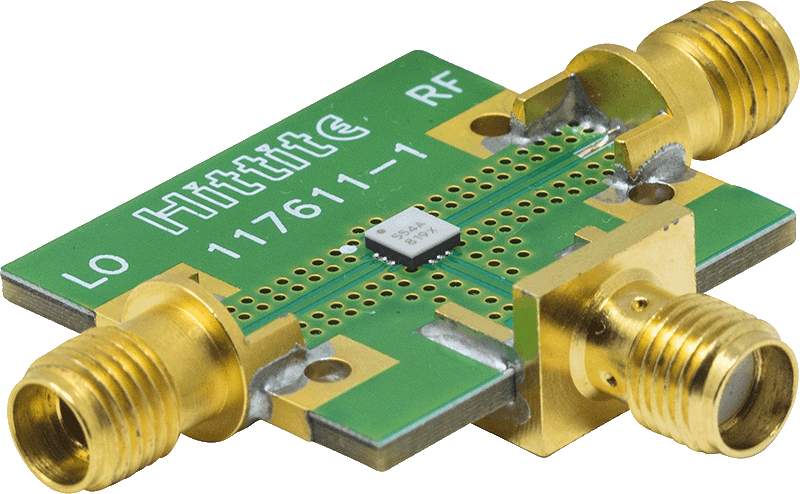

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|HMC554ALC3B||Material Declaration||Reliability Data||12-Lead LCC (2.9mm x 2.9mm w/ EP)|
|HMC554ALC3BTR||Material Declaration||Reliability Data||12-Lead LCC (2.9mm x 2.9mm w/ EP)|
|HMC554ALC3BTR-R5||Material Declaration||Reliability Data||12-Lead LCC (2.9mm x 2.9mm w/ EP)|
|Wafer Fabrication Data|
