Overview

Features and Benefits

  • Input P0.1dB: +33 dBm @ +5V
  • Insertion Loss: 0.6 dB
  • Positive Control: +3V or +5V
  • Isolation: 27 dB
  • 2x2 mm Leadless DFN
    SMT Package, 4 mm²

Product Details

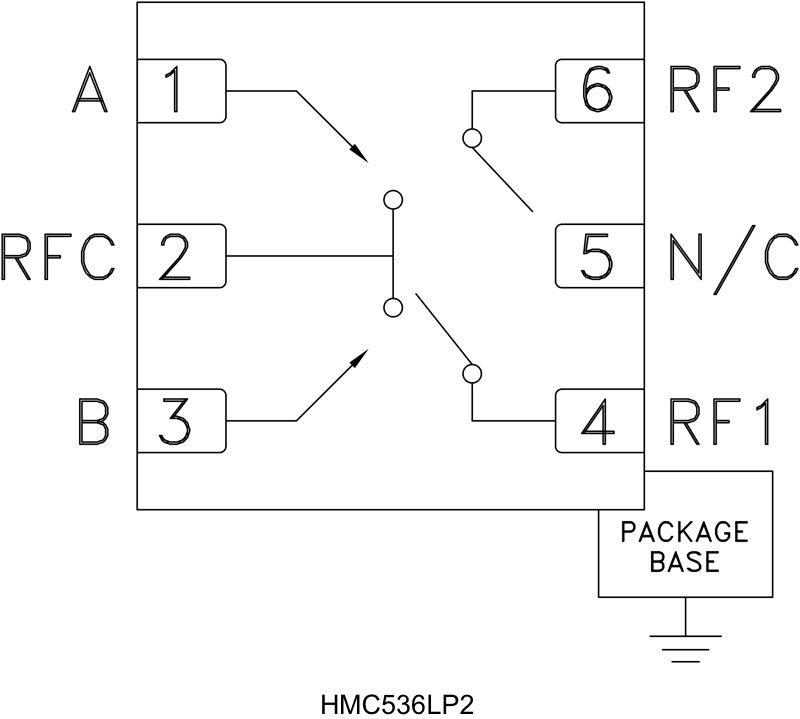

The HMC536LP2(E) is a DC to 6 GHz GaAs MMIC T/R switch in leadless 2x2 mm DFN LP2 surface mount packages with an exposed ground paddle. The switch is ideal for cellular, WiMAX, & WiBro access point and subscriber applications featuring low 0.6 dB insertion loss and high +54 dBm input IP3. Power handling is excellent up through 6 GHz with the switch offering a P0.1dB compression point of +29 dBm at +3V and +33 dBm at +5V control. On-chip circuitry allows positive voltage control of 0/+3V or 0/+5V at very low DC currents. The HMC536LP2(E) occupies only 4 mm² and are ideal for applications where small size is required.

Applications

  • Cellular/PCS/3G Infrastructure
  • WiMAX, WiBro & Fixed Wireless
  • CATV/CMTS
  • Test Instrumentation

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
