  5. HMC535

Data Sheet

Overview

Features and Benefits

  • Pout: +9 dBm
  • Phase Noise:
    -110 dBc/Hz @100 KHz Typ.
  • Single Supply: +5V @ 340 mA,
    12V @ 28 mA
  • QFN Leadless SMT Package, 16 mm2

Product Details

The HMC535LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC PLO. The PLO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +9 dBm typical from a +5V supply voltage.

All functions (VCO, Op-Amp, PFD, Prescaler) are fully integrated while providing allowances for off-chip customer specific loop components. The PLO MMIC accepts a single-ended or a differential reference oscillator input signal in the range of 230 to 240 MHz, and a digital Lock Detector (LD) output is provided to confirm the status of the loop. The phase-locked oscillator is packaged in a leadless QFN 4×4 mm surface mount package.

APPLICATIONS

  • VSAT Radio
  • Point-to-Point & Point-to-Multi-Point Radio
  • Test Equipment & Industrial Controls
  • Military End-Use

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

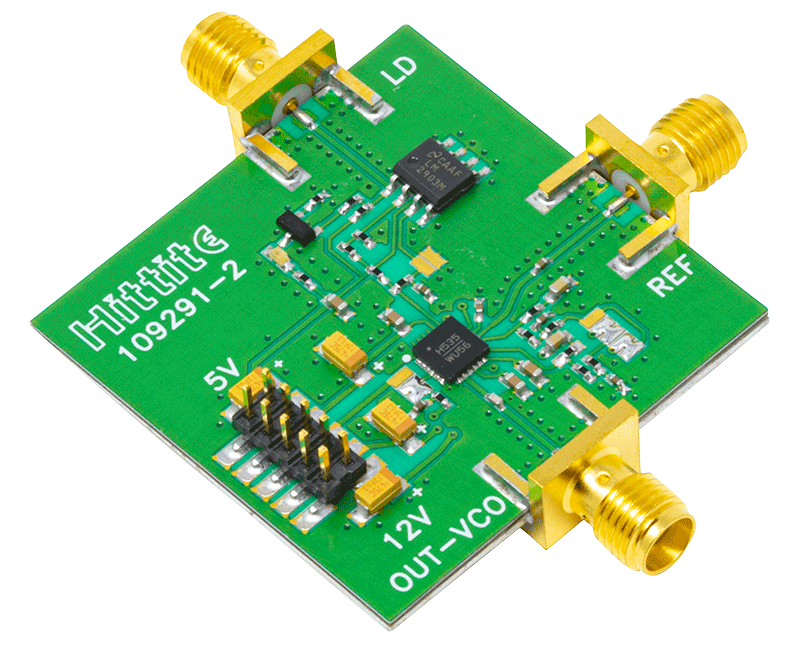

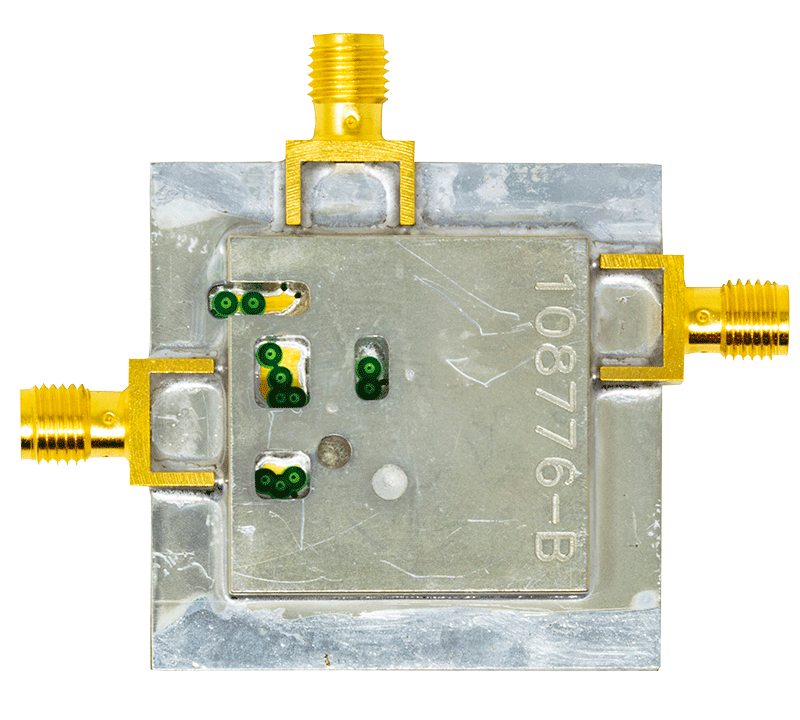

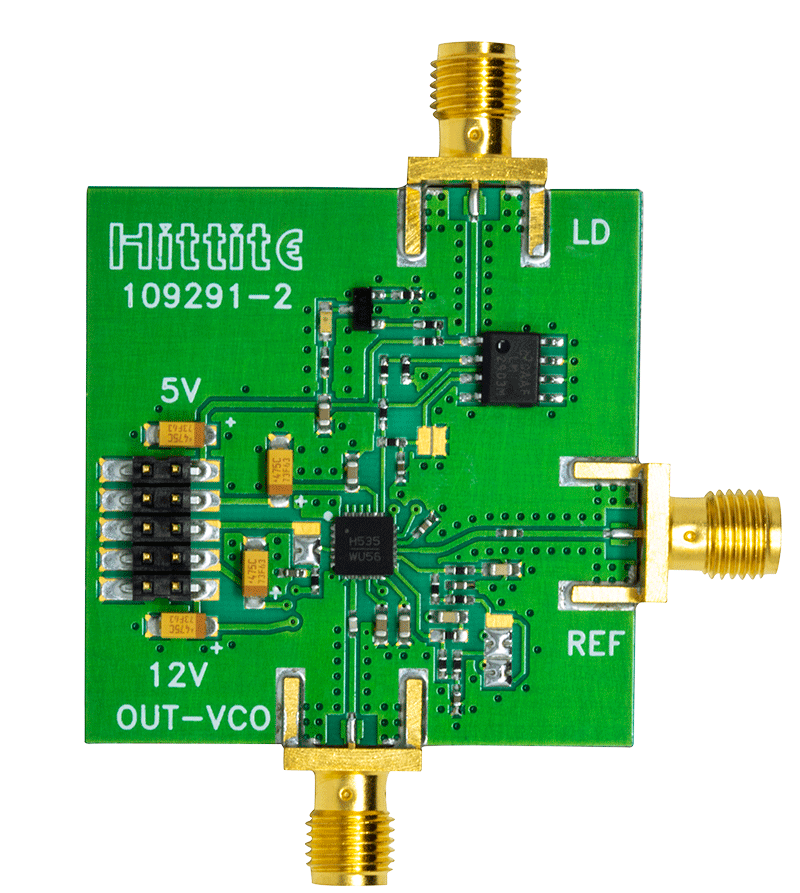

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Application Notes (1)
  • Quality Documentation (3)
  • Tape & Reel Specification (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    HMC535LP4E Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm w/ EP)
    HMC535LP4ETR Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm w/ EP)
