HMC533 Data Sheet4/22/2015
Features and Benefits
- Pout: +12 dBm
- Phase Noise: -95 dBc/Hz @100 KHz Typ.
- No External Resonator Needed
- Single Supply: +5V @ 220 mA
- QFN Leadless SMT Package, 16 mm2
The HMC533LP4(E) are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC533LP4(E) integrate resonators, negative resistance devices, varactor diodes and feature a divide-by-16 output. T he VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +12 dBm typical from a +5V supply voltage. Prescaler function can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 4x4 mm surface mount package.
- VSAT Radio
- Point-to-Point/Multi-point Radio
- Test Equipment & Industrial Controls
- Military End-Use
- Automotive Radar
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

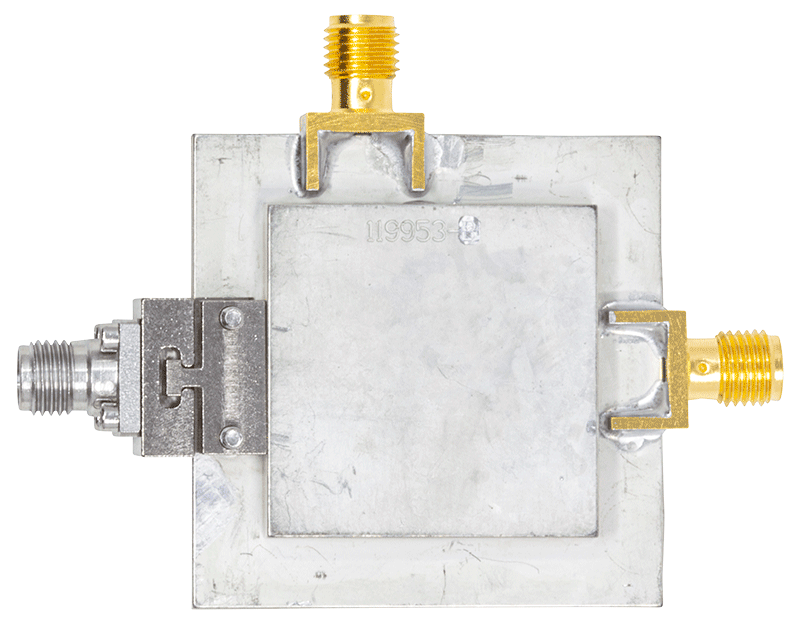

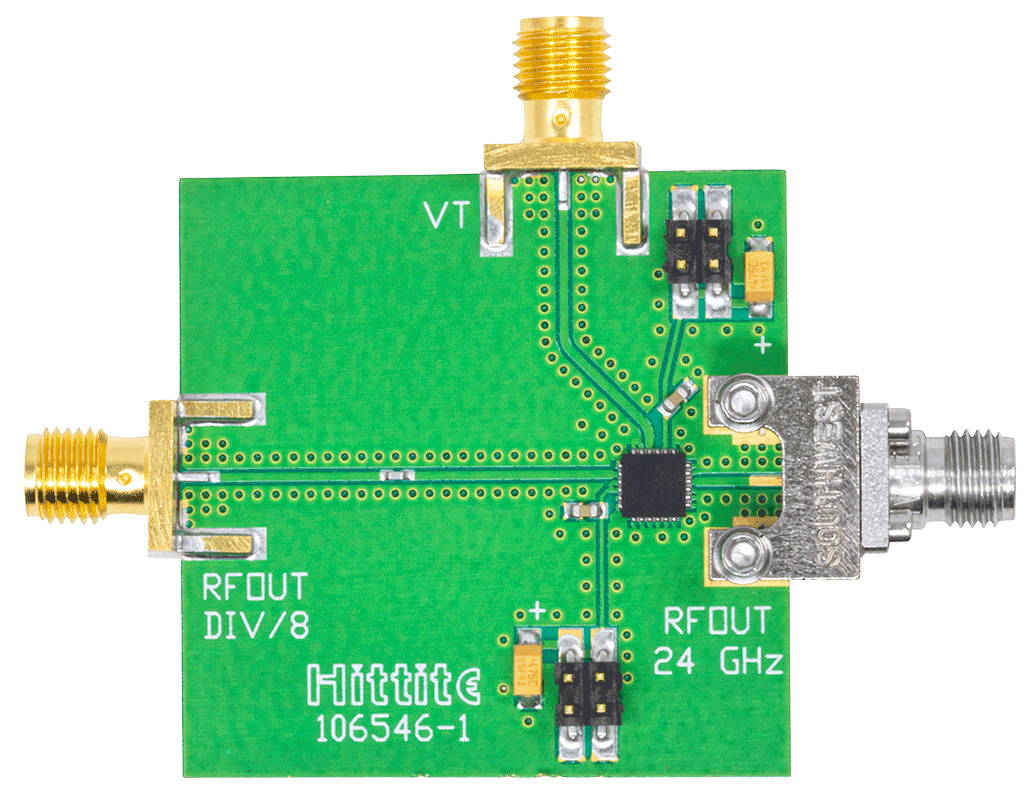

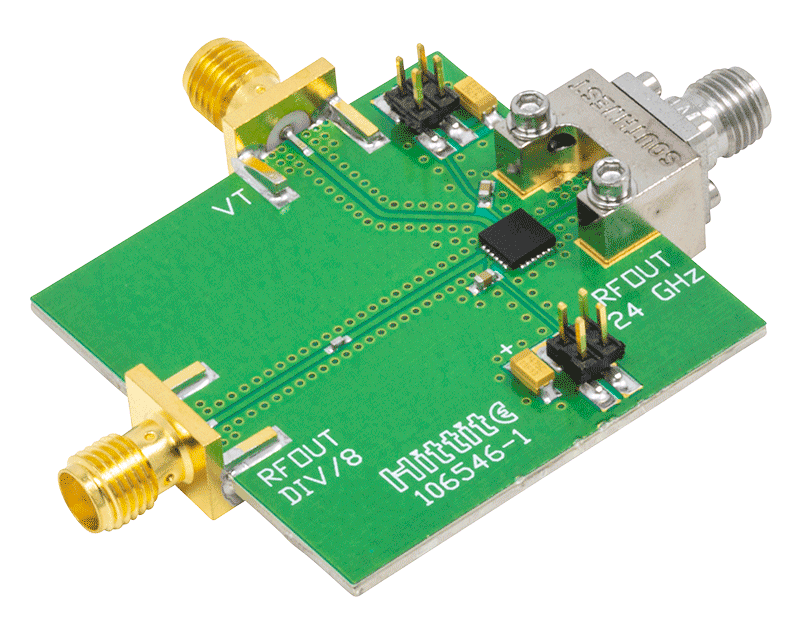

Evaluation Kits (1)
