Features
  • Wide intermediate frequency (IF) bandwidth: dc to 2 GHz
  • Image rejection: 35 dB
  • Local oscillator (LO) to radio frequency (RF) isolation
    HMC527: 50 dB
    HMC527LC4: 45 dB
  • High input IP3: 28 dBm
  • Die size (HMC527): 1.49 mm × 1.14 mm × 0.1 mm
  • RoHS compliant 4 mm × 4 mm SMT package (HMC527LC4)
Additional Details
show more Icon

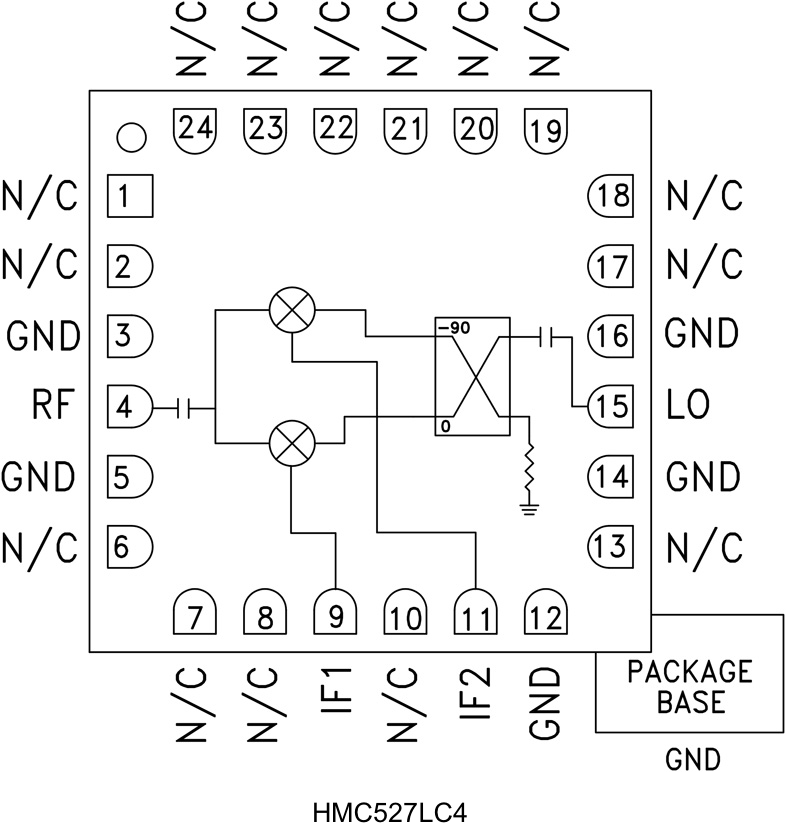

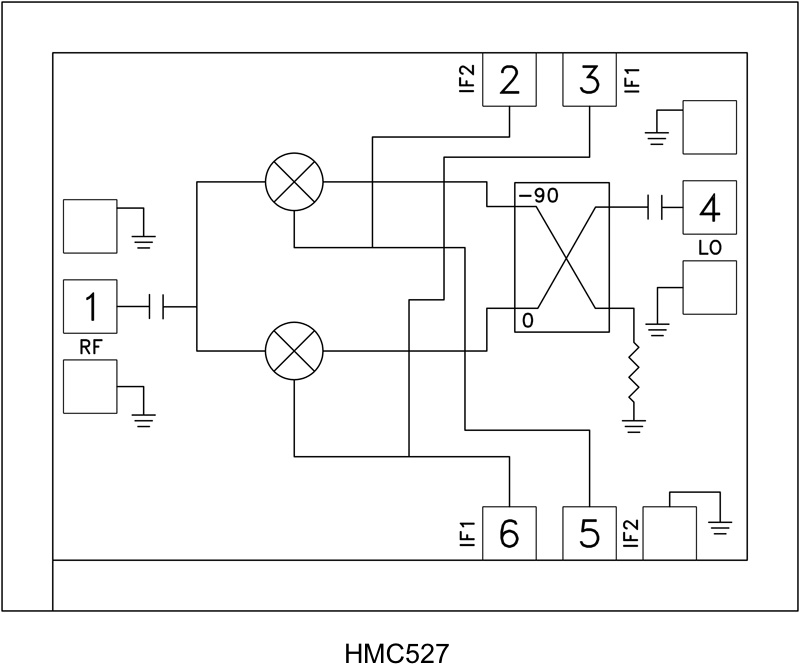

The HMC527 devices are compact I/Q MMIC mixers that are available in a chip (HMC527) or a RoHS compliant SMT package (HMC527LC4), both of which can be used as either an IRM or a single sideband (SSB) upconverter. The mixers utilize two standard Hittite double-balanced mixer cells and a 90° hybrid fabricated in a GaAs metal semiconductor field effect transistor (MESFET) process. A low frequency quadrature hybrid was used to produce a 100 MHz USB IF output. These products are much smaller alternatives to hybrid style IRMs and SSB upconverter assemblies. All data shown for the HMC527 is taken with the chip mounted in a 50 Ω test fixture and includes the effects of 1 mil diameter × 20 mil length bond wires on each port. The HMC527LC4 eliminates the need for wire bonding allowing use of surface mount manufacturing techniques.

Applications

  • Point-to-point radios
  • Point-to-multipoint radios
  • Very small aperture terminal (VSAT)
  • Test equipment and sensors
  • Military end use
