Overview
Features and Benefits
- Downconverter, 8.5 GHz to 13.5 GHz
- Conversion loss: 9 dB typical
- Image rejection: 27.5 dBc typical
- LO to RF isolation: 39 dB typical
- Input IP3: 16 dBm typical
- Wide IF Bandwidth: dc to 3.5 GHz
- 3.9 mm × 3.9 mm, 24-terminal LCC package: 16 mm²
Product Details
The HMC521ALC4 is a compact, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), inphase quadrature (I/Q) mixer in a RoHS compliant, 24-terminal ceramic leadless chip carrier (LCC) package. This device can be used as either an image reject mixer or a single sideband upconverter. The mixer uses two standard, double balanced mixer cells and a 90° hybrid coupler fabricated in a GaAs, metal semiconductor field effect transistor (MESFET) process. This device is a smaller alternative to hybrid style image reject mixers and single sideband upconverter assemblies. The HMC521ALC4 eliminates the need for wire bonding, allowing use of surface-mount manufacturing techniques.
Applications
- Microwave and very small aperture terminal (VSAT) radios
- Test equipment
- Military electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications, and intelligence (C3I)
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

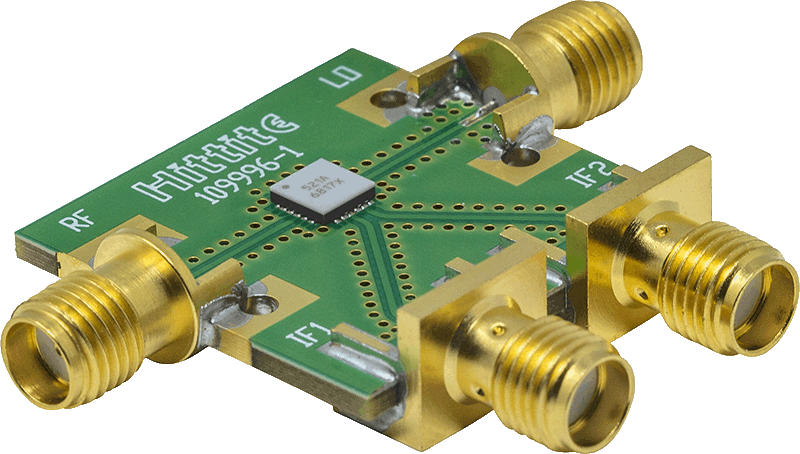

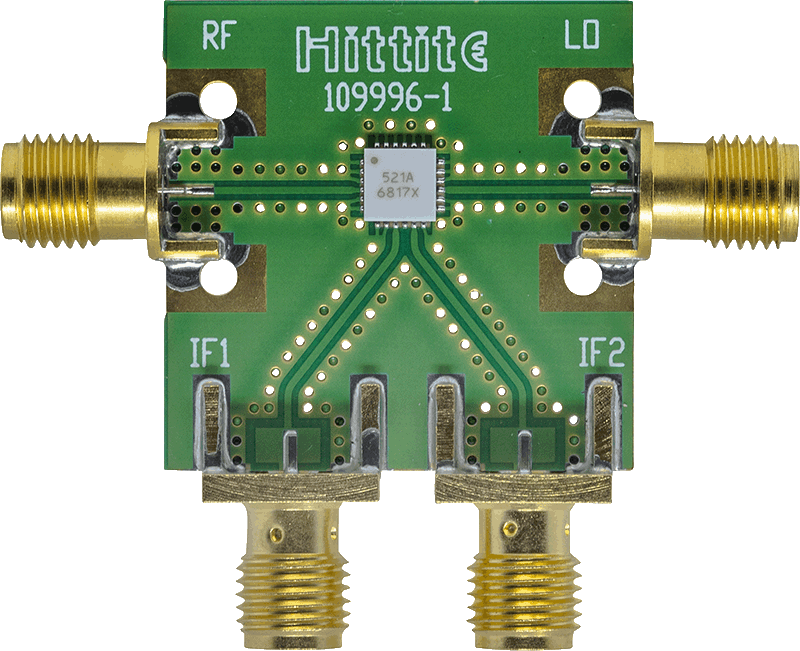

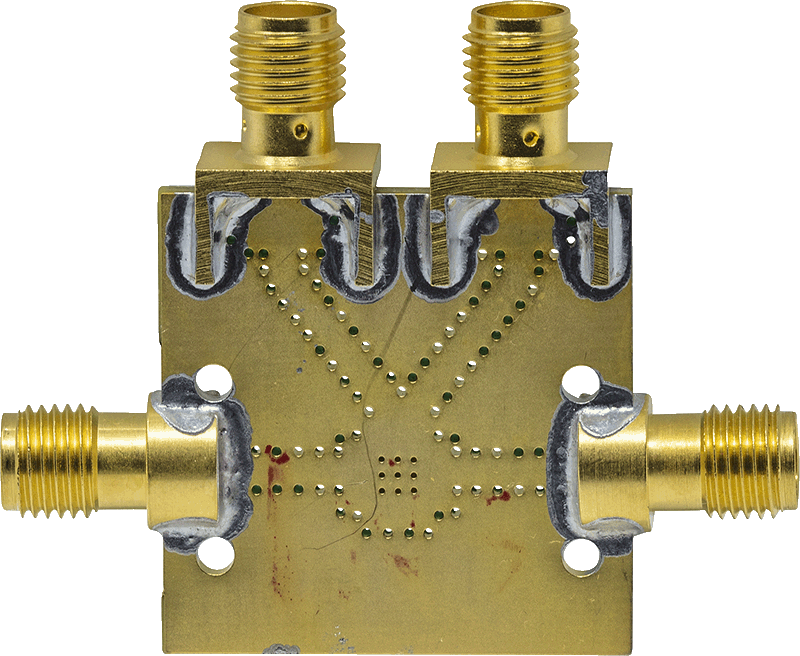

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
S-Parameters
ZIP
HMC521ALC4 S-Parameter
464.25 K
Design Tools
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC521A-SX | Material Declaration | Reliability Data | CHIPS OR DIE | |
| HMC521ACHIPS | Material Declaration | Reliability Data | CHIPS OR DIE | |
| HMC521ALC4 | Material Declaration | Reliability Data | 24-Lead LCC (4 x 4mm) | |
| HMC521ALC4TR | Material Declaration | Reliability Data | 24-Lead LCC (4 x 4mm) | |
| HMC521ALC4TR-R5 | Material Declaration | Reliability Data | 24-Lead LCC (4 x 4mm) | |
| Wafer Fabrication Data |
