HMC494 Data Sheet4/22/2015
Features and Benefits
- Ultra Low SSB Phase Noise:
- Very Wide Bandwidth
- Output Power: -4 dBm
- Single DC Supply: +5V
- 3×3 mm QFN Package
The HMC494LP3(E) is a low noise Divide-by-8 Static Divider utilizing InGaP GaAs HBT technology packaged in leadless 3×3 mm QFN surface mount plastic package. This device operates from DC (with a square wave input) to 18 GHz input frequency from a single +5V DC supply. The low additive SSB phase noise of -150 dBc/Hz at 100 kHz offset helps the user maintain excellent system noise performance.
- Point-to-Point / Multi-Point Radios
- VSAT Radios
- Fiber Optic
- Test Equipment
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
This page contains ordering information for evaluating the HMC494LP3.

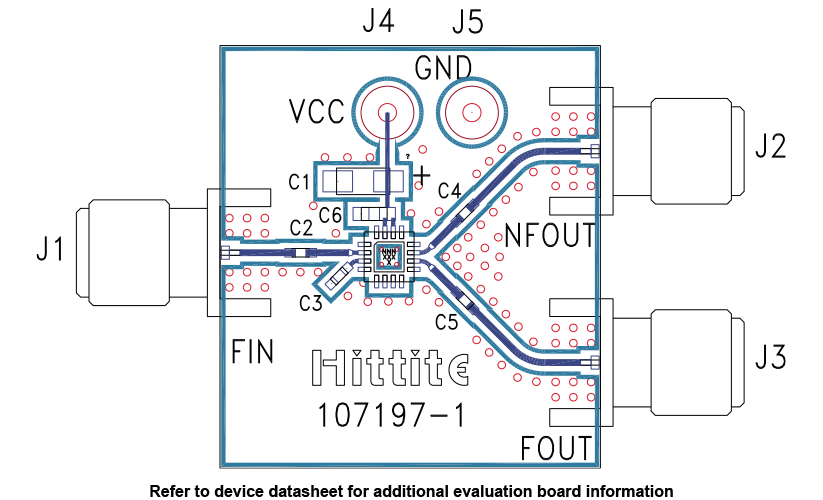

The design files link includes the BOM, schematics, and Gerber files for the evaluation board.
Documentation & Resources
Package/Assembly Qualification Test Report: 16L 3x3mm QFN Package (QTR: 11003 REV: 02)5/3/2019
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/2017
Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228)10/29/2015
Package/Assembly Qualification Test Report: LP2, LP2C, LP3, LP3B, LP3C, LP3D, LP3F, LP3G (QTR: 2014-0364)10/29/2015
Tools & Simulations
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|HMC494LP3E||Material Declaration||Reliability Data||16-Lead QFN (3mm x 3mm w/ EP)|
|HMC494LP3ETR||Material Declaration||Reliability Data||16-Lead QFN (3mm x 3mm w/ EP)|
|Wafer Fabrication Data|
