HMC463-Die

PRODUCTION

GaAs PHEMT MMIC Low Noise AGC Amplifier, 2-20 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Gain: 14 dB
Noise Figure: 2.5 dB @ 10 GHz
P1dB Output Power: +19 dBm @ 10 GHz
Supply Voltage: +5V @ 60 mA
50 Ohm Matched Input/Output
Die Size: 3.05 x 1.29 x 0.1 mm

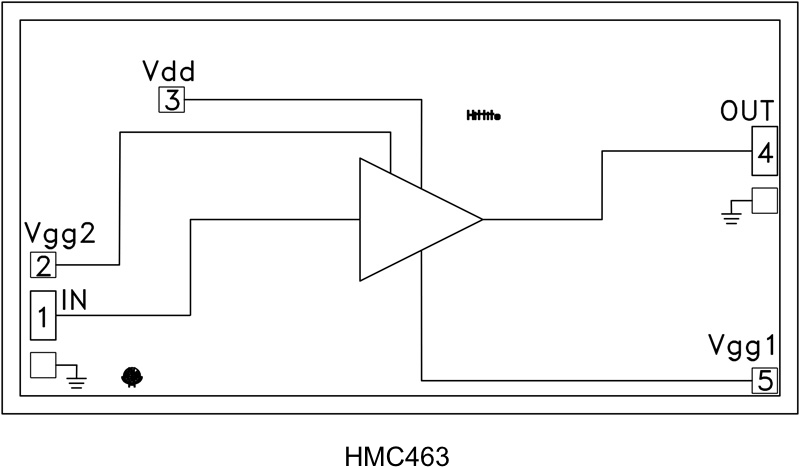

The HMC463 is a GaAs MMIC PHEMT Low Noise AGC Distributed Amplifier die which operates between 2 and 20 GHz. The amplifier provides 14 dB of gain, 2.5 dB noise figure and 19 dBm of output power at 1 dB gain compression while requiring only 60 mA from a +5V supply. An optional gate bias (Vgg2) is provided to allow Adjustable Gain Control (AGC) of 10 dB typical. Gain flatness is excellent at ±0.15 dB from 6 - 18 GHz making the HMC463 ideal for EW, ECM and RADAR applications. The HMC463 amplifier can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size. All data is with the chip in a 50 Ohm test fixture connected via 0.025mm (1 mil) diameter wire bonds of minimal length 0.31mm (12 mils).

Applications

Telecom Infrastructure
Microwave Radio & VSAT
Military & Space
Test Instrumentation
Fiber Optics

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC463: GaAs PHEMT MMIC Low Noise AGC Amplifier Die Data Sheet 10/20/2015

Application Note 5

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

AN-2622: Selecting an Analog Devices RF Low Noise Amplifier 09/04/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC463	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC463-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
