Features and Benefits
- Output Power: +4 dBm
- Sub-Harmonic Suppression: >25 dBc
- SSB Phase Noise: -142 dBc/Hz
- Single Supply: 5V@ 52 mA
- 16 mm2 Leadless SMT Package
The HMC443LP4(E) is an active miniature x4 frequency multiplier utilizing InGaP GaAs HBT technology in 4x4 mm leadless surface mount package. Power output is +4 dBm typical from a 5V supply voltage and varies little vs. input power, temperature and supply voltage. Suppression of undesired fundamental and sub-harmonics is >25 dBc typical with respect to output signal level. The low additive SSB phase noise of -142 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. The HMC443LP4(E) is ideal for use in LO multiplier chains allowing reduced parts count vs. traditional approaches.
- Fiber Optic
- Point-to-Point Radios
- Military Radar
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

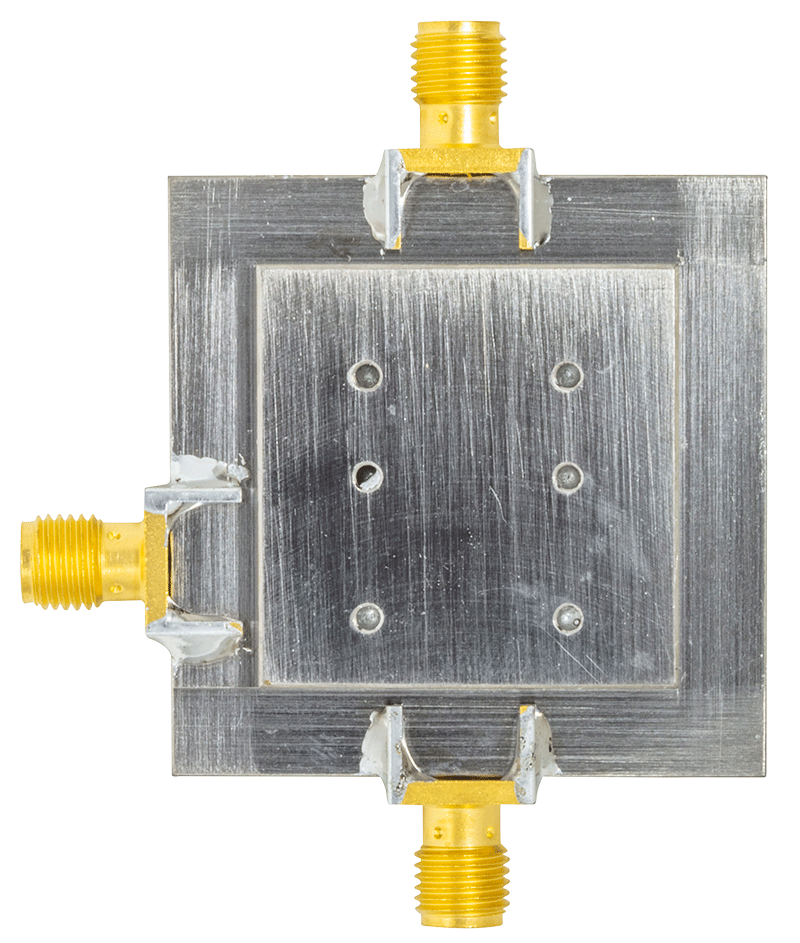

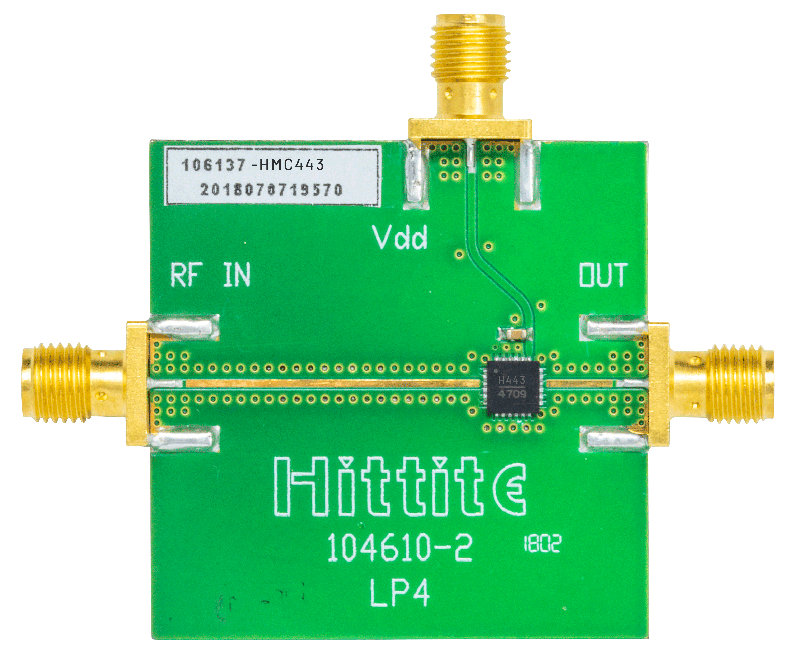

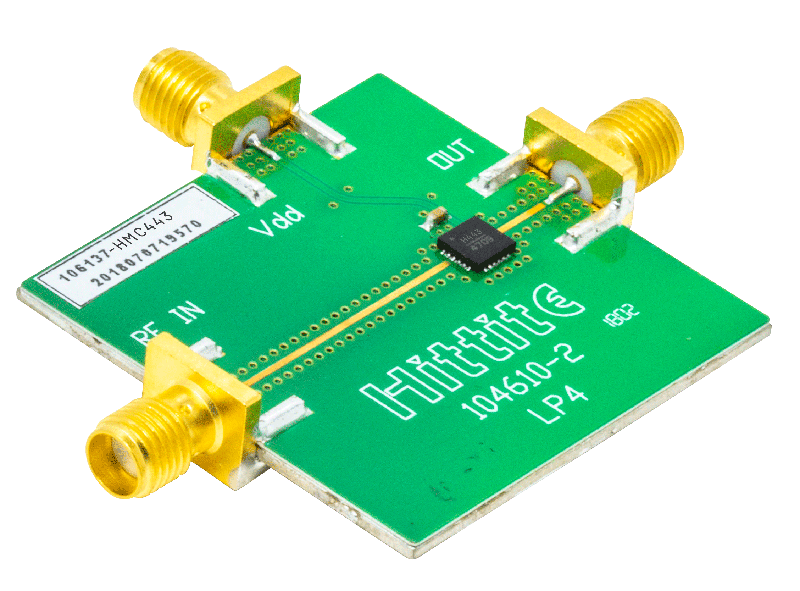

This page contains ordering information for evaluating the HMC443LP4.
The design files link includes the BOM, schematics, and Gerber files for the evaluation board.
