HMC432

InGaP HBT Divide-by-2 SMT, DC - 8 GHz

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price
price unavailable
Features
  • Ultra Low SSB Phase Noise: -148 dBc/Hz
  • Single-Ended I/O’s
  • Output Power: -3 to -9 dBm
  • Single DC Supply: +3V @ 42 mA
  • 9 mm² Ultra Small Package: SOT26
Additional Details
show more Icon

The HMC432(E) is a low noise Divide-by-2 Static Divider utilizing InGaP GaAs HBT technology in ultra small surface mount SOT26 plastic package. This device operates from DC (with a square wave input) to 8 GHz input frequency with a single +3V DC supply. Single-ended inputs and outputs reduce component count and cost. The low additive SSB phase noise of -148 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.

APPLICATIONS

  • UNII, Point-to-Point & VSAT Radios
  • 802.11a & HiperLAN WLAN
  • Fiber Optic
  • Cellular/3G Infrastructure
Part Models 4
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
HMC432
  • HTML
  • HTML
HMC432E
  • HTML
  • HTML
HMC432ETR
  • HTML
  • HTML
HMC432TR
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

EVAL-HMC432

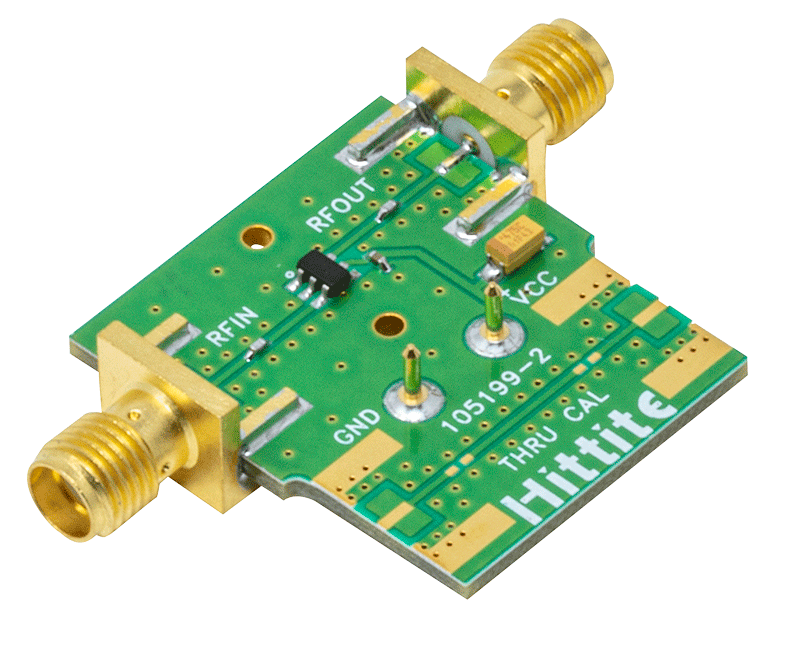

HMC432 Evaluation Board

reference details image

DC1075B

Clock Divider/Sine Wave 50Ω to CMOS Level Converter

zoom

DC1075B

Clock Divider/Sine Wave 50Ω to CMOS Level Converter

Clock Divider/Sine Wave 50Ω to CMOS Level Converter

Product Detail

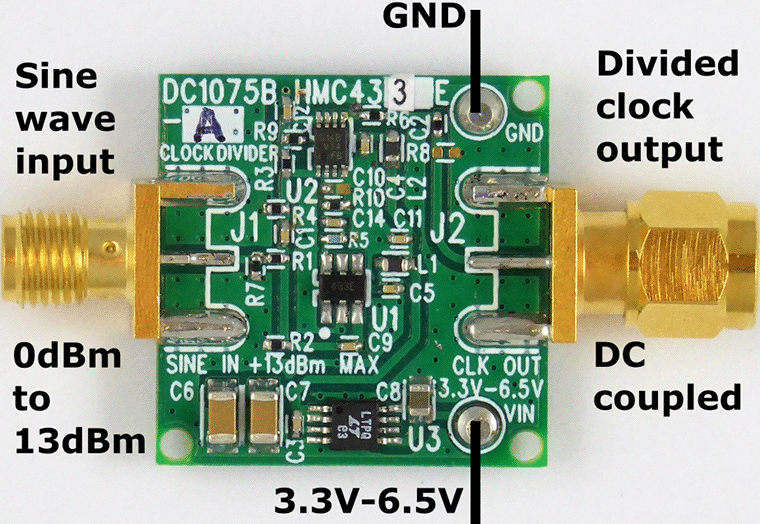

Demonstration circuit 1075B is a divide by 2/4/8 clock divider for use with high speed ADCs. Each assembly includes a clock divider followed by a re-timing stage used to produce sharp clock edges. Functionally, the DC1075B receives a high frequency sine wave which is attenuated and routed into the clock divider. The output of the clock divider is then routed to a D flip flop re-timing stage. This D flip flop is clocked by the original high frequency sine wave. This is critical to ensure signal integrity. The output of this re-timing stage is a CMOS signal suitable to be a clock source for high speed ADCs.

This circuit also is a model for designs involving FPGAs which serve as clock dividers. Whenever this is done, a D flip flop re-timing stage is required to ensure a low jitter clock signal.
