HMC426

Obsolete

SiGe Divide-by-4 SMT, DC - 4 GHz

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

Ultra Low SSB Phase Noise: -146 dBc/Hz
Wide Input Power Range: -15 to +10 dBm
Output Power: +3.5 dBm

Single DC Supply: +3V @ 13 mA
MS8 SMT Package

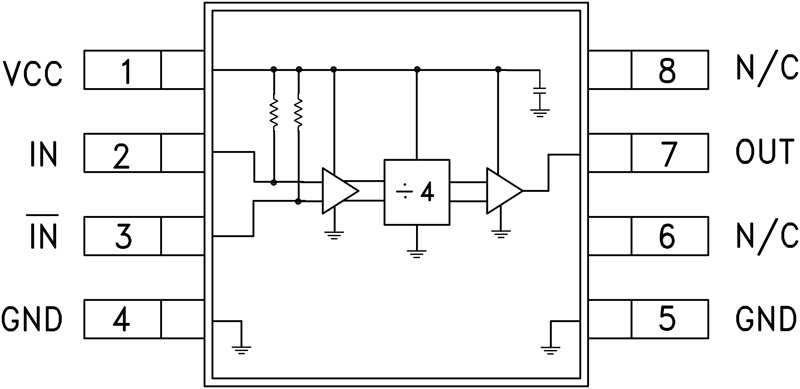

The HMC426MS8(E) is a low noise Divide-by-4 Static Divider utilizing SiGe technology in an 8 lead surface mount plastic package. This device operates from DC (with a square wave input) to 4.0 GHz input frequency while operating from a single +3V supply at only 13 mA. The low additive SSB phase noise of -146 dBc/Hz at 100 kHz offset helps the user maintain excellent system noise performance.

Applications

DBS/CATV Tuners
802.11x & HiperLAN WLAN
Fixed Wireless & WLL
Microwave & VSAT Radios
Cellular & 3G

Suggested Replacement Parts

InGaP HBT Divide-by-4 SMT, DC - 8 GHz

Part Models: 1
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC426 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC426MS8ETR	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC426MS8ETR	Obsolete	PDN15_0026_Form Material_Report
