HMC398

Obsolete

MMIC VCO SMT w/ Divide-by-8, 14 - 15 GHz

Viewing:

Overview

Pout: +7 dBm
Phase Noise: -105 dBc/Hz @100 KHz Typ.
No External Resonator Needed

Single Supply: 5V @ 325 mA
QSOP16G SMT Package

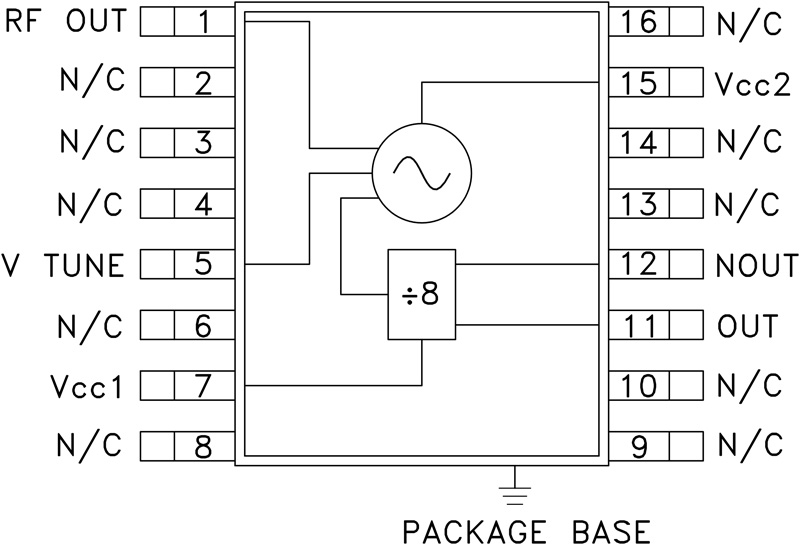

The HMC398QS16G(E) is a single chip GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC398QS16G(E) integrates a resonator, negative resistance device, varactor diode and a divide-by-8 prescaler. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +7 dBm typical from a 5V supply voltage. The voltage controlled oscillator is packaged in a low cost, surface mount 16 leaded QSOP package with an exposed base for improved RF and thermal performance. The HMC398QS16G(E) requires no external components.
