HMC370 Data Sheet3/22/2019
Features and Benefits
- Output Power: 0 dBm
- Sub-Harmonic Suppression: >22 dBc
- SSB Phase Noise: -140 dBc/Hz
- Single Supply: 5V@ 55 mA
- 16 mm2 Leadless SMT Package
The HMC370LP4(E) is an active miniature x4 frequency multiplier utilizing InGaP GaAs HBT technology in a 4x4 mm leadless surface mount package. Power output is 0 dBm typical from a 5V supply voltage and varies little vs. input power, temperature and supply voltage. Suppression of undesired fundamental and sub-harmonics is >22 dBc typical with respect to output signal level. The low additive SSB phase noise of -140 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. The HMC370LP4(E) is ideal for use in LO multiplier chains allowing reduced parts count vs. traditional approaches.
- Point-to-Point & VSAT Radios
- Fiber Optic
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

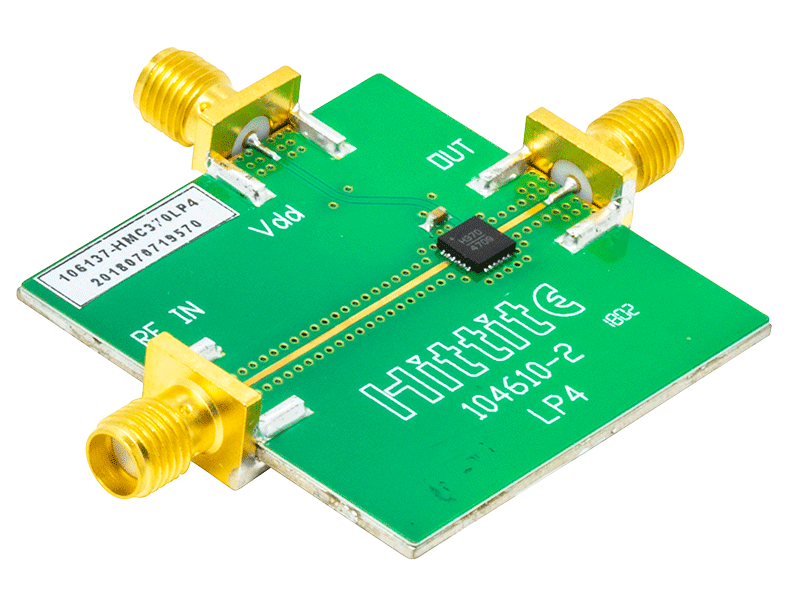

This page contains ordering information for evaluating the HMC370LP4.
The design files link includes the BOM, schematics, and Gerber files for the evaluation board.
