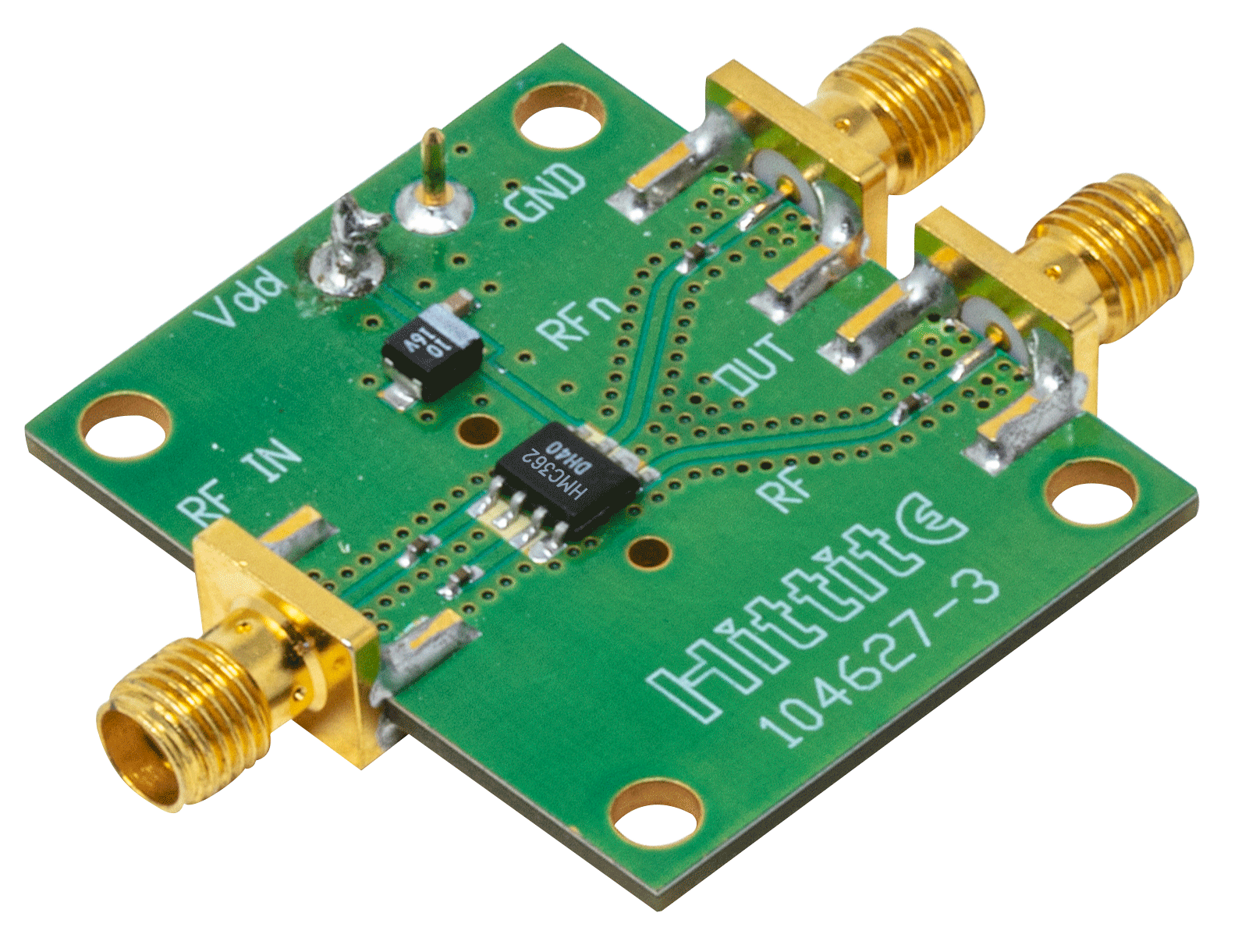

HMC362S8G

SMT GaAs HBT MMIC Divide-by-4, DC - 12 GHz

PRODUCTION

HMC362S8G Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price

price unavailable

Features

Ultra Low SSB Phase Noise: -149 dBc/Hz
Wide Bandwidth
Output Power: -6 dBm

Single DC Supply: +5V
S8G SMT Package

Additional Details

The HMC362S8G & HMC362S8GE are low noise Divide-by-4 Static Dividers with InGaP GaAs HBT technology in 8 lead surface mount plastic packages. This device operates from DC (with a square wave input) to 12 GHz input frequency with a single +5V DC supply. The low additive SSB phase noise of -149 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.

APPLICATIONS

Satellite Communication Systems
Fiber Optic
Point-to-Point and Point-to-Multi-Point Radios
VSAT

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price

price unavailable

Technical Documents 2

HMC362S8G/HMC362S8GE: SMT GaAs HBT MMIC Divide-by-4, DC - 12 GHz Data Sheet 04/20/2021

AN-1463: Frequency Divider Operation and Compensation with No Input Signal (Rev.A) 06/01/2017

Reference Materials 6

PCN: MS, QS, SOT, SOIC Packages - Sn/Pb Plating Vendor Change 01/17/2014

HMC Legacy PCN: S## and S##E packages - Relocation of pre-existing production equipment to new building 02/01/2013

Package/Assembly Qualification Test Report: Plastic Encapsulated SOIC (QTR: 02018 REV: 01) 10/29/2015

Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228) 10/29/2015

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

SOIC 8 Tape Specification (S8, S8G) 04/01/2015

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC362S8G	8-Lead SOIC w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC362S8GE	8-Lead SOIC w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC362S8GETR	8-Lead SOIC w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC362S8GTR	8-Lead SOIC w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
