Overview

Features and Benefits

  • Ultra Low SSB Phase Noise:
    -148 dBc/Hz
  • Wide Bandwidth
  • Output Power: 3 dBm
  • Single DC Supply: +5V
  • 8 Lead Hermetic SMT Package

Product Details

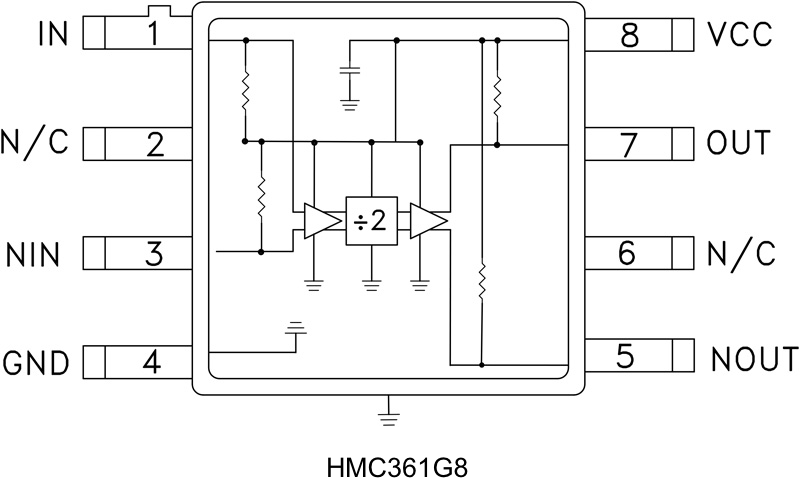

The HMC361G8 is a low noise N = 2 static divider in an 8 lead glass/metal surface mount (hermetic) package. This device operates from 10 MHz (with a square wave input) to 13 GHz input frequency with a single +5V DC supply. The low additive SSB phase noise of -148 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.

Applications

  • Point-to-Point / Multi-Point Radios
  • VSAT Radio
  • Fiber Optic
  • Test Equipment
  • Space & Military

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
