HMC358 Data Sheet3/22/2019
Overview
Features and Benefits
- Pout: +11 dBm
- Phase Noise: -110 dBc/Hz @100 KHz
- No External Resonator Needed
- Single Supply: 3V @ 100 mA
- 15 mm2 MSOP8G SMT Package
Product Details
The HMC358MS8G(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC358MS8G(E) integrates resonators, negative resistance devices, varactor diodes, and buffer amplifiers. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is 11 dBm typical from a 3V supply voltage. The voltage controlled oscillator is packaged in a low cost, surface mount 8 lead MSOP package with an exposed base for improved RF and thermal performance.
APPLICATIONS
- UNII & Point-to-Point Radios
- 802.11a & HiperLAN WLAN
- VSAT Radios
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

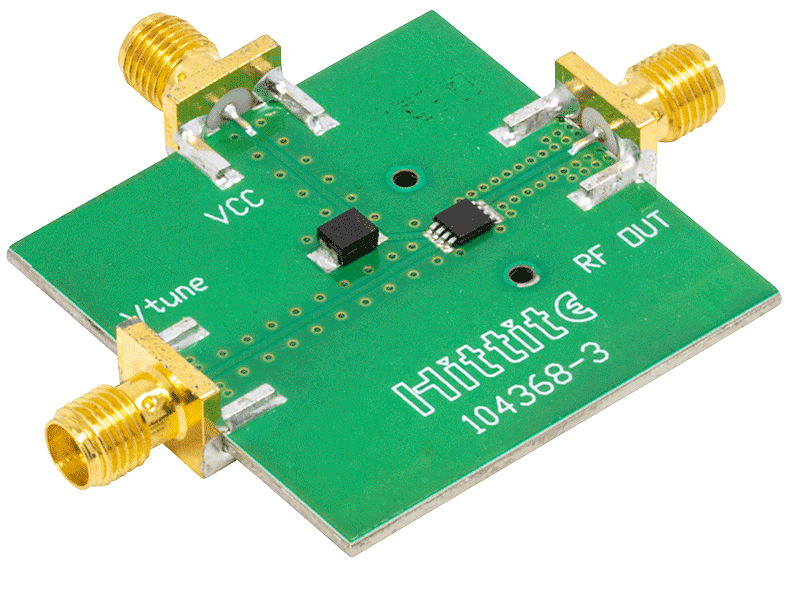

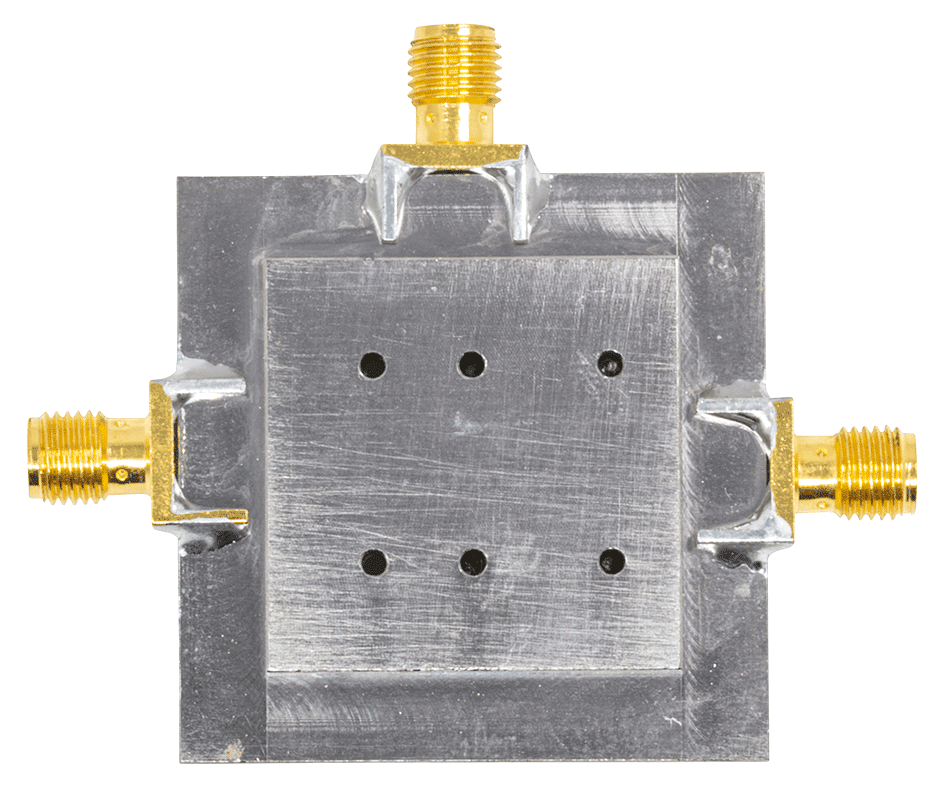

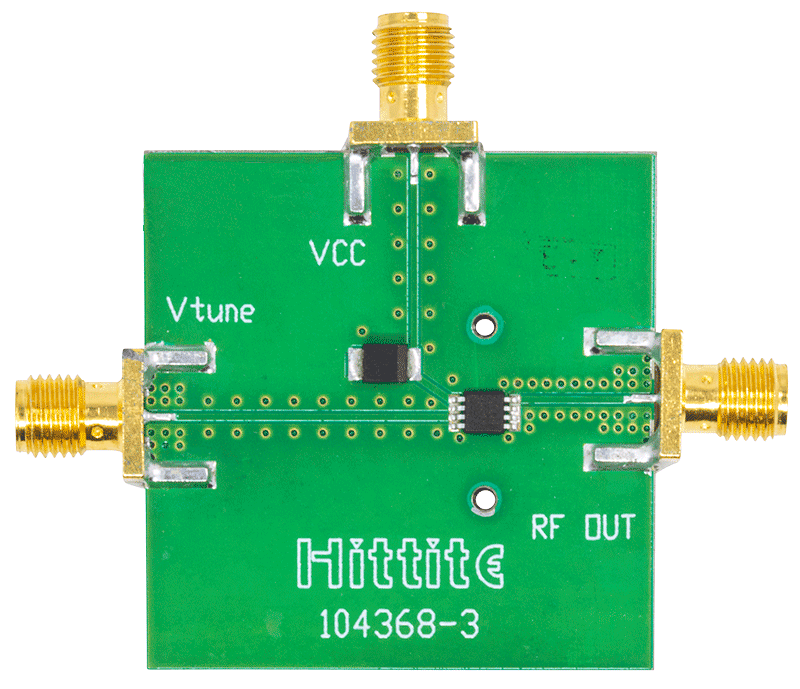

Evaluation Kits (1)
Documentation & Resources
-
Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228)10/29/2015
-
Package/Assembly Qualification Test Report: MS8G (QTR: 2014-00393)10/29/2015
-
PCN: MS, QS, SOT, SOIC Packages - Sn/Pb Plating Vendor Change1/17/2014
-
HMC Legacy PCN: MS##, MS##E and MS##G,MS##GE packages - Relocation of pre-existing production equipment to new building2/1/2013
Tools & Simulations
Design Tools
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC358MS8GE | Material Declaration | Reliability Data | 8-Lead MSOP w/ EP | |
| HMC358MS8GETR | Material Declaration | Reliability Data | 8-Lead MSOP w/ EP | |
| Wafer Fabrication Data |
