Overview

Features and Benefits

  • RoHS compliant product
  • 4 dB LSB steps to 12 dB
  • Single positive control per bit, 0/+3V or +5V
  • Typical step error : ±0.3 dB
  • Miniature SOT 26 package: 9 mm2

Product Details

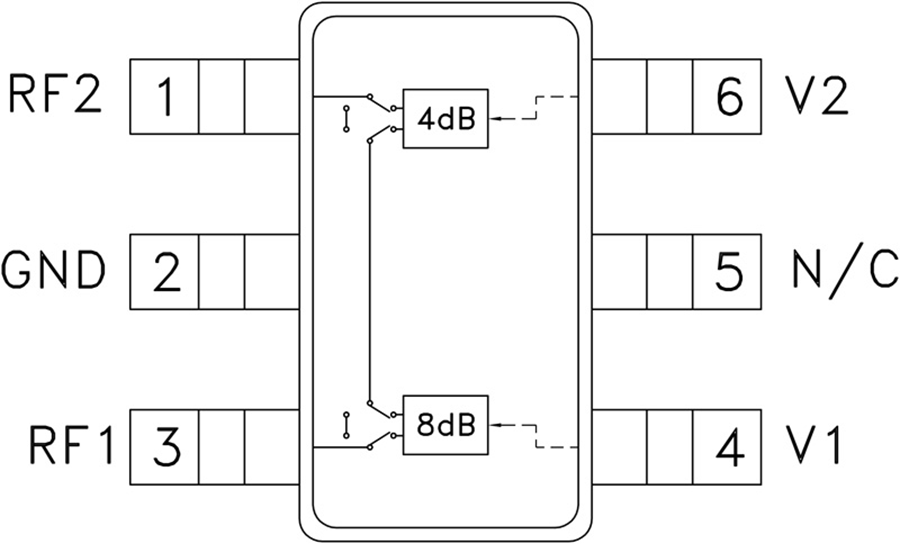

The HMC291SE is a general purpose broadband 2-bit positive control silicon IC digital attenuator in 6 lead SOT26 surface mount plastic package. The insertion loss is typically in between 0.4 dB - 1 dB through operating frequency range. The attenuator bit values are 4 (LSB) and 8 dB for a total attenuation of 12 dB. State error is excellent at ± 0.4 dB typical with an IIP3 of up to 57 dBm. Two bit control voltage inputs, toggled between 0V and +3V or +5V, are used to select each attenuation state at less than 25 µA each. A single VDD supply voltage of +3V to +5V applied through an external 4.7K Ohm resistor is required.

Applications

  • Cellular
  • PCS, ISM, MMDS
  • WLL handset & base station

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

Tools & Simulations

S-Parameter

Design Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
HMC291SE Material Declaration Reliability Data 6-Lead SOT-23
HMC291SETR Material Declaration Reliability Data 6-Lead SOT-23
Wafer Fabrication Data
