HMC241AQS16E Data Sheet10/20/2015582 K
Features and Benefits
- RoHS Compliant Product
- Low Insertion Loss (2 GHz): 0.7 dB
- Single Positive Supply: VDD = +5V
- Integrated 2:4 TTL Decoder
- 16 Lead QSOP Package

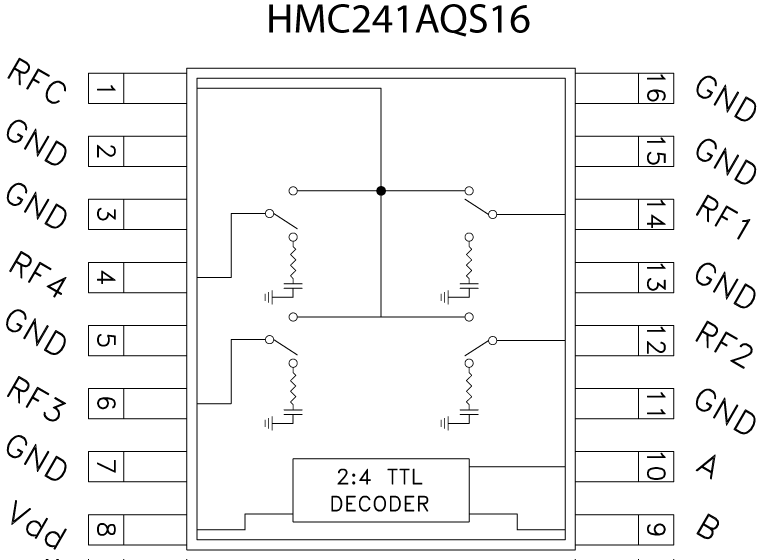

The HMC241AQS16 & HMC241AQS16E are general purpose low-cost non-reflective SP4T switches in 16-lead QSOP packages. Covering DC - 3.5 GHz, this switch offers high isolation and has a low insertion loss of 0.7 dB at 2 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 2:4 decoder is integrated on the switch requiring only 2 control lines and a positive bias to select each path, replacing 8 control lines normally required by GaAs SP4T switches.
- Base Stations & Portable Wireless
- Wireless Local Loop
- Test Equipment
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
This page contains ordering information for evaluating the HMC241AQS16.
Documentation & Resources
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/20189M
Semiconductor Qualification Test Report: PHEMT-J (QTR: 2013-00285)10/29/20151 M
QSOP 16 Tape Specification (QS16, QS16G)4/1/2015422 K
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|HMC241AQS16E||Material Declaration||Reliability Data||16-Lead QSOP|
|HMC241AQS16ETR||Material Declaration||Reliability Data||16-Lead QSOP|
|Wafer Fabrication Data|
