HMC231

Obsolete

High Isolation SPST Hermetic SMT Switch, DC - 6 GHz

Data Sheet Product Selection Table
Viewing:

Overview

  • Isolation: 55 dB @ 2 GHz
    42 dB @ 6 GHz
  • Insertion Loss: 2 dB Typical @ 6 GHz
  • Non-Reflective Input/Output
  • Hermetic Surface Mount Package

The HMC231G7 is a broadband high isolation non-reflective GaAs MESFET SPST switch in a hermetic surface mount package. Covering DC to 6 GHz, the switch features >55 dB isolation up to 2 GHz and >42 dB isolation up to 6 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. When the "OFF" state is selected, both RF1 and RF2 ports are terminated in 50 Ohms.

Applications

  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military Radios, Radar & ECM
  • Space Systems
  • Test Instrumentation

Suggested Replacement Parts

HMC232A RECOMMENDED FOR NEW DESIGNS

GaAs, SPDT Switch, Nonreflective, 100 MHz to 12 GHz

HMC231
High Isolation SPST Hermetic SMT Switch, DC - 6 GHz

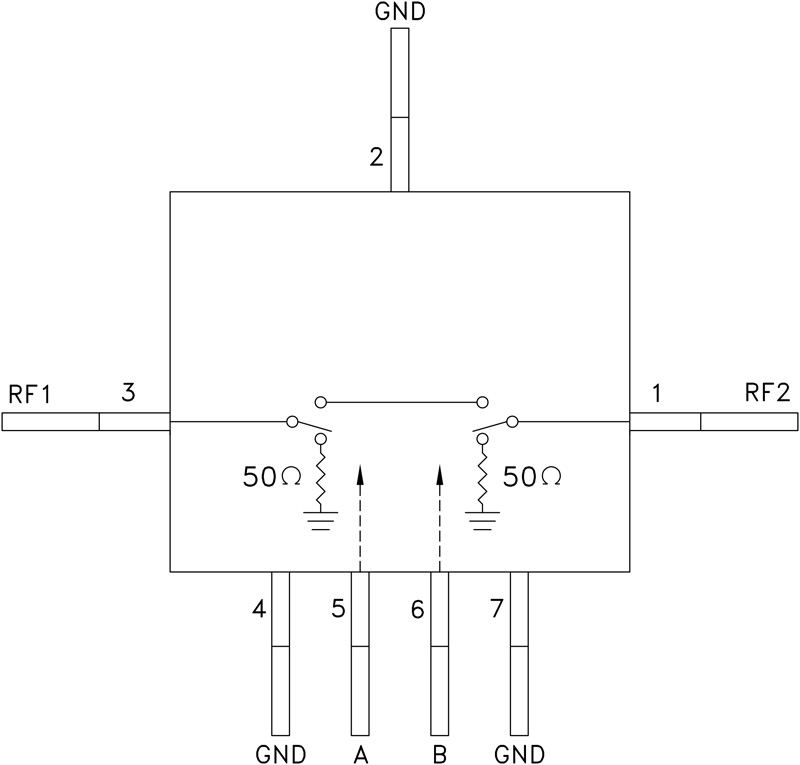

hmc231g7_fbl
