HMC213B
1.5 GHz to 4.5 GHz, GaAs, MMIC, Double Balanced Mixer
Top
Overview
Features and Benefits
- Passive: no dc bias required
- Conversion loss: 10 dB typical Input IP3: 21 dBm typical
- RoHS compliant, ultraminiature package: 8-lead MSOP
Product Details
The HMC213BMS8E is an ultraminiature double balanced mixer in a plastic, 8-lead mini small outline package (MSOP). This passive monolithic microwave integrated circuit (MMIC) mixer is constructed of gallium arsenide (GaAs) Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an upconverter, downconverter, biphase demodulator or modulator, or phase comparator. The consistent MMIC performance improves system operation and ensures regulatory compliance.
Applications
- Base stations
- Personal Computer Memory Card International Association (PCMCIA) transceivers
- Wireless local loops
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

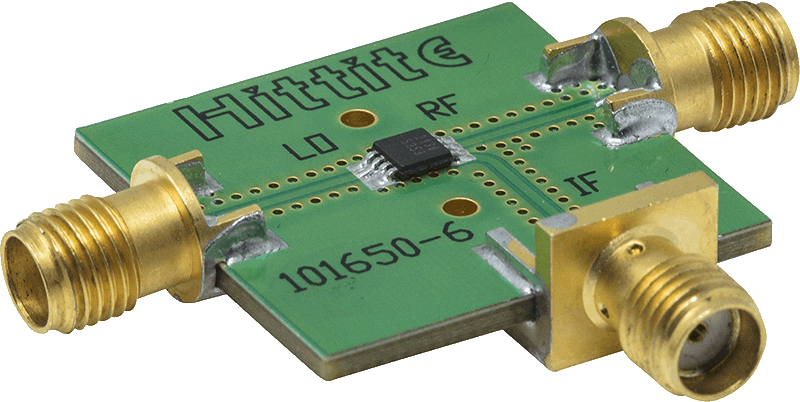

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
S-Parameter
ZIP
HMC213BMS8E S-Parameters
54.22 K
Design Tool
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

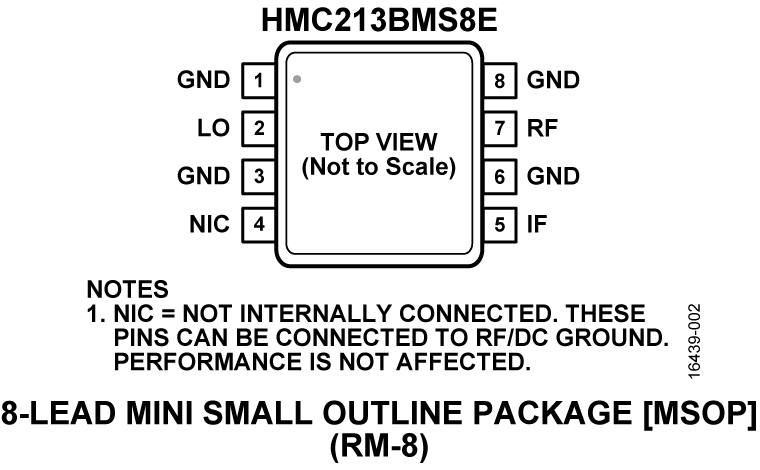

| HMC213BMS8E | Material Declaration | Reliability Data | 8-Lead MSOP | |
| HMC213BMS8ETR | Material Declaration | Reliability Data | 8-Lead MSOP | |
| Wafer Fabrication Data |
