HMC207A

Obsolete

Passive DBL-BAL Mixer SMT, 0.7 - 2.0 GHz

Part Models
4
1ku List Price
price unavailable
Viewing:

Part Details

  • Conversion Loss: 9 dB
  • LO / IF Isolation: 45 dB
  • LO / RF Isolation: 40 dB
  • IP3 (Input): +17 dBm
HMC207A
Passive DBL-BAL Mixer SMT, 0.7 - 2.0 GHz

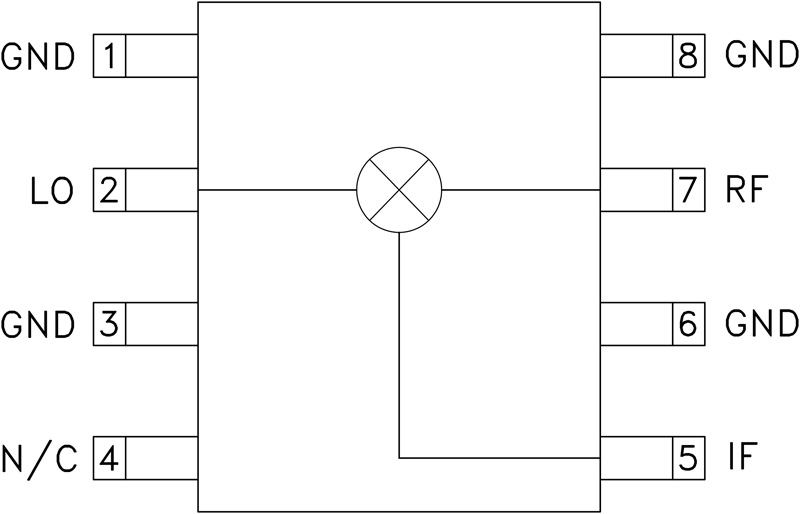

hmc207as8_fbl
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Obsolete Data Sheet 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
HMC685 LAST TIME BUY BiCMOS Mixer w/Integrated LO Amplifier, 1.7 - 2.2 GHz
HMC684 LAST TIME BUY BiCMOS Mixer w/Integrated LO Amplifier, 700 - 1000 MHz
ADL5812 Obsolete Dual High IP3, 700 MHz TO 2800 MHz, Double Balanced, Passive Mixer, IF Amp, and Wideband LO Amp
ADL5811 Obsolete High IP3, 700 MHz to 2800 MHz, Double Balanced, Passive Mixer, IF Amplifier, and Wideband LO Amplifier
