HMC1168
12.47 GHz to 13.72 GHz MMIC VCO with Half Frequency Output
Top
Overview
Features and Benefits
- Dual output frequency range
- fOUT = 12.47 GHz to 13.72z GH
- fOUT/2 = 6.235 GHz to 6.86z GHz
- Output power (POUT): 10 dBm
- Single-sideband (SSB) phase noise: −113 dBc/Hz at 100 kHz
- No external resonator needed

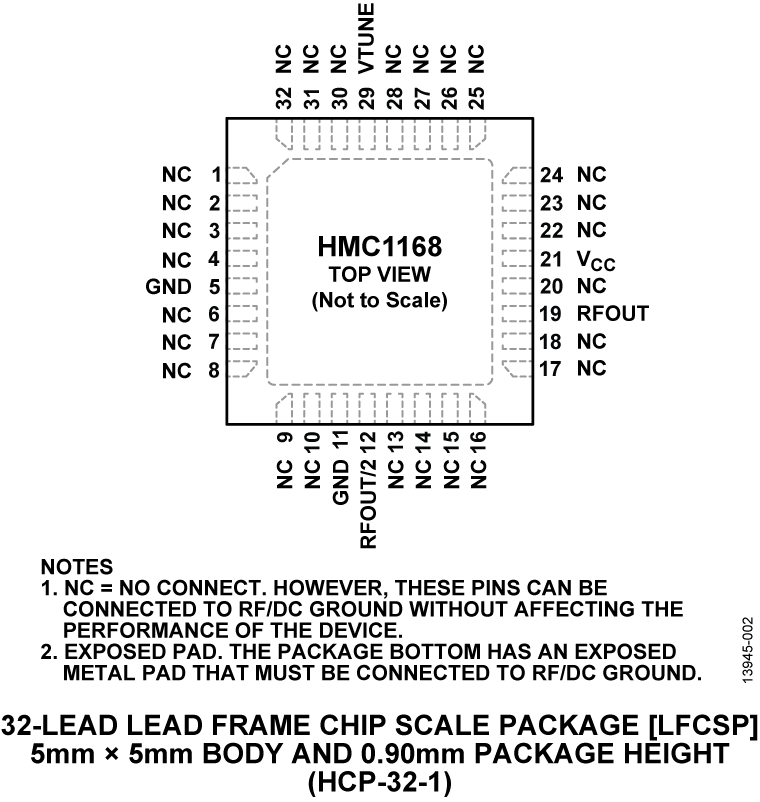

- RoHS-compliant, 5 mm × 5 mm, 32-lead LFCSP: 25 mm²
Product Details

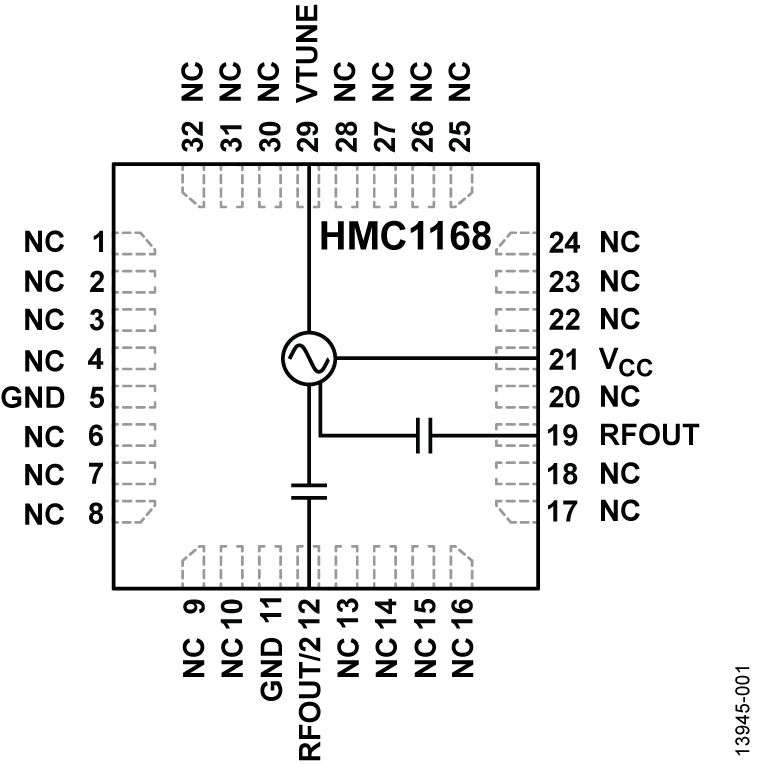

The HMC1168 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.
Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature
The output power is 10 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS compliant LFCSP and requires no external matching components.
Applications
- Point to point and multipoint radios
- Test equipment and industrial controls
- Very small aperture terminals (VSATs)
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
Design Tool
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC1168LP5E | Material Declaration | Reliability Data | 32-Lead QFN (5mm x 5mm w/ EP) | |
| HMC1168LP5ETR | Material Declaration | Reliability Data | 32-Lead QFN (5mm x 5mm w/ EP) | |
| Wafer Fabrication Data |
