Overview

Features and Benefits

  • Dual output frequency range
    fOUT = 10.38 GHz to 11.30 GHz
    fOUT/2 = 5.19 GHz to 5.65 GHz
  • Power output (POUT): 8 dBm
  • Single-side band (SSB) phase noise
    −86 dBc/Hz typical at 10 kHz
    −114 dBc/Hz typical at 100 kHz
  • No external resonator needed

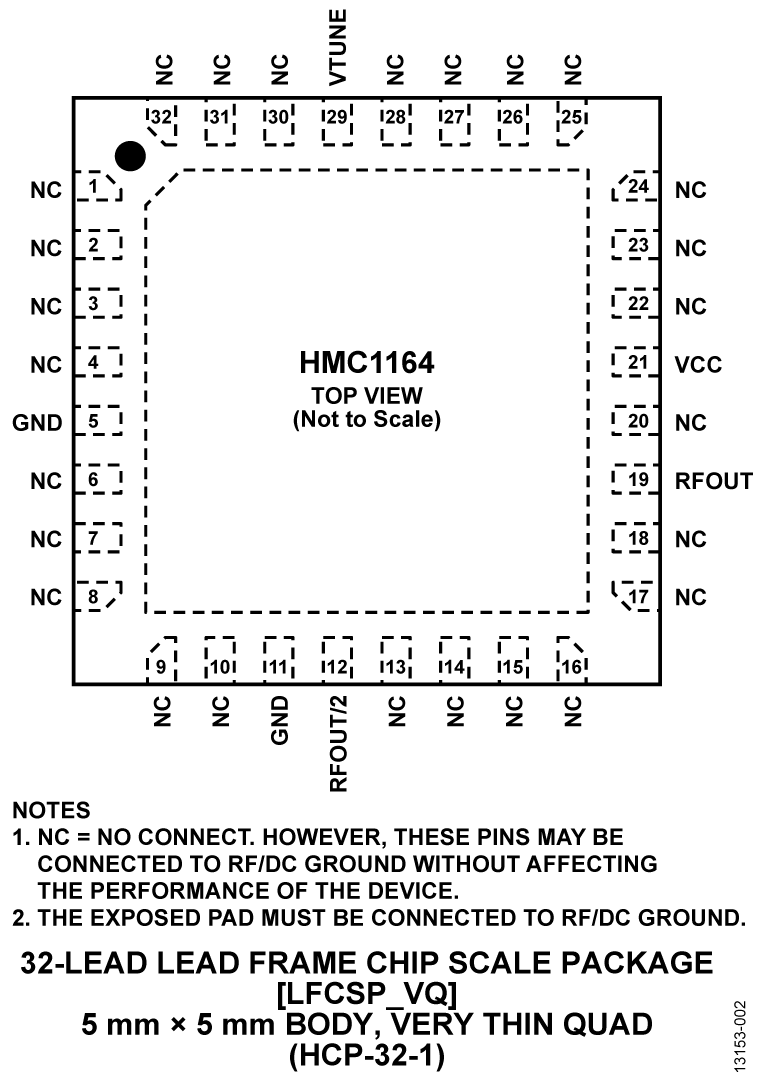

  • 32-lead, RoHS compliant, 5 mm × 5 mm LFCSP (25 mm²)

Product Details

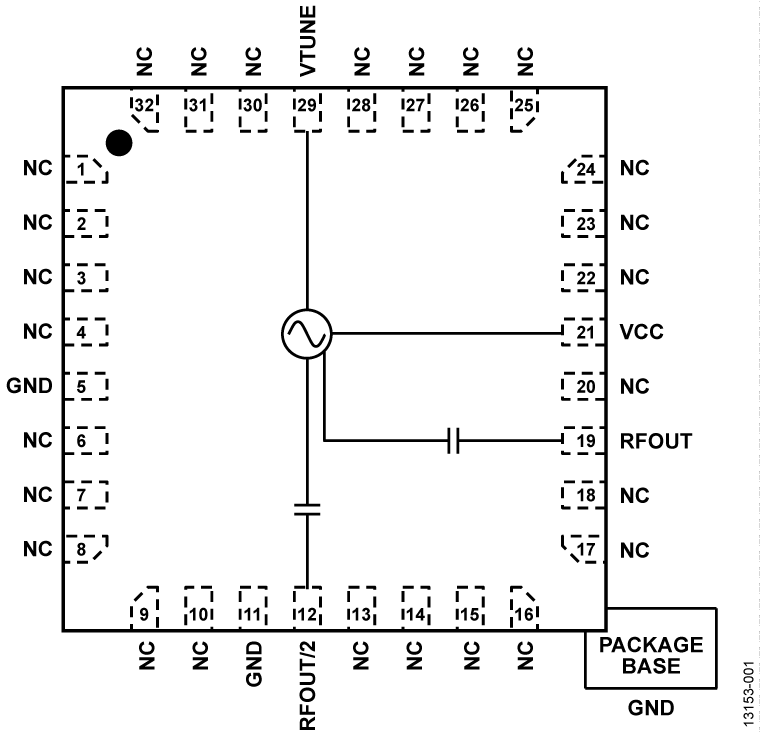

The HMC1164 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.

The power output is 8 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS-compliant LFCSP package and requires no external matching components.

Applications

  • Point to point and multipoint radios
  • Test equipment and industrial controls
  • Very small aperture terminals (VSATs)

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
