DS8005

Smart Card Interface

Show More showmore-icon

Dual SIM Card Interface Multiplexes Access to Two Smart Cards for Lower Power, Board Space, and BOM Cost

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 3
1ku List Price Starting From $1.62
Features
  • Analog Interface and Level Shifting for IC Card Communication
  • ±8kV (min) ESD (HBM) Protection on Card Interfaces
  • Ultra-Low Stop-Mode Current, Less Than 10nA Typical
  • Internal IC Card Supply-Voltage Generation
    • 5.0V ±5%, 80mA (max)
    • 3.0V ±8%, 65mA (max)
    • 1.8V ±10%, 30mA (max)
  • Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
  • I/O Lines from Host Directly Level Shifted for Smart Card Communication
  • Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
  • High-Current, Short-Circuit and High-Temperature Protection
  • Low Active-Mode Current
  • Internal Multiplexing Allows One ISO 7816 UART Implementation to Control Two Smart Card Sockets
Additional Details
show more Icon

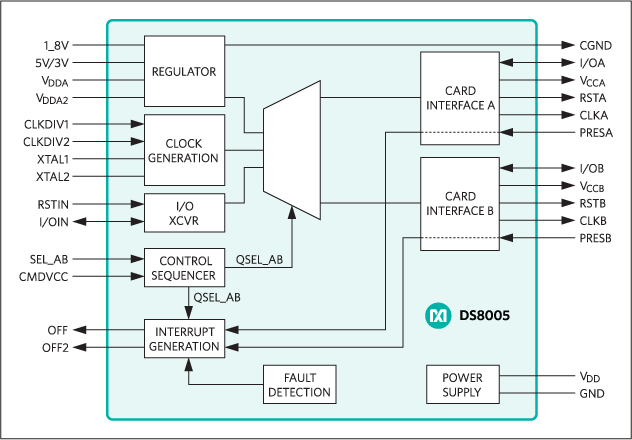

The DS8005 dual smart card interface is a low-cost, dual analog front-end for an IC card reader interface that needs to communicate with two smart cards in a mutually exclusive fashion. The analog interface is designed for use in ISO 7816, EMV®, and B-CAS applications. The device is functionally similar to two DS8024s with external multiplexing to select the active interface, but also includes low power and 1.8V card support. Additionally, the device is designed for applications where the C4/C8 (AUX1/AUX2) contacts are not required on either card interface.

The device is provided in a 28-pin SO and TSSOP packages. The pinout is backwards compatible with the DS8313, allowing applications to use the same footprint and PCB for applications that communicate with either one or two smart cards.

The device is designed to be used with microcontrollers that contain an ISO 7816 UART, or have the bandwidth to run this protocol in software by bit-banging IO ports. If the microcontroller does not have the capability of running the ISO 7816 UART, the DS8007 is the more appropriate product selection.

Applications

  • Access Control
  • Financial Terminals
  • Pay Television
  • Set-Top Box Conditional Access
  • Telecommunications
Show More Arrow image
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 3
1ku List Price Starting From $1.62
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

DS8005

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/10/2017
English

DS8005: Smart Card Interface Data Sheet (Rev.2)

Open PDF File

redirect
876.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/12/2010
Japanese

DS8005: スマートカードインタフェース Data Sheet (Rev.0)

Open PDF File

redirect
731.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 04/01/2013
English
UG-5388: Getting Started with the DS8005 Evaluation Kit redirect icon

684.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
DS8005 Reliability Data redirect icon

19.64K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS8005-RJX+ Thin Shrink Small-Outline Package external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
DS8005-RRX+ 28-SOIC_W-300_MIL external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
DS8005-RRX+T 28-SOIC_W-300_MIL external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 11, 2018

- 1754N

ASSEMBLY

DS8005-RJX+

PRODUCTION

pdf

pcn_1754n

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 11, 2018

- 1754N

arrow down

ASSEMBLY

DS8005-RJX+

PRODUCTION

pdf

pcn_1754n

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Product1
DS8313
popup image
Cart

Smart Card Interface

Smart Card Readers4
DS8007
popup image
Cart

PRODUCTION

Multiprotocol Dual Smart Card Interface

DS8023
popup image
Cart

PRODUCTION

Smart Card Interface

DS8024
popup image
Cart

PRODUCTION

Smart Card Interface

DS8113
popup image
Cart

PRODUCTION

Smart Card Interface

Evaluation Kits 1

DS8005-KIT

Evaluation Kit for the DS8005

zoom

DS8005-KIT

Evaluation Kit for the DS8005

download icon

Download

 print icon

Print
DS8005-KIT
Evaluation Kit for the DS8005

Features and Benefits

  • Quickly Develop Smart Card Applications Using Maxim's Example Code and Easily Port to Any MAXQ RISC Microcontroller
  • 2-Line LCD Screen for Graphical User Interface
  • USB Interface for Prototyping USB Card Reader Applications
  • Two Card Sockets (One Full-Size Socket and One SIM Socket) for Prototyping Smart Card Applications
  • Single 5V Power-Supply Input with an On-Board 3.3V Regulator
  • Card Interface Pins Brought Out to Headers for Customer Card Socket
  • Pushbuttons for Reset, Interrupt, and Application Control
  • Level-Shifted RS-232 Interface
  • Schematics and BOM Provides a Proven Solution for New Designs
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The DS8005 evaluation kit (EV kit) conveniently evaluates the capabilities of the DS8005 dual smart card interface chip. The EV kit includes a MAXQ622 16-bit RISC microcontroller to control the smart card interface. One full-size socket, as well as one SIM card socket, is included to communicate with a 1.8V, 3V, or 5V IC card. An LCD screen and/or serial port can provide detailed feedback on program operations and aids in debugging applications. In addition, the MAXQ622 has a built-in USB serial interface engine (SIE) to allow USB card reader applications.

Applications

  • Access Control
  • Financial Terminals
  • Pay Television
  • Set-Top Box Conditional Access
  • Telecommunications

Resources

pdf icon

PDF

UG-5388: Getting Started with the DS8005 Evaluation Kit Download

684.00K

Show More Arrow image

Evaluation Kits1

DS8005-KIT

Evaluation Kit for the DS8005
