DS8024

Smart Card Interface

Industry-Standard Smart Card Interface Provides Robust Communication

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price Starting From $1.61

Features

Analog Interface and Level Shifting for IC Card Communication
±8kV (min) ESD (IEC) Protection on Card Interfaces
Internal IC Card Supply-Voltage Generation:
- 5.0V ±5%, 80mA (max)
- 3.0V ±8%, 65mA (max)
Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
I/O Lines from Host Directly Level Shifted for Smart Card Communication
Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
High-Current, Short-Circuit and High-Temperature Protection

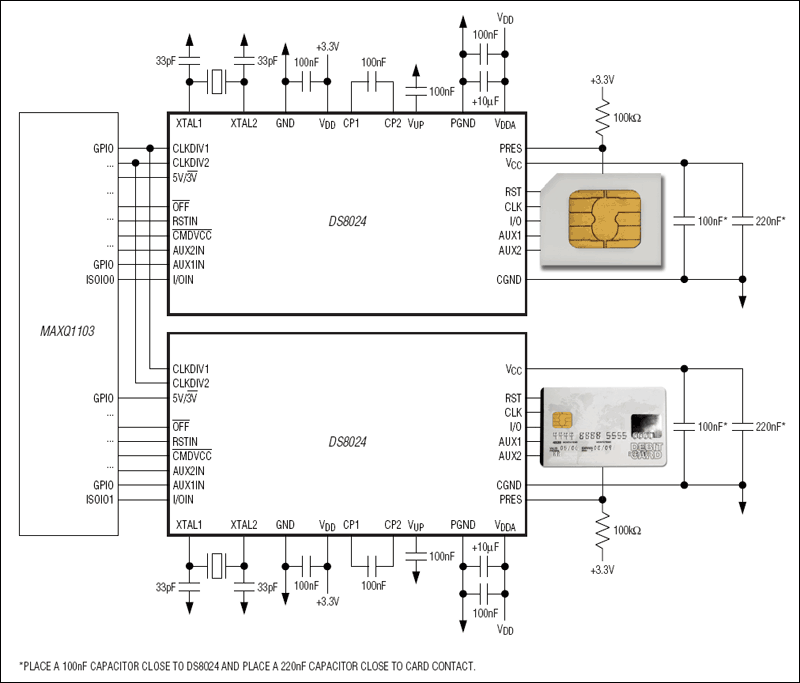

Additional Details

The DS8024 smart card interface IC is a low-cost, analog front-end for a smart card reader, designed for all ISO 7816, EMV^®, and GSM11-11 applications. The DS8024 is a pin-for-pin drop-in replacement for the NXP TDA8024 and is offered in 28-pin TSSOP and SO packages.

Applications requiring support for 1.8V smart cards or requiring low power should consider the DS8113, which achieves lower active- and stop-mode power with minimal changes to application hardware and software.

Applications

Access Control
Automated Teller Machines
Banking Applications
Debit/Credit Payment Terminals
Pay/Premium Television
PIN Pads
POS Terminals
Set-Top Box Conditional Access
Telecommunications

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price Starting From $1.61

Technical Documents 5

DS8024: Smart Card Interface Data Sheet (Rev.4) 04/30/2013

DS8024: Errata Sheet

DS8024 Reliability Data 01/12/2023

UG-4312: Getting Started with DeepCover Secure Microcontroller (MAXQ1850) EV KIT and the CrossWorks Compiler for the MAXQ30 10/17/2008

UG-4273: Getting Started with the DeepCover Secure Microcontroller (MAXQ1103) Evaluation Kit and the CrossWorks Compiler for the MAXQ30 09/22/2008

Designing Next-Generation Payment Terminals That Meet PCI PTS 3.x Requirements 05/19/2011

Design Resources 5

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
DS8024-RJX+	Thin Shrink Small-Outline Package	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
DS8024-RJX+T&R	Thin Shrink Small-Outline Package	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
DS8024-RRX+	28-SOIC_W-300_MIL	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
DS8024-RRX+T&R	28-SOIC_W-300_MIL	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
DS8024M-RJX+T	Thin Shrink Small-Outline Package	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
