DS8007

Multiprotocol Dual Smart Card Interface

Smart Card Power Supply and Communication for Two Physically Separate Interfaces

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Integrated ISO 7816 UART Provides Complete Interface/Control for Two Separate Smart Card Devices
8kV (min) ESD Protection on Card Interfaces
Internal IC Card Supply Voltage Generation
- 5.0V ±5%, 65mA (max)
- 3.0V ±8%, 50mA (max)
- 1.8V ±10%, 30mA (max)
Automatic Card Activation, Deactivation, and Data Communication Controlled by Dedicated Internal Sequencer
Host Interface Through an 8-Bit Parallel Bus (User-Selectable Multiplexed or Nonmultiplexed Modes)
Chip Select and Three-State Bus Allow Multiple Devices (Card Readers and Memories) on Bus
8-Character Receive FIFO with Optional Programmable Depth/Threshold
I/O Interface Pin to External ISO 7816 UART for Auxiliary Interface
Separate Card Clock Generation (Up to 10MHz) with 2x Frequency Doubling
Selectable Card Clock Stop High, Stop Low, or Internally Generated 1.25MHz (for Card Power-Down)
EMV-Certified Reference Design and Evaluation Kit Available (DS8007-KIT)

Product Details

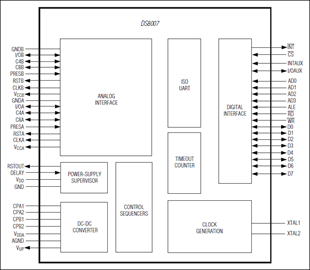

The DS8007 multiprotocol dual smart card interface is a low-cost, dual smart card reader interface supporting all ISO 7816, EMV®, and GSM11-11 requirements. Through its 8-bit parallel bus and dedicated address selects (AD3–AD0), the DS8007 can easily and directly connect to the nonmultiplexed byte-wide bus of a Maxim secure microcontroller. Optionally, the parallel bus can be multiplexed to allow direct access to the multiplexed bus of an 80C51-compatible microcontroller through MOVX memory addressing.

One integrated ISO 7816 UART is multiplexed among the interfaces to allow high-speed automatic smart card processing with each card-possessing, independent, variable, baud-rate capability. The card interface is controlled by internal sequencers that support automatic activation and deactivation sequencing, handling all actions required for T = 0, T = 1, and synchronous protocols. Emergency deactivation is also supported in case of supply dropout. A third card is supported through the auxiliary I/O. The same set of I/O can optionally be used as additional serial interface for the UART.

The DS8007 provides all electrical signals necessary to interface with two smart cards. The integrated voltage converter ensures full cross-compatibility between 1.8V/3V/5V cards and a 1.8V/3V/5V environment, and allows operation within a 2.7V to 6V supply voltage range.

Applications

Access Control
Banking Applications (Point-of-Sale Terminals, Debit/Credit Payment Terminals, PIN Pads, Automated Teller Machines)
Pay Television
Telecommunications

Product Categories

Interface and Isolation
- Smart Card Readers

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

DS8007-KIT

DS8007 EMV Evaluation Kit

DS8007-KIT

View Detailed Evaluation Kit Information

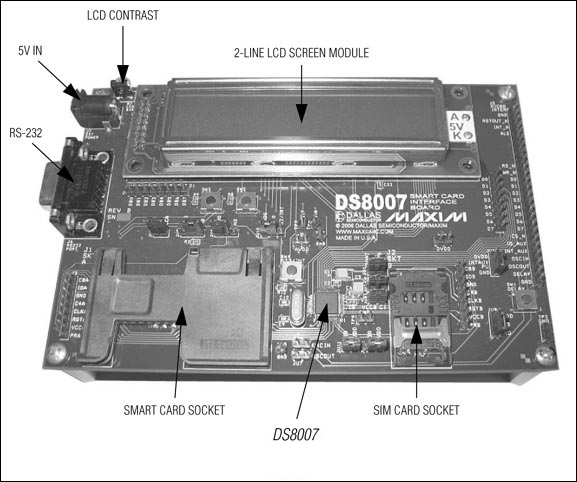

The DS8007 evaluation kit (EV kit) is a proven platform to conveniently evaluate the capabilities of the DS8007 smart card interface chip. It includes a DS5002FP secure microcontroller to control the smart card interface. Two card sockets are included (one full size, one SIM size) to communicate with any 1.8V, 3V, or 5V IC card. An LCD screen can provide detailed feedback on program operation and aids in debugging applications.

The DS8007 EV kit passed EMV™ 4.0 Level 1 Interface Module Certification by an EMV accredited certification laboratory for Type 1 approval testing. All Level 1 tests have passed using DS8007 EV kit platform.

EMVCo Disclaimer
EMVCo approval of the interface module (IFM) contained in this Terminal shall mean only that the IFM has been tested in accordance and for sufficient conformance with the EMV Specifications, Version 3.1.1, as of the date of testing. EMVCo approval is not in any way an endorsement or warranty regarding the completeness of the approval process or the functionality, quality or performance of any particular product or service. EMVCo does not warrant any products or services provided by third parties, including, but not limited to, the producer or provider of the IFM and EMVCo approval does not under any circumstances include or imply any product warranties from EMVCo, including, without limitation, any implied warranties of merchantability, fitness for purpose, or non-infringement, all of which are expressly disclaimed by EMVCo. All rights and remedies regarding products and services which have received EMVCo approval shall be provided by the party providing such products or services, and not by EMVCo and EMVCo accepts no liability whatsoever in connection therewith.

Applications

Access Control
Banking Applications (Point-of-Sale Terminals, Debit/Credit Payment Terminals, PIN Pads, Automated Teller Machines)
Pay Television
Telecommunications

Features & Benefits

Easily Develop Smart Card Applications Using EMV Certified Library and 8051 Microcontroller
2-Line LCD Screen for User Interface
Two Card Sockets for Interfacing with Standard Chip Cards
Card and Microcontroller Interface Pins Brought Out to Headers for I/O Expansion or Debugging
Pushbuttons for Reset, Interrupt, and Self-Destruct Functions
Level-Shifted RS-232 Interface
Included Board Schematics Provide a Convenient Reference Design
