DS4100H

100MHz HCSL Clock Oscillator

Only Oscillator Module That Provides a Direct 100MHz HCSL Output

Viewing:

Overview

100MHz Output Frequency
3.3V ±5% Operating Voltage
HCSL Output
Phase Jitter (RMS): 0.9ps Typical
±39ppm Frequency Stability Over Voltage, Temperature, 10 Years of Aging
Output-Enable (OE) Control Input
5mm x 3.2mm x 1.49mm Ceramic Package (LCCC)
Pb Free/RoHS Compliant

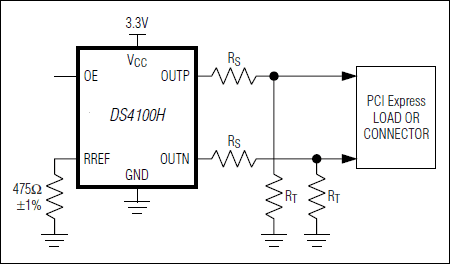

The DS4100H is a low-jitter 100MHz clock oscillator with a high-speed current steering logic (HCSL) output. It combines an AT-cut crystal, an oscillator, and a low-noise phase-locked loop (PLL) in a 5mm by 3.2mm ceramic package. Typical phase jitter is 0.9ps_RMS from 12kHz to 20MHz. The device operates from a single +3.3V supply.

Applications

PCI Express®

Documentation

Data Sheet 1

DS4100H: 100MHz HCSL Clock Oscillator Data Sheet (Rev.1) 04/04/2008

Reliability Data 1

DS4100H Reliability Data 01/12/2023

This is the most up-to-date revision of the Data Sheet.
