DS1091L

Automotive Temperature Range Spread-Spectrum EconOscillator™

Show More showmore-icon

Industry's Only 3V All-Silicon Center Spread Clock Generator to Reduce EMI in the Automotive Temperature Range

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.3)
Documentation View All Documentation
Part Models 24
1ku List Price Starting From $1.08
Features
  • Spread-Spectrum Clock Output from 130kHz to 66.6MHz
  • -40°C to +125°C Operating Temperature Range
  • ±1.75% Accuracy Across Temperature and Voltage
  • Factory Trimmed
  • Center-Dithered (DS1091LUA) or Down-Dithered (DS1091LUB) Spread-Spectrum Output
  • Pin-Selectable Center-Dither Magnitude of 0%, ±1%, ±2%, or ±4%
  • Pin-Selectable Down-Dither Magnitude of 0%, -2%, -4%, or -8%
  • Pin-Selectable Dither Rate
  • 3.0V to 3.6V Supply Operation
  • Lead-Free, 8-Pin µMAX Package

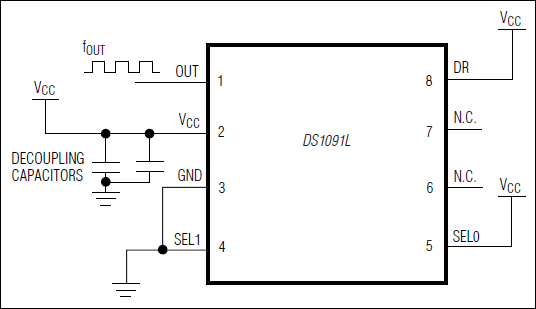

Additional Details
show more Icon

The DS1091L is a low-cost clock generator that is factory-trimmed to output frequencies from 130kHz to 66.6MHz with a nominal accuracy of ±0.25%. The device can also produce a center- or down-dithered spread-spectrum output with pin-selectable dither magnitude and rate. Assembled in an 8-pin µMAX® package, the DS1091L is designed to operate with a 3.0V to 3.6V power supply over the automotive temperature range (-40°C to +125°C).

Applications

  • Automotive Infotainment
  • Industrial Control
  • LCD Displays
  • POS Terminals
  • Printers
Show More Arrow image
